  • Dayton Audio DMPC-100 100uF 250V Polypropylene Capacitor

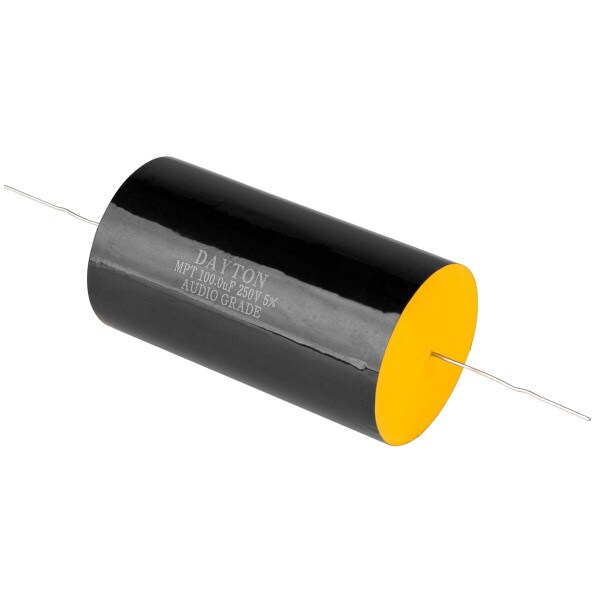

Dayton Audio DMPC-100 100uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-447

Dayton Audio DMPC-100 100uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-447
Model: DMPC-100
Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications.
Key Features
  • 250 VDC rating
  • 5% tolerance
  • High purity
  • High current capacity
  • Specially designed for crossovers
  • Dimensions: 51 mm x 75 mm
Your Price: $29.98
MSRP: $54.99
Save $25.01 (45%)
Bulk Pricing
Quantity:Qty: 1-9 $29.98/ea
Quantity:Qty: 10+$26.98/ea
Ships next business day. Details

123In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio DMPC-100 100uF 250V Polypropylene Capacitor

Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications. They are ideal for use in loudspeaker crossover networks, or for by-passing large value non-polarized electrolytics. Also a good choice as coupling capacitors in the signal path of audio power amplifiers and preamplifiers. Large values are great for 3-way speaker designs.

Specifications:
• Value: 100.0 µF
• Rated: 250 VDC
• Tolerance: ±5%
• Dissipation Factor: Max 0.001 (0.1%) @ 1 KHz
• Operating Range: -55°C to 105°C
• Dielectric Strength: 150%
• Insulation Resistance: 10,000 M? x µF
• Life Test: 1,000 hours @ 85°C, 150% rated voltage
• Dimensions: 51 mm Dia. x 75 mm L.

Product Details

BrandDayton Audio
ModelDMPC-100
Part Number027-447
UPC844632016356
Unit of MeasureEach
Weight0.25

Product Specifications

Capacitance100 uF
Tolerance5%
Voltage Rating250V
