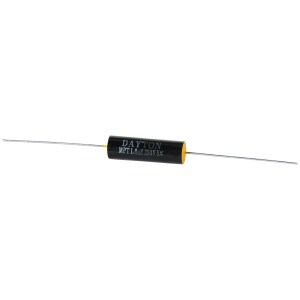

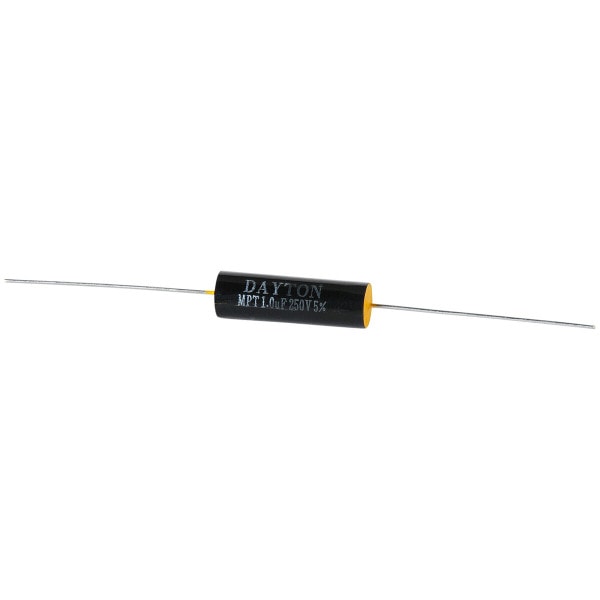

Dayton Audio DMPC-1.0 1.0uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-410

Dayton Audio DMPC-1.0 1.0uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-410
Model: DMPC-1.0
Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications.
Key Features
  • 250 VDC
  • 5% tolerance
  • High purity
  • High current capacity
  • Specially designed for crossovers
  • Dimensions: 10 mm x 30 mm
Similar items that may interest you:
Your Price: $0.69
MSRP: $2.99
Save $2.30 (77%)
Bulk Pricing
Quantity:Qty: 1-9 $0.69/ea
Quantity:Qty: 10+$0.62/ea

Back-Ordered

Estimated back in stock 4/18/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio DMPC-1.0 1.0uF 250V Polypropylene Capacitor

Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications. They are ideal for use in loudspeaker crossover networks, or for by-passing large value non-polarized electrolytics. Also a good choice as coupling capacitors in the signal path of audio power amplifiers and preamplifiers.

Specifications:
• Value: 1.0 µF
• Rated: 250 VDC
• Tolerance: ±5%
• Dissipation Factor: Max 0.001 (0.1%) @ 1 KHz
• Operating Range: -55°C to 105°C
• Dielectric Strength: 150%
• Insulation Resistance: 10,000 M? x µF
• Life Test: 1,000 hours @ 85°C, 150% rated voltage
• Dimensions: 10 mm Dia. x 30 mm L.

Product Details

BrandDayton Audio
ModelDMPC-1.0
Part Number027-410
UPC844632013713
Unit of MeasureEach
Weight0.005

Product Specifications

Capacitance1.0 uF
Tolerance5%
Voltage Rating250V
