  • Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor

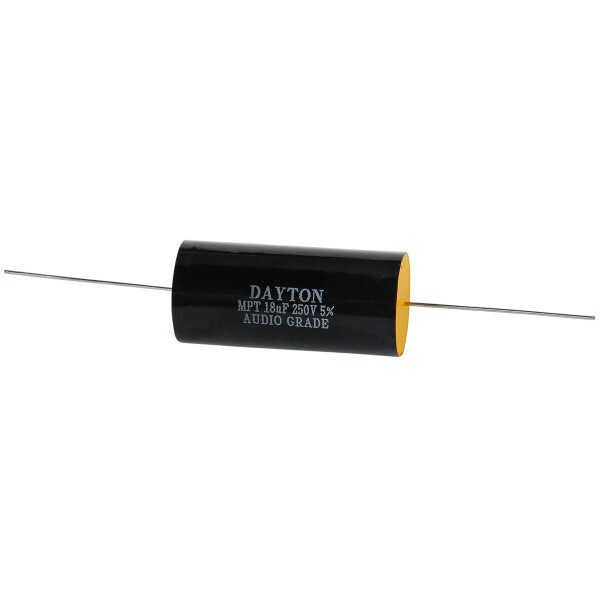

Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-434

Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor

Dayton Audio
Part #027-434
Model: DMPC-18
Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications.
Key Features
  • 250 VDC
  • 5% tolerance
  • High purity
  • High current capacity
  • Specially designed for crossovers
  • Dimensions: 26 mm x 55 mm
Your Price: $4.59
MSRP: $11.99
Save $7.40 (62%)
Bulk Pricing
Quantity:Qty: 1-9 $4.59/ea
Quantity:Qty: 10+$4.13/ea
Ships next business day. Details

274In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio DMPC-18 18uF 250V Polypropylene Capacitor

Make the Dayton Audio line of metallized polypropylene capacitors your standard choice for all of your loudspeaker projects! The same high quality as the competing brands ... but at a much lower price. They are suitable for a wide range of applications. They are ideal for use in loudspeaker crossover networks, or for by-passing large value non-polarized electrolytics. Also a good choice as coupling capacitors in the signal path of audio power amplifiers and preamplifiers.

Specifications:
• Value: 18.0 µF
• Rated: 250 VDC
• Tolerance: ±5%
• Dissipation Factor: Max 0.001 (0.1%) @ 1 KHz
• Operating Range: -55°C to 105°C
• Dielectric Strength: 150%
• Insulation Resistance: 10,000 M? x µF
• Life Test: 1,000 hours @ 85°C, 150% rated voltage
• Dimensions: 26 mm Dia. x 55 mm L.

Product Details

BrandDayton Audio
ModelDMPC-18
Part Number027-434
UPC844632013836
Unit of MeasureEach
Weight0.12

Product Specifications

Capacitance18 uF
Tolerance5%
Voltage Rating250V
