Dayton Audio DC250-8 10" Classic Woofer

Name: Dayton Audio DC250-8 10" Classic Woofer
Brand: Dayton Audio
SKU: 295-315
Price: 44.98 USD
Availability: InStock
Rating: 4.6 (197 reviews)

Read 197 Reviews | 483 Questions, 1123 Answers or

Dayton Audio

Part #295-315

Dayton Audio DC250-8 10" Classic Woofer

Dayton Audio

Part #295-315

Model: DC250-8

Read 197 Reviews | 483 Questions, 1123 Answers or

5-1/4 in. 8 Ohm 5-1/4 in. 8 Ohm 5-1/4 in. 4 Ohm 6-1/2 in. 4 Ohm 6-1/2 in. 8 Ohm 8 in.10 in.12 in.15 in.

Choose the Dayton Audio DC250-8 Classic Series 10" woofer for use as a great replacement speaker for large format 2-way and 3-way, ported or sealed loudspeakers.

Key Features

Best price/performance value available anywhere
Excellent low frequency capabilities
Rubber surround and vented pole piece

Frequently Bought Together

This Product: Dayton Audio DC250-8 10" Classic Woofer	$44.98
Dayton Audio DC200-8 8" Classic Woofer	$34.98
Parts Express Heavy Duty Speaker Grill Guides 12 Pair	$3.98
Parts Express Speaker Crossover 3-Way 8 Ohm 800/5,000 Hz 100W	$22.98

Total Price: $106.92

This Product:Dayton Audio DC250-8 10" Classic Woofer$44.98

Dayton Audio DC200-8 8" Classic Woofer$34.98

Parts Express Heavy Duty Speaker Grill Guides 12 Pair$3.98

Parts Express Speaker Crossover 3-Way 8 Ohm 800/5,000 Hz 100W$22.98

4 ItemsTotal Price: $106.92

Overview

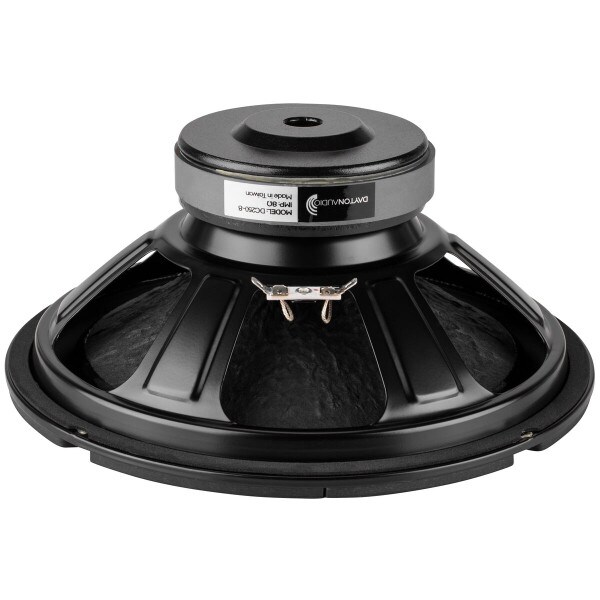

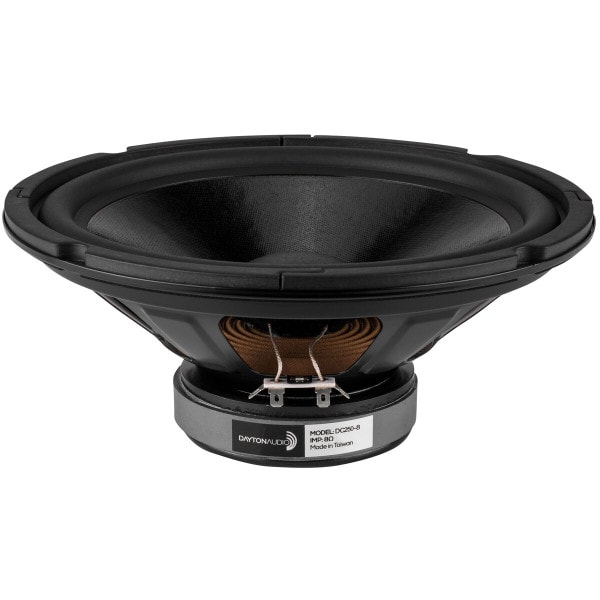

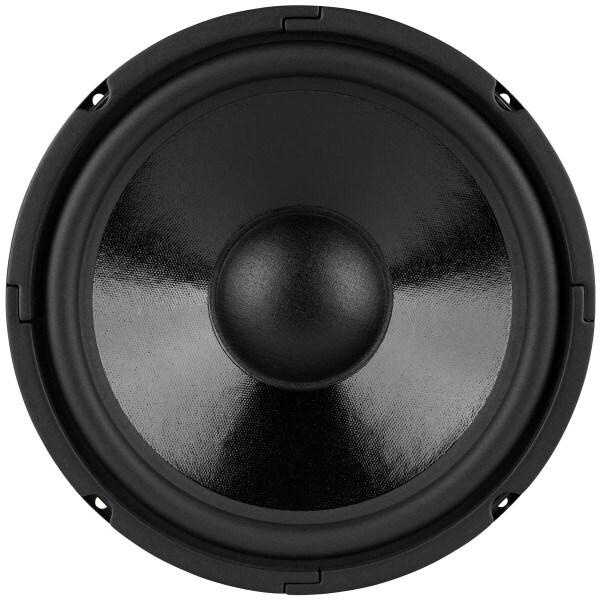

Dayton Audio DC250-8 10" Classic Woofer

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC250-8 10" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.38 allows the DC250-8 to work well in both sealed and ported speaker enclosures.

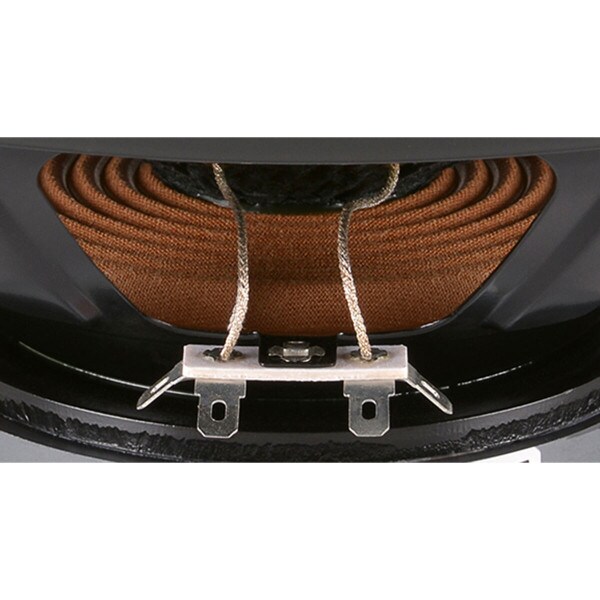

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Product Details
Brand	Dayton Audio
Model	DC250-8
Part Number	295-315
UPC	844632000263
Unit of Measure	Each
Weight	4.68

Product Specifications
Nominal Diameter	10"
Bolt Circle Diameter	9.67
Power Handling (RMS)	70 Watts
Power Handling (MAX)	140 Watts
Impedance	8Ω
Frequency Response	25 to 2,500Hz
Sensitivity	88.4dB 2.83V/1m
Voice Coil Diameter	1.38"

Thiele-Small Parameters
Resonant Frequency (Fs)	24.9Hz
DC Resistance (Re)	6.6Ω
Voice Coil Inductance (Le)	2.63mH
Mechanical Q (Qms)	3.16
Electromagnetic Q (Qes)	0.44
Total Q (Qts)	0.38
Compliance Equivalent Volume (Vas)	3.67ft³
Mechanical Compliance of Suspension (Cms)	0.61mm/N
BL Product (BL)	12.64T·m
Diaphragm Mass Inc. Airload (Mms)	67.5g
Maximum Linear Excursion (Xmax)	4.5mm
Surface Area of Cone (Sd)	343.1cm²

Materials of Construction
Cone Material	Treated Paper
Surround Material	Rubber
Voice Coil Wire Material	Copper
Voice Coil Former	Aluminum
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	10.08"
Baffle Cutout Diameter	9.21"
Depth	4.44"
# Mounting Holes	4

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.7ft³
Sealed F3	60Hz
Vented Volume	2.5ft³
Vented F3	29Hz

Quantity:Qty: 1-3	$44.98/ea
Quantity:Qty: 4+	$40.48/ea
