GRS 10PF-8 10" Paper Cone Foam Surround Woofer

GRS
Part #292-410

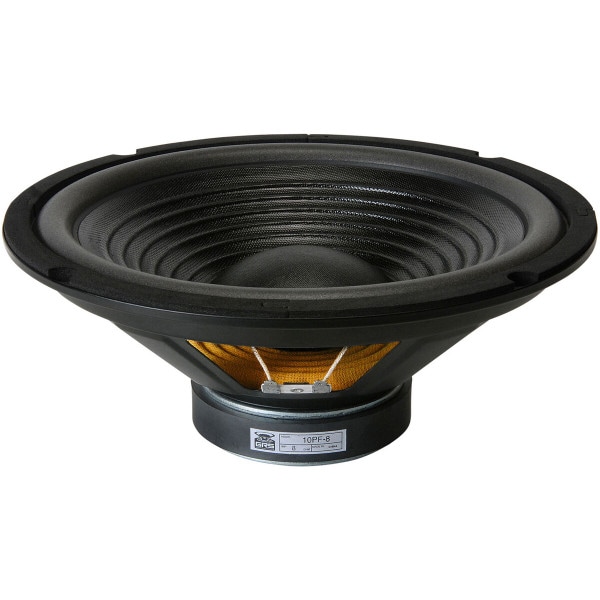

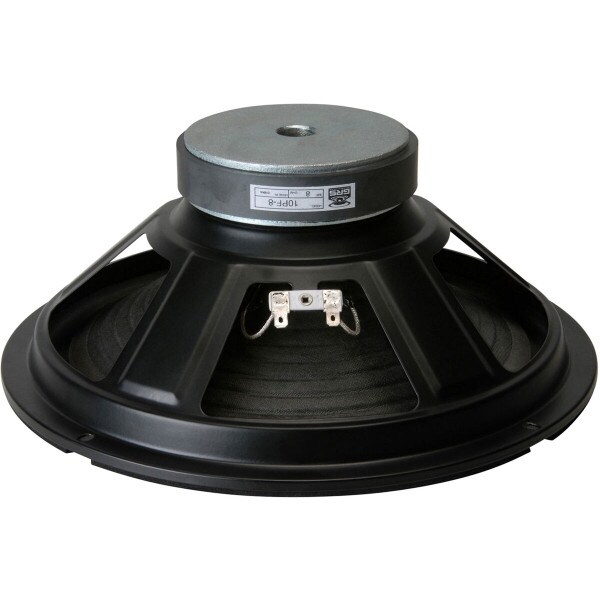

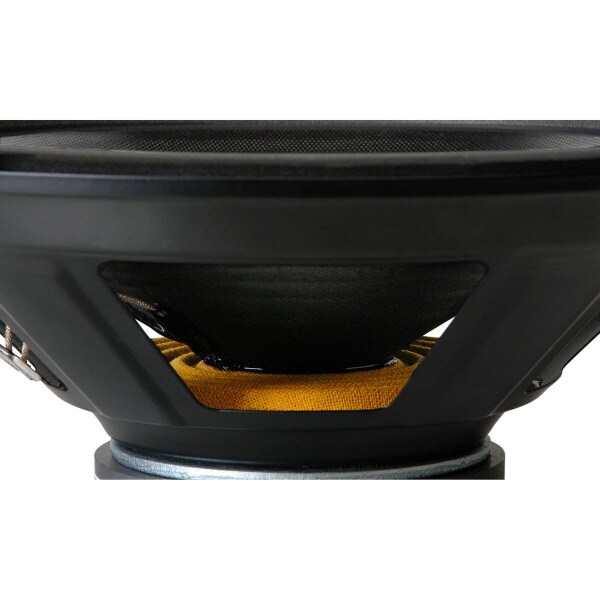

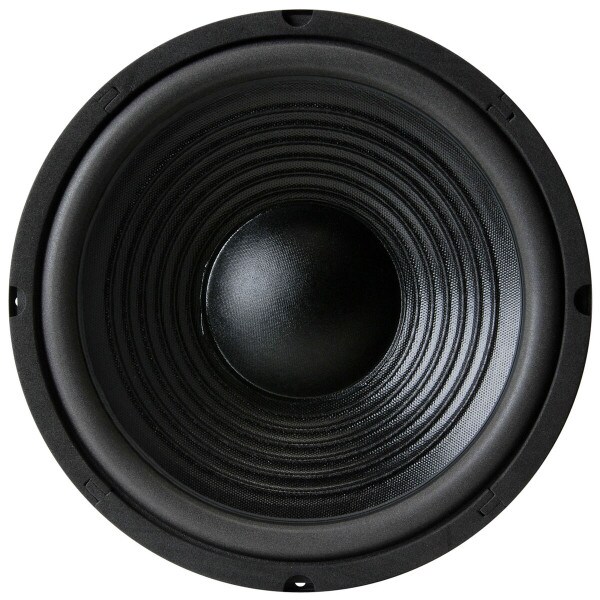

GRS 10PF-8 10" Paper Cone Foam Surround Woofer

GRS
Part #292-410
Model: 10PF-8
GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application.
Key Features
  • Perfect for use in sealed-box home theater and music systems
  • Poly-laminated paper cone, treated foam surround, and polymer dust cap
  • Smooth frequency response with minimal cone breakup
Your Price: $16.49
MSRP: $21.99
Save $5.50 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $16.49/ea
Quantity:Qty: 4+$14.84/ea
Order in the next 1 hr 48 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 10PF-8 10" Paper Cone Foam Surround Woofer

GRS 10PF-8 10" paper cone woofers are ideal replacement speakers for use in sealed-box loudspeaker systems in almost any application. Thanks to their carefully optimized parameters, GRS 10PF-8 10" poly-laminated paper cone woofers offer a high degree of compatibility when used as replacement speakers—they also provide excellent performance in new projects, too.

Product Details

BrandGRS
Model10PF-8
Part Number292-410
UPC844632088483
Unit of MeasureEach
Weight3.35

Product Specifications

Nominal Diameter10"
Power Handling (RMS)110 Watts
Power Handling (MAX)220 Watts
Impedance8Ω
Frequency Response40 to 5,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)5.3
Electromagnetic Q (Qes)1.57
Total Q (Qts)1.21
Compliance Equivalent Volume (Vas)2.08ft³
Mechanical Compliance of Suspension (Cms)0.35mm/N
BL Product (BL)6.8T·m
Diaphragm Mass Inc. Airload (Mms)35.7g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)344.7cm²

Materials of Construction

Cone MaterialTreated Paper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10"
Baffle Cutout Diameter9.25"
Depth4.125"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F347.5Hz
