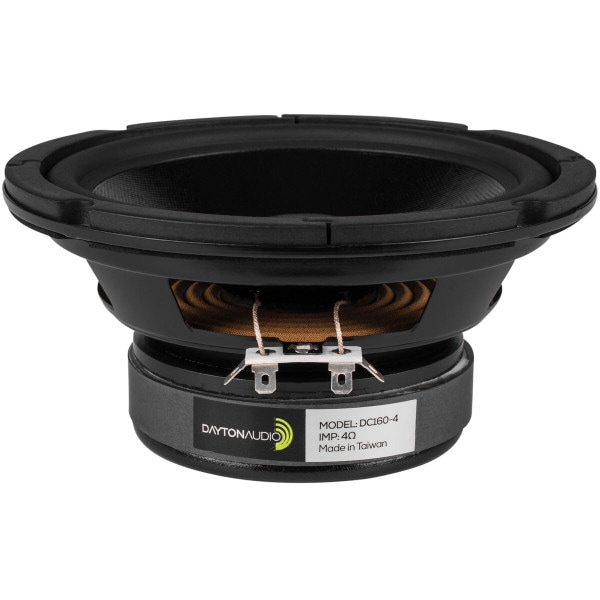

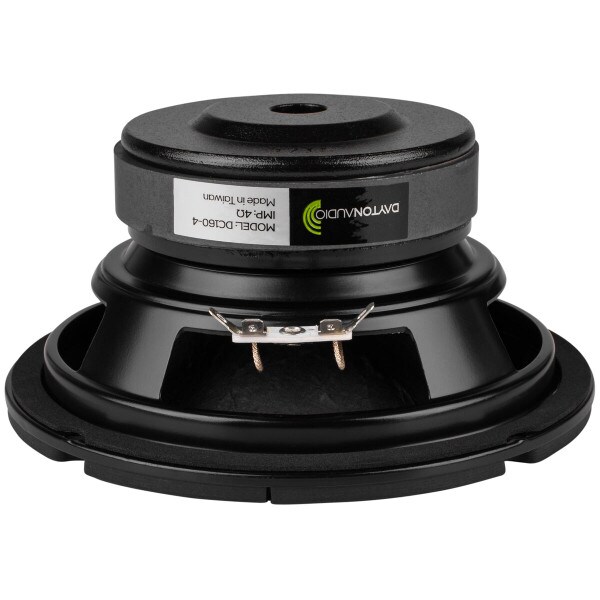

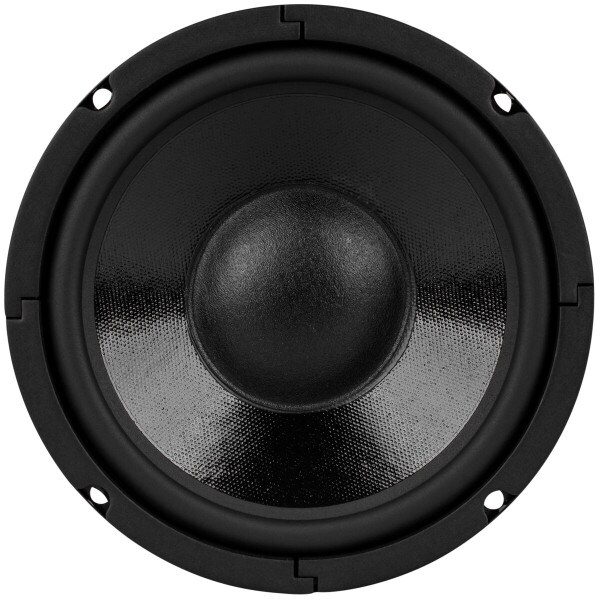

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

Dayton Audio
Part #295-309

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

Dayton Audio
Part #295-309
Model: DC160-4
Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.
Key Features
  • Sturdy, easy-to-countersink round steel frame
  • 4 ohm impedance offers alternative load possibilities
  • Coated paper cone provides smooth response and reduced cone breakup
  • Aluminum VC former and vented pole piece for high power handling
  • Large diameter flat spider and good Xmax for clean bass
  • Suitable for sealed or vented enclosures
Your Price: $29.98
MSRP: $42.99
Save $13.01 (30%)
Bulk Pricing
Quantity:Qty: 1-3 $29.98/ea
Quantity:Qty: 4+$27.97/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DC160-4 6-1/2" Classic Woofer Speaker

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelDC160-4
Part Number295-309
UPC844632093999
Unit of MeasureEach
Weight3.3

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.16
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance4Ω
Frequency Response30 to 4,000Hz
Sensitivity88.3dB 2.83V/1m
Voice Coil Diameter1.4"

Thiele-Small Parameters

Resonant Frequency (Fs)39Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.99mH
Mechanical Q (Qms)3.31
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.53ft³
Mechanical Compliance of Suspension (Cms)0.57mm/N
BL Product (BL)7.02T·m
Diaphragm Mass Inc. Airload (Mms)29.2g
Maximum Linear Excursion (Xmax)3.4mm
Surface Area of Cone (Sd)136.8cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.69"
Depth3.24"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F383Hz
Vented Volume0.57ft³
Vented F337Hz
