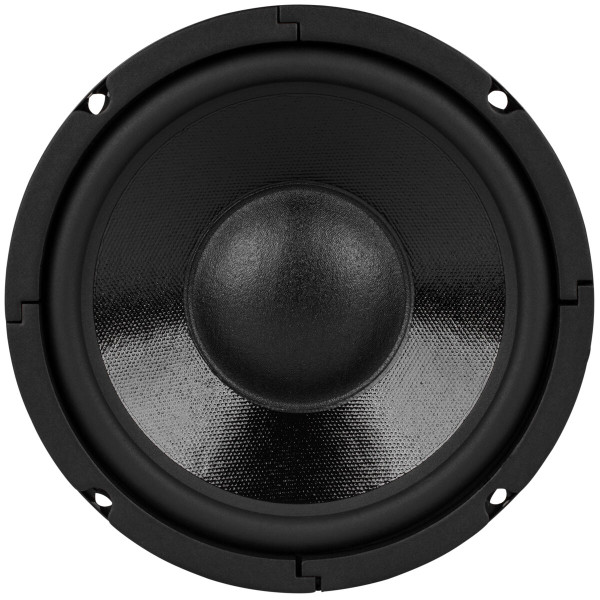

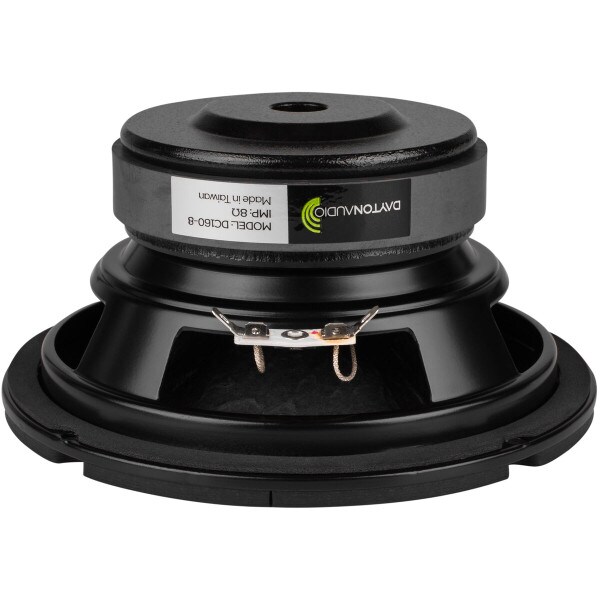

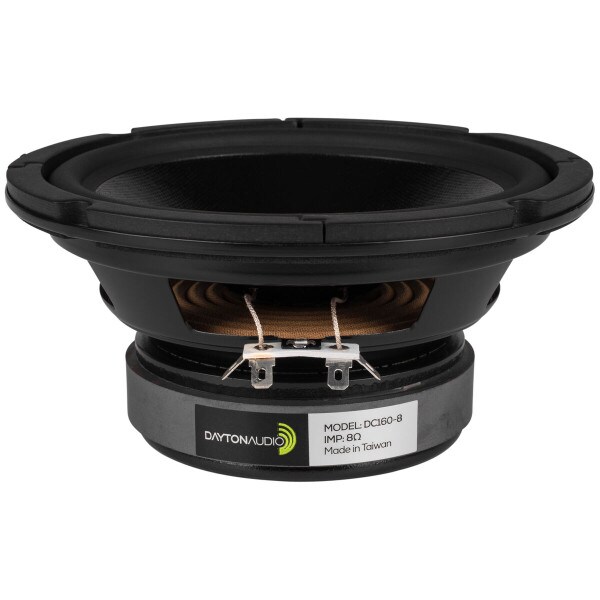

Dayton Audio DC160-8 6-1/2" Classic Woofer

Name: Dayton Audio DC160-8 6-1/2" Classic Woofer
Brand: Dayton Audio
SKU: 295-305
Price: 29.98 USD
Availability: OutOfStock
Rating: 4.6 (205 reviews)

Read 205 Reviews | 460 Questions, 1083 Answers or

Dayton Audio

Part #295-305

Dayton Audio DC160-8 6-1/2" Classic Woofer

Dayton Audio

Part #295-305

Model: DC160-8

Read 205 Reviews | 460 Questions, 1083 Answers or

5-1/4 in. 8 Ohm 5-1/4 in. 8 Ohm 5-1/4 in. 4 Ohm 6-1/2 in. 4 Ohm 6-1/2 in. 8 Ohm 8 in.10 in.12 in.15 in.

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

Key Features

Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer!
Smooth frequency response up to 2 kHz and great bass response
Rubber surround, aluminum voice coil, and extended bump plate
Low 34 Hz free-air resonance

Frequently Bought Together

This Product: Dayton Audio DC160-8 6-1/2" Classic Woofer	$29.98
Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter	$22.49
Round Pressfit Speaker Wire Terminal Cup Spring Type	$0.92
Parts Express Speaker Grill Cloth Black Yard 70" Wide	$9.98

Total Price: $63.37

This Product:Dayton Audio DC160-8 6-1/2" Classic Woofer$29.98

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter$22.49

Round Pressfit Speaker Wire Terminal Cup Spring Type$0.92

Parts Express Speaker Grill Cloth Black Yard 70" Wide$9.98

4 ItemsTotal Price: $63.37

Overview

Dayton Audio DC160-8 6-1/2" Classic Woofer

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you.

A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.

Product Details
Brand	Dayton Audio
Model	DC160-8
Part Number	295-305
UPC	844632000232
Unit of Measure	Each
Weight	3.3

Product Specifications
Nominal Diameter	6-1/2"
Bolt Circle Diameter	6.16
Power Handling (RMS)	50 Watts
Power Handling (MAX)	100 Watts
Impedance	8Ω
Frequency Response	30 to 4,000Hz
Sensitivity	86.1dB 2.83V/1m
Voice Coil Diameter	1.38"

Thiele-Small Parameters
Resonant Frequency (Fs)	35.7Hz
DC Resistance (Re)	6.6Ω
Voice Coil Inductance (Le)	2.26mH
Mechanical Q (Qms)	3.46
Electromagnetic Q (Qes)	0.38
Total Q (Qts)	0.34
Compliance Equivalent Volume (Vas)	0.63ft³
Mechanical Compliance of Suspension (Cms)	0.68mm/N
BL Product (BL)	10.7T·m
Diaphragm Mass Inc. Airload (Mms)	29.3g
Maximum Linear Excursion (Xmax)	3.2mm
Surface Area of Cone (Sd)	134.8cm²

Materials of Construction
Cone Material	Treated Paper
Surround Material	Rubber
Voice Coil Wire Material	Copper
Voice Coil Former	Aluminum
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	6.5"
Baffle Cutout Diameter	5.69"
Depth	3.24"
# Mounting Holes	4

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.25ft³
Sealed F3	98Hz
Vented Volume	0.43ft³
Vented F3	43Hz
