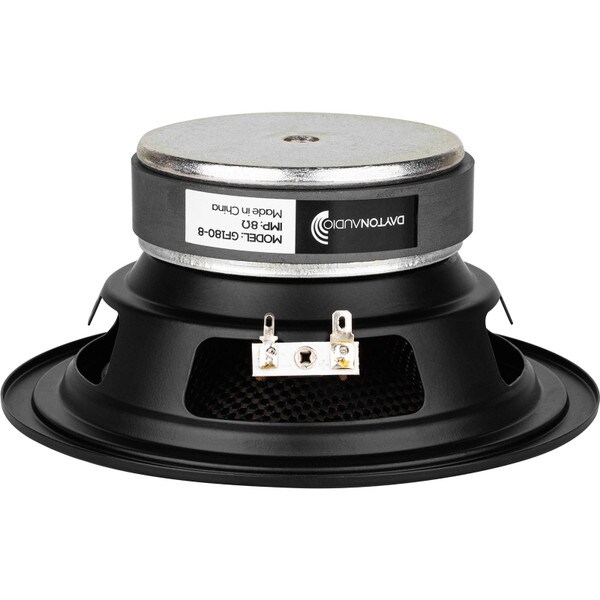

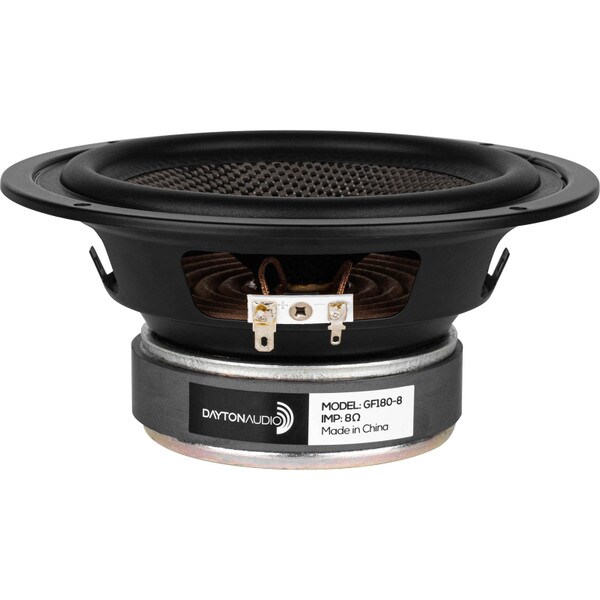

Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

Dayton Audio
Part #295-418

Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

Dayton Audio
Part #295-418
Model: GF180-8
Dayton Audio’s GF180-8 6-1/2” glass fiber cone woofer is built to produce powerful bass with smooth midrange response. The woven fiberglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs.
Key Features

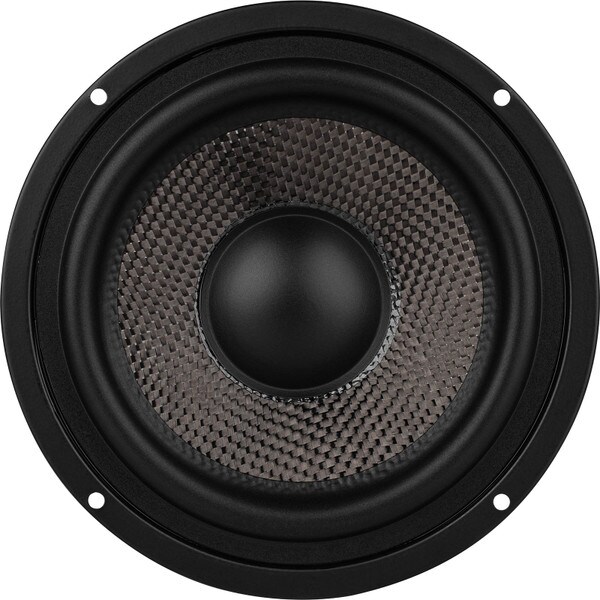

  • Woven fiberglass cone lowers resonances for smooth response and natural sound
  • Rubber surround helps damp the outside edge of the cone improving high frequency response
  • 4-layer voice coil on an aluminum former provides excellent heat dissipation
  • Vented pole piece releases air trapped under the dustcap for quiet operation
  • Low-profile frame minimizes diffraction making these drivers suitable for surface mount applications
Similar items that may interest you:
Your Price: $19.98
MSRP: $36.99
Save $17.01 (46%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio GF180-8 6-1/2" Glass Fiber Cone Woofer 8 Ohm

With flat response to 4,000 Hz and excellent low frequency extension, the GF180-8 6-1/2” glass fiber cone woofer from Dayton Audio is ideal for use in low cost 2-ways speaker designs. The naturally damped woven fiberglass cone is driven by a 4-layer voice coil wound on an aluminum former. This driver is a great choice for your next bookshelf speaker, multiple driver tower, or even portable sound systems.

Product Details

BrandDayton Audio
ModelGF180-8
Part Number295-418
UPC848791007927
Unit of MeasureEach
Weight3.6

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance
Frequency Response50 to 5,000Hz
Sensitivity87.9dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)53Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.9mH
Mechanical Q (Qms)3.07
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)0.55ft³
Mechanical Compliance of Suspension (Cms)0.65mm/N
BL Product (BL)7.9T·m
Diaphragm Mass Inc. Airload (Mms)13.9g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)130.2cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7"
Baffle Cutout Diameter5.67"
Depth3.19"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F385Hz
Vented Volume0.9ft³
Vented F340Hz
