Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter

Dayton Audio
Part #275-070

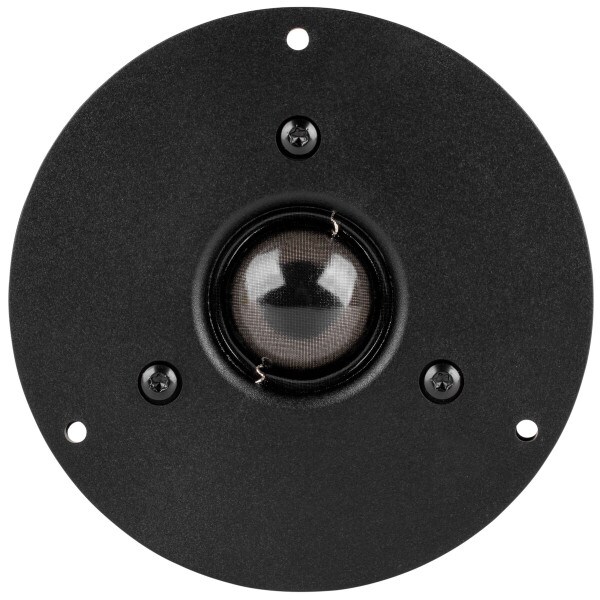

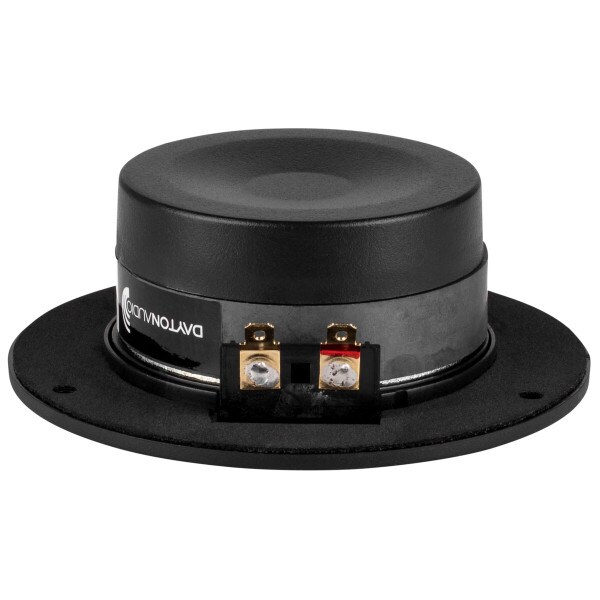

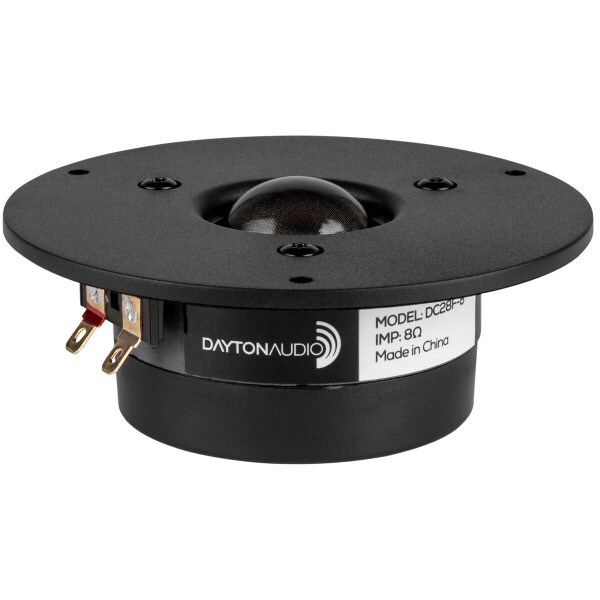

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter

Dayton Audio
Part #275-070
Model: DC28F-8
Smooth-as-silk sound at an affordable price makes the Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter an ideal choice for most home DIY projects.
Key Features
  • Treated silk dome for smooth frequency response
  • Damped rear chambers for reduced resonance
  • Ferrofluid cooled voice coil for outstanding power handling and better damping
  • Ideal replacement for Dayton Audio DC28FS-8 1-1/8" Silk Dome Shielded Tweeter
Similar items that may interest you:
See all items in Tweeters
Your Price: $22.49
MSRP: $29.99
Save $7.50 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $22.49/ea
Quantity:Qty: 4+$20.24/ea
Order in the next 4 hr 9 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter

The Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter is a great option for DIY speaker enthusiasts, as it offers amazing performance at an unbelievable price point. Featuring treated silk dome, this tweeter delivers smooth sound, while the damped rear chamber diminishes the resonance for better clarity. Thanks to the Ferrofluid cooled voice coil, this tweeter has excellent capabilities to handle high power. Replacement diaphragm 275-072

Product Details

BrandDayton Audio
ModelDC28F-8
Part Number275-070
UPC844632014130
Unit of MeasureEach
Weight1.25

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.91
Tweeter TypeSoft Dome
Power Handling (RMS)50 Watts
Impedance8Ω
Frequency Response1,300 to 20,000Hz
Sensitivity89dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)834Hz
DC Resistance (Re)5.4Ω
Voice Coil Inductance (Le)0.09mH
Mechanical Q (Qms)0.81
Electromagnetic Q (Qes)1.33
Total Q (Qts)0.5

Mounting Information

Overall Outside Diameter4.33"
Depth1.53"
