Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker

Dayton Audio
Part #295-304

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker

Dayton Audio
Part #295-304
Model: DC130B-8

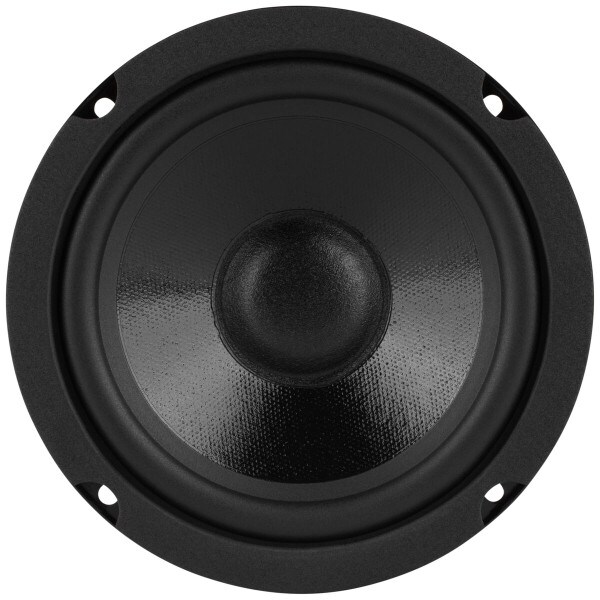

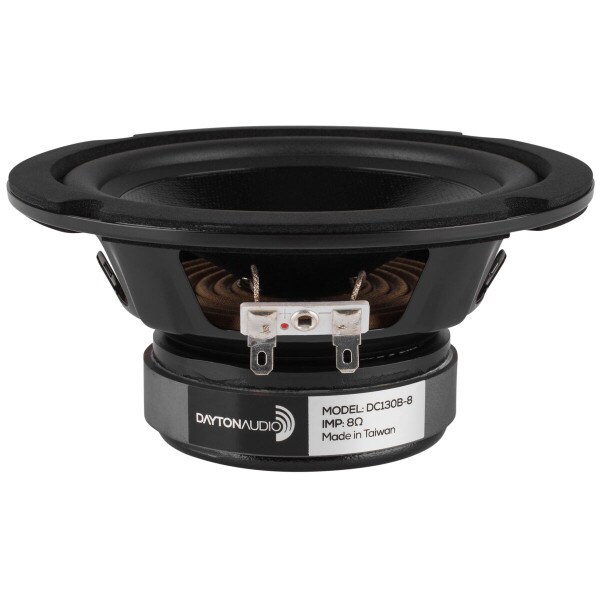

Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines.
Key Features
  • Sturdy, easy-to-countersink round steel frame
  • Coated paper cone provides smooth response and reduced cone breakup
  • Aluminum voice coil former for high power handling
  • Large diameter flat spider and good Xmax for clean bass
  • Suitable for sealed or vented enclosures
Your Price: $26.98
MSRP: $33.99
Save $7.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $26.98/ea
Quantity:Qty: 4+$24.28/ea
Order in the next 2 hr 48 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio DC130B-8 5-1/4" Classic Woofer Speaker

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.

Product Details

BrandDayton Audio
ModelDC130B-8
Part Number295-304
UPC844632093975
Unit of MeasureEach
Weight2.05

Product Specifications

Nominal Diameter5-1/4"
Bolt Circle Diameter5.24
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response50 to 5,000Hz
Sensitivity89.1dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)52.5Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.77mH
Mechanical Q (Qms)1.85
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.43ft³
Mechanical Compliance of Suspension (Cms)1.01mm/N
BL Product (BL)5.94T·m
Diaphragm Mass Inc. Airload (Mms)9.1g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)91.6cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.71"
Baffle Cutout Diameter4.72"
Depth2.67"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.12ft³
Sealed F3126Hz
Vented Volume0.31ft³
Vented F362Hz
