HiVi M6N 6" Aluminum/Magnesium Midbass

HiVi
Part #297-441

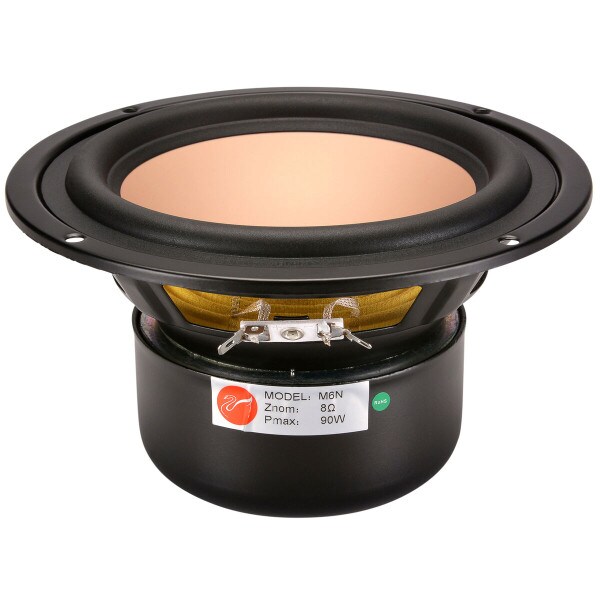

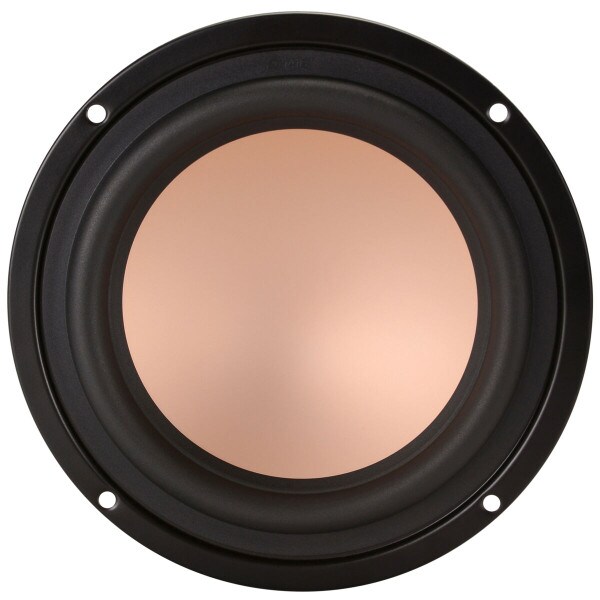

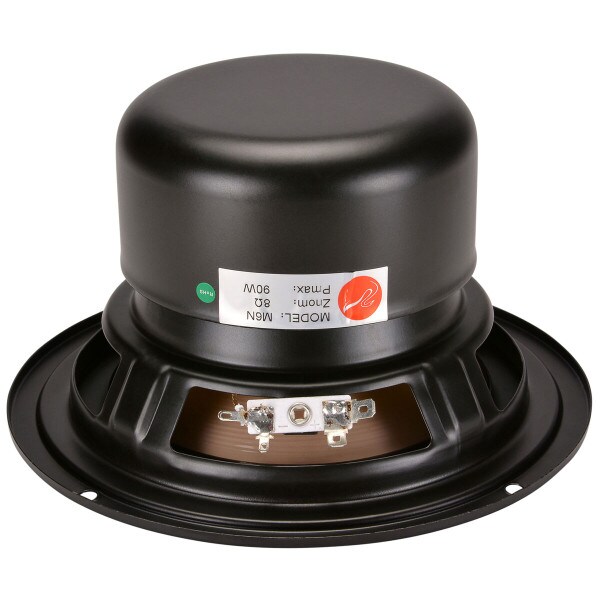

HiVi M6N 6" Aluminum/Magnesium Midbass

HiVi
Part #297-441
Model: M6N
A shielded magnet structure allows the HiVi M6N to be incorporated easily into audio/video speaker applications.
Key Features
  • Symmetrical Motor Drive (SMD) reduces distortion
  • Advanced magnesium/aluminum alloy cone provides optimal stiffness and damping
  • Hi-temp voice coil and former for high power handling
  • Magnetically shielded
  • Dynamic, accurate performance
Your Price: $35.89
MSRP: $53.99
Save $18.10 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $35.89/ea
Quantity:Qty: 4-9 $33.79/ea
Quantity:Qty: 10+$31.49/ea
Order in the next 2 hr 54 min to ship today. Details

45In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi M6N 6" Aluminum/Magnesium Midbass

A shielded magnet structure allows the HiVi M6N to be incorporated easily into audio/video speaker applications. The driver may be used in a small closed box as a midrange unit in a 3-way system and the good extension (50 Hz) in a vented enclosure allows for use in a 2-way, two-driver or MTM configured system.

Product Details

BrandHiVi
ModelM6N
Part Number297-441
UPC844632022616
Unit of MeasureEach
Weight6.06

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter6.65
Power Handling (RMS)45 Watts
Power Handling (MAX)90 Watts
Impedance8Ω
Frequency Response46 to 8,000Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter0.98"

Thiele-Small Parameters

Resonant Frequency (Fs)46Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)4.69
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.77ft³
Mechanical Compliance of Suspension (Cms)0.871mm/N
BL Product (BL)7.8T·m
Diaphragm Mass Inc. Airload (Mms)13.6g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)133cm²

Materials of Construction

Cone MaterialAluminum / Magnesium
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7"
Baffle Cutout Diameter5.313"
Depth4.0625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.38ft³
Sealed F366.6Hz
Vented Volume0.75ft³
Vented F345.8Hz
