HiVi M4N-B 4" Damped Aluminum/Magnesium Cone Full-Range Driver

HiVi
Part #297-484

HiVi M4N-B 4" Damped Aluminum/Magnesium Cone Full-Range Driver

HiVi
Part #297-484
Model: M4N-B

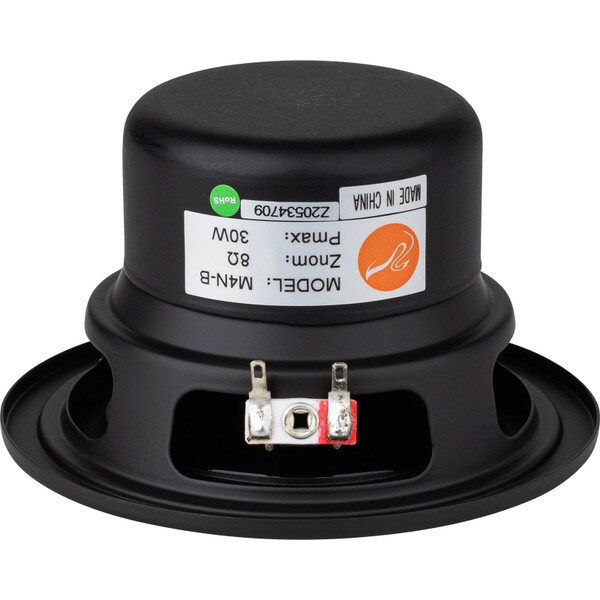

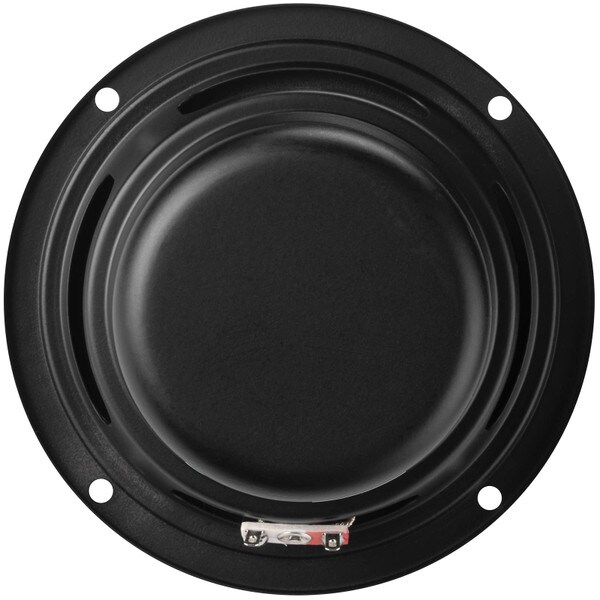

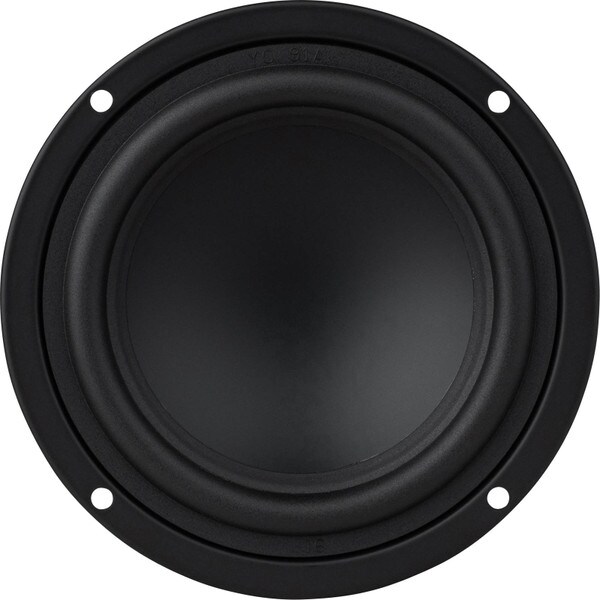

A shielded magnet structure allows the HiVi M4N-B 4" full-range speaker to be incorporated easily into audio/video applications.
Key Features
  • Gorgeous black magnesium-alloy cone
  • Great extension for a small driver
  • Similar sound as the B4N used in the popular Overnight Sensations bookshelf speakers
Your Price: $17.49
MSRP: $28.99
Save $11.50 (40%)
Bulk Pricing
Quantity:Qty: 1-3 $17.49/ea
Quantity:Qty: 4-9 $16.69/ea
Quantity:Qty: 10+$16.26/ea
Order in the next 2 hr 39 min to ship today. Details

12In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi M4N-B 4" Damped Aluminum/Magnesium Cone Full-Range Driver

A shielded magnet structure allows the HiVi M4N-B 4" full-range speaker to be incorporated easily into audio/video applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (70 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. Stamped steel frame, black magnesium/aluminum ally cone, optimized magnetic circuit, and high temperature CCAW voice coil.

Product Details

BrandHiVi
ModelM4N-B
Part Number297-484
UPC848864070629
Unit of MeasureEach
Weight1.35

Product Specifications

Nominal Diameter4"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response69 to 8,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter0.875"

Thiele-Small Parameters

Resonant Frequency (Fs)69Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)5.9
Electromagnetic Q (Qes)1.35
Total Q (Qts)1.08
Compliance Equivalent Volume (Vas)0.15ft³
Mechanical Compliance of Suspension (Cms)1.28mm/N
BL Product (BL)3.1T·m
Diaphragm Mass Inc. Airload (Mms)4.8g
Maximum Linear Excursion (Xmax)3mm

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.55"
Baffle Cutout Diameter3.938"
Depth2.55"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.32ft³
Sealed F364Hz
Vented Volume0.15ft³
Vented F360.8Hz
