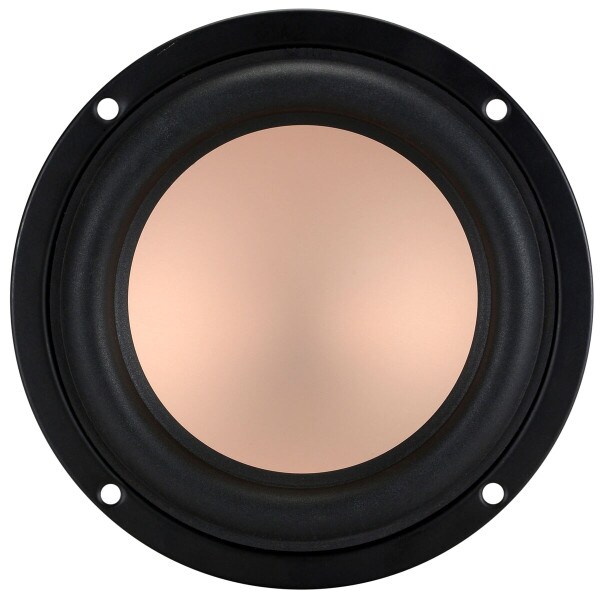

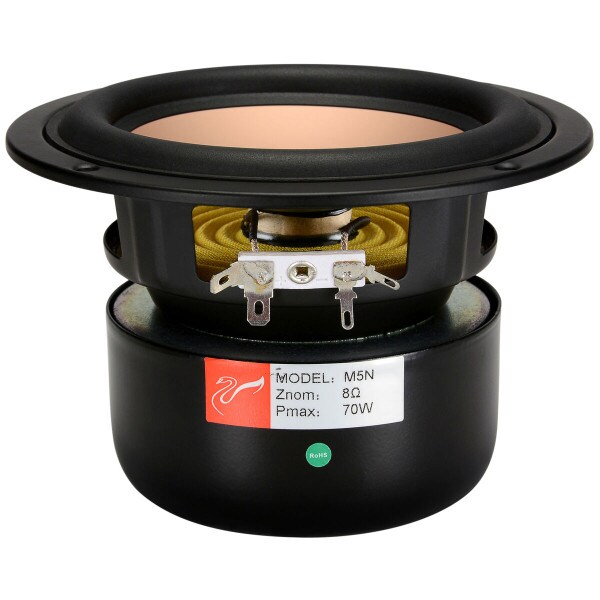

HiVi M5N 5" Aluminum / Magnesium Midbass

HiVi
Part #297-436

HiVi M5N 5" Aluminum / Magnesium Midbass

HiVi
Part #297-436
Model: M5N
A shielded magnet structure allows the HiVi M5N to be incorporated easily into audio/video speaker applications.
Key Features
  • Advanced magnesium/aluminum alloy cone
  • Symmetric Motor Drive (SMD) technology improves controllabilty and lowers distortion
  • Reinforced steel basket
  • Magnetically shielded
  • Smooth, extended response
Your Price: $22.49
MSRP: $34.99
Save $12.50 (36%)
Bulk Pricing
Quantity:Qty: 1-3 $22.49/ea
Quantity:Qty: 4-9 $20.24/ea
Quantity:Qty: 10+$19.12/ea
Ships next business day. Details

Only 4 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi M5N 5" Aluminum / Magnesium Midbass

A shielded magnet structure allows the HiVi M5N to be incorporated easily into audio/video speaker applications. The driver may be used in a small closed box as a midrange unit in a three-way system, and good extension (50 Hz) in a vented enclosure guarantees great performance in a two-way two-driver or MTM configured system. Recommended crossover frequency region for a two-way system design is 2-5 kHz.

Product Details

BrandHiVi
ModelM5N
Part Number297-436
UPC844632022609
Unit of MeasureEach
Weight3.3

Product Specifications

Nominal Diameter5"
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance8Ω
Frequency Response50 to 6,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)50Hz
DC Resistance (Re)6.5Ω
Mechanical Q (Qms)6.51
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.4ft³
Mechanical Compliance of Suspension (Cms)1.1mm/N
Diaphragm Mass Inc. Airload (Mms)10.7g
Maximum Linear Excursion (Xmax)2.7mm
Surface Area of Cone (Sd)87cm²

Materials of Construction

Cone MaterialAluminum / Magnesium
Voice Coil FormerKapton® / Polyimide
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.63"
Baffle Cutout Diameter4.94"
Depth4"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F380.6Hz
Vented Volume0.3ft³
Vented F357.7Hz
