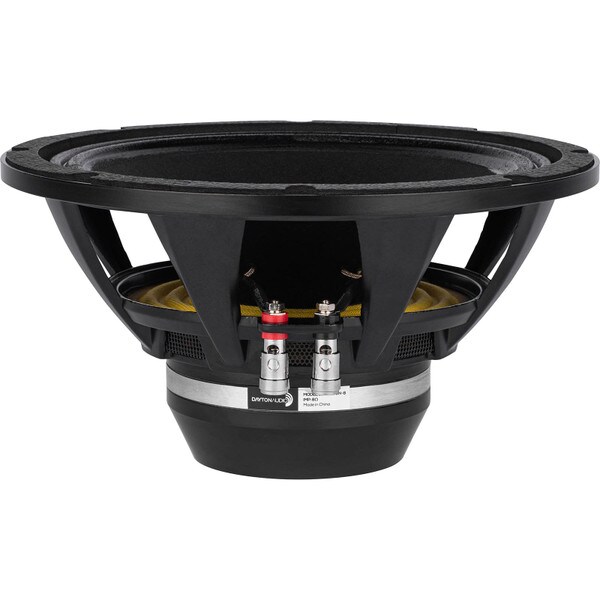

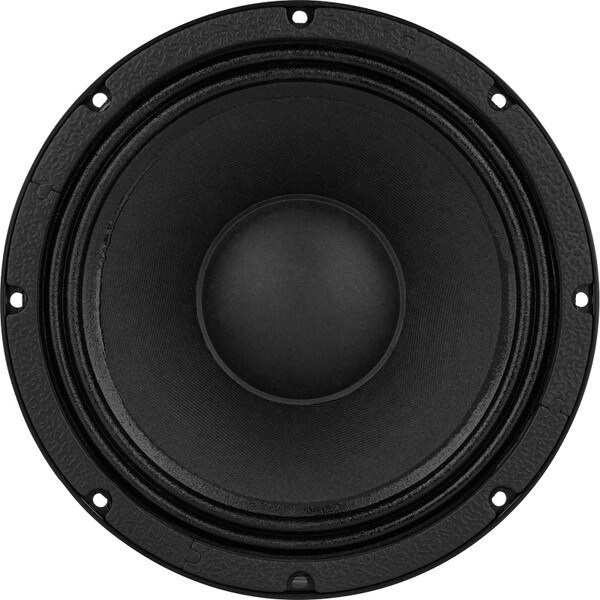

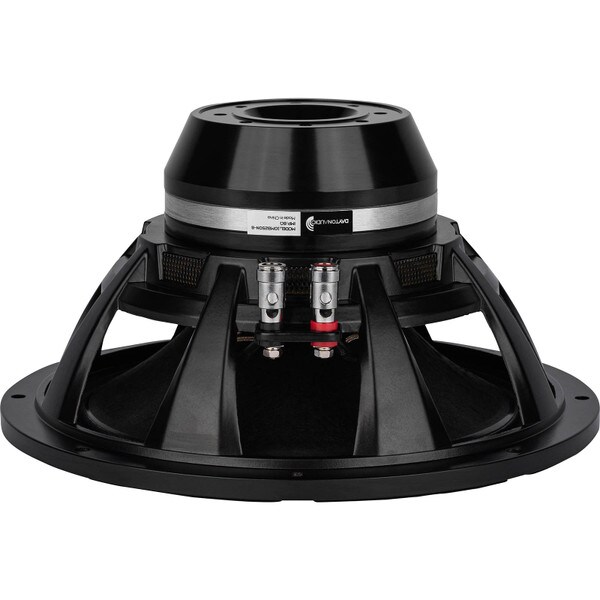

Dayton Audio Pro 10 in. 8 Ohm Neodymium Midbass Woofer Odeum 10N

Dayton Audio
Part #295-640

Dayton Audio Pro 10 in. 8 Ohm Neodymium Midbass Woofer Odeum 10N

Dayton Audio
Part #295-640
Model: 10MB250N-8
Live sound is back in business! Dayton Audio wants you to hit the road with confidence and maximize your profitability at your next gig. Dayton Audio is a worldwide leader in raw frame drivers. We are passionate audio enthusiasts with a vision to offer the best performance to price value in the industry. After extensive market research, vendor evaluation, and sample driver testing, we are proud to introduce to you the Dayton Audio ODEUM Series.
Key Features
  • Powerful neodymium motor for superior output.
  • Copper inductance cap for low distortion
  • Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch
  • 2.5” Inside/outside wound copper voice coil leads on fiberglass former lends solid power handling capability
  • Under spider and rear periphery venting allow for a cooler running voice coil
  • Low Qts means high damping and smaller boxes
  • With a Dayton Audio 5 year warranty, it’s more than a guarantee, it’s a promise. We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $110.48
+ FREE SHIPPING
MSRP: $209.99
Save $99.51 (47%)
Bulk Pricing
Order in the next 13 hr 36 min to ship today. Details

126In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Pro 10 in. 8 Ohm Neodymium Midbass Woofer Odeum 10N

Dayton Audio Pro 10 in. 8 Ohm Neodymium Midbass Woofer Odeum 10N

ode· um | \ ō-ˈdē-əm: An ancient Greek and Roman concert hall used for music and poetry.

Using the knowledge from decades of driver design and engineering, Dayton Audio is placing an emphasis on technical excellence, product reliability, and innovation with the Odeum Series of speaker components! The Odeum Series takes the stage with a new line of professional drivers made for any venue.

Key Specs:

  • Nominal Diameter: 10"
  • Power Handling (RMS): 250 Watts
  • Power Handling (MAX): 500 Watts
  • Impedance: 8 Ω
  • Frequency Response: 60Hz - 4.2kHz
  • Sensitivity: 96.5 dB 2.83V/1m
  • Voice Coil Diameter: 2.5"
  • Maximum Linear Excursion: 5.79mm

Frequency Response & Impedance

The Dayton Audio Apollo 10 has a response that matches a large number of horn drivers and tweeters due to its high efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the Apollo 10 makes it easy to pair up with your favorite compression driver without taxing your power amplifiers!

Dayton Audio Pro 10

The Dayton Audio Pro 10 is a 10" mid-bass woofer that is guaranteed to outperform the stock woofers in your PA system. A 250W power limit is achieved through the combination of a neodymium motor, a 2.5" voice coil with a fiberglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing!

A solution for every need

We feel we have hit the sweet spot in price and specs in the pro audio market with this workhorse line of subwoofers, midrange, and high-frequency drivers. The ODEUM series consist of two 1200W 18” subwoofers (one neodymium, one ceramic), 5 sizes and various power ratings of neodymium mid-bass, and two 1” exit compression drivers (one bolt-on, one screw-on). Upgrade, replace, or create a new pro sound system with the ODEUM series.

We've Got Your Back

We stand behind our products and our warranty is a demonstration of our commitment to quality and reliability.

Learn More

Shop the Whole Odeum Series

Dayton Audio Pro 6

Nominal Diameter:6.5"
Frequency Response: 90Hz - 8.0kHz
Shop Now

Dayton Audio Pro 8

Nominal Diameter:8"
Frequency Response: 75Hz - 5.8kHz
Shop Now

Dayton Audio Pro 12

Nominal Diameter:12"
Frequency Response: 40Hz - 5.6kHz
Shop Now

Dayton Audio Pro 15

Nominal Diameter:15"
Frequency Response: 40Hz - 4.5kHz
Shop Now

Dayton Audio Pro 18F

Nominal Diameter:18"
Frequency Response:35Hz - 1.0kHz
Shop Now

Dayton Audio Pro 18

Nominal Diameter:18"
Frequency Response:35Hz - 1.0kHz
Shop Now

Ryman 1017S

Exit Diameter:1"
Frequency Response:1kHz - 20kHz
Shop Now

Ryman 1017B

Exit Diameter:1"
Frequency Response:1kHz - 20kHz
Shop Now
Shop The Whole Odeum Line
Learn More
Request Quote

Product Details

BrandDayton Audio
Model10MB250N-8
Part Number295-640
UPC848791008481
Unit of MeasureEach
Weight10.4

Product Specifications

Nominal Diameter10"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8Ω
Frequency Response60 to 4,200Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)54Hz
DC Resistance (Re)7.4Ω
Voice Coil Inductance (Le)1.12mH
Mechanical Q (Qms)6.73
Electromagnetic Q (Qes)0.23
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)1.53ft³
Mechanical Compliance of Suspension (Cms)0.25mm/N
BL Product (BL)19.2T·m
Diaphragm Mass Inc. Airload (Mms)34.2g
Maximum Linear Excursion (Xmax)5.79mm
Surface Area of Cone (Sd)333.12cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.47"
Baffle Cutout Diameter9.37"
Depth4.96"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3204Hz
Vented Volume0.6ft³
Vented F382Hz
