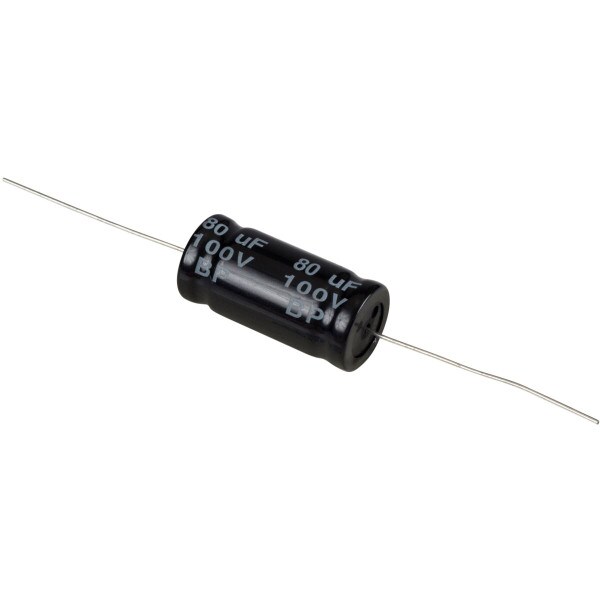

80uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-358

80uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-358
These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.
Key Features
  • 80 microfarad value
  • 18 mm diameter x 38 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance
Your Price: $2.69
MSRP: $3.99
Save $1.30 (33%)
Bulk Pricing
Quantity:Qty: 1-4 $2.69/ea
Quantity:Qty: 5+$2.42/ea
Ships next business day. Details

1743In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

80uF 100V Electrolytic Non-Polarized Crossover Capacitor

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

For part #'s 027-320 thru 027-378 (highlighted part is all that is part # specific):

Specifications:
• Value: 80.0 µF
• Rated: 100 VDC
• Tolerance: ±10%
• Dissipation Factor: Max 0.5 (5%) @ 1 KHz
• Dimensions: 18 mm Dia. x 38 mm L.

Product Details

BrandParts Express
Part Number027-358
UPC844632018268
Unit of MeasureEach
Weight0.002

Product Specifications

Capacitance80 uF
Termination StyleAxial
Tolerance10%
Voltage Rating100V

Specifications
