  • 1.0uF 100V Electrolytic Non-Polarized Crossover Capacitor

1.0uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-320

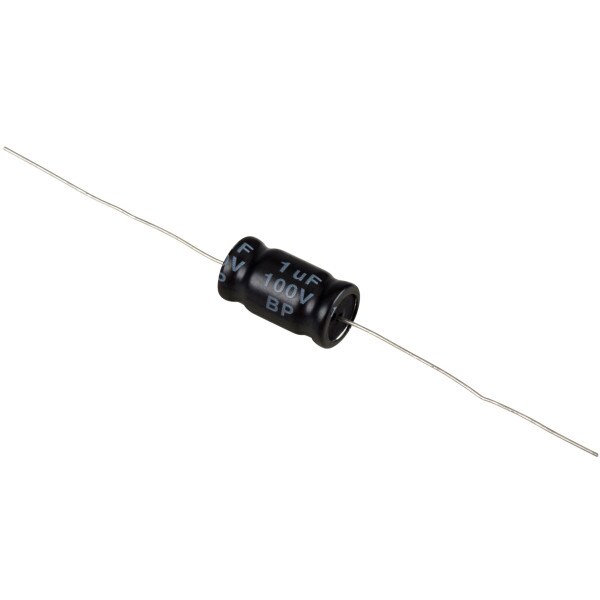

1.0uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-320
These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.
Key Features
  • 1.0 microfarad value
  • 10 mm diameter x 19 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance
  • Minimum Order 5 Pcs
Your Price: $0.79
MSRP: $1.99
Save $1.20 (60%)
Bulk Pricing
Quantity:Qty: 1-4 $0.79/ea
Quantity:Qty: 5+$0.71/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

1.0uF 100V Electrolytic Non-Polarized Crossover Capacitor

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications:
• Value: 1.0 µF
• Rated: 100 VDC
• Tolerance: ±10%
• Dissipation Factor: Max 0.5 (5%) @ 1 KHz
• Dimensions: 10 mm Dia. x 19 mm L.

Product Details

BrandParts Express
Part Number027-320
UPC844632018084
Unit of MeasureEach
Weight0.002

Product Specifications

Capacitance1.0 uF
Termination StyleAxial
Tolerance10%
Voltage Rating100V
