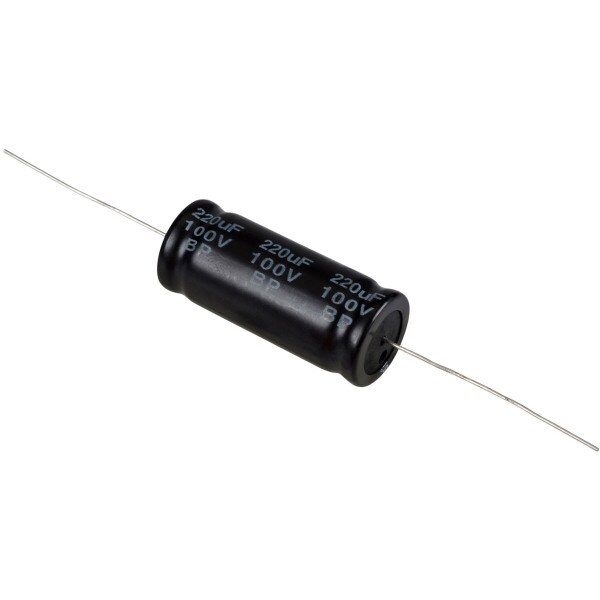

220uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-368

220uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-368
These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.
Key Features
  • 220 microfarad value
  • 18 mm diameter x 44 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance
Your Price: $4.39
MSRP: $5.99
Save $1.60 (27%)
Bulk Pricing
Quantity:Qty: 1-4 $4.39/ea
Quantity:Qty: 5+$3.95/ea
Order in the next 3 hr 44 min to ship today. Details

271In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

220uF 100V Electrolytic Non-Polarized Crossover Capacitor

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications:
• Value: 220.0 µF
• Rated: 100 VDC
• Tolerance: ±10%
• Dissipation Factor: Max 0.5 (5%) @ 1 KHz
• Dimensions: 18 mm Dia. x 44 mm L.

Product Details

BrandParts Express
Part Number027-368
UPC844632018312
Unit of MeasureEach
Weight0.037

Product Specifications

Capacitance220 uF
Termination StyleAxial
Tolerance10%
Voltage Rating100V
