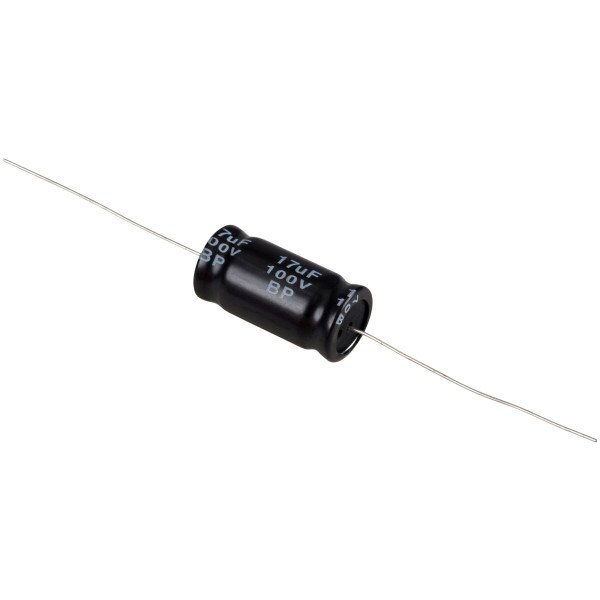

17uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-346

17uF 100V Electrolytic Non-Polarized Crossover Capacitor

Parts Express
Part #027-346
These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.
Key Features
  • 17 microfarad value
  • 13 mm diameter x 27 mm long
  • 5% dissipation factor and 100 VDC working voltage
  • ±10% tolerance
Your Price: $1.19
MSRP: $1.99
Save $0.80 (40%)
Bulk Pricing
Quantity:Qty: 1-4 $1.19/ea
Quantity:Qty: 5+$1.07/ea
Ships next business day. Details

481In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

17uF 100V Electrolytic Non-Polarized Crossover Capacitor

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications:
• Value: 17.0 µF
• Rated: 100 VDC
• Tolerance: ±10%
• Dissipation Factor: Max 0.5 (5%) @ 1 KHz
• Dimensions: 13 mm Dia. x 27 mm L.

Product Details

BrandParts Express
Part Number027-346
UPC844632018213
Unit of MeasureEach
Weight0.002

Product Specifications

Capacitance17 uF
Termination StyleAxial
Tolerance10%
Voltage Rating100V
