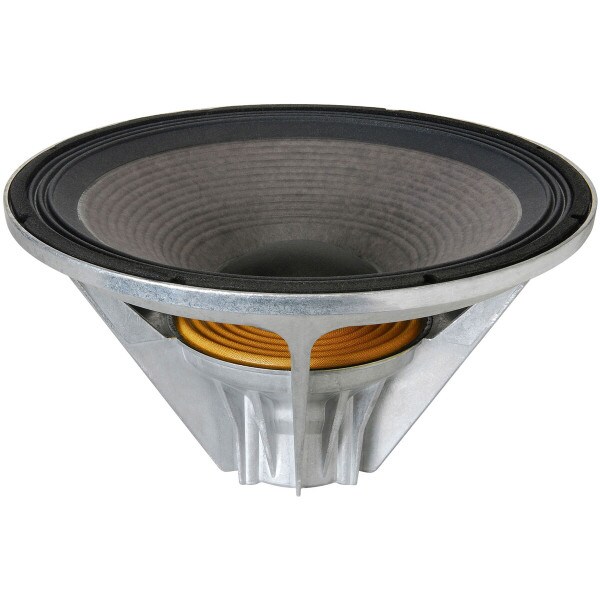

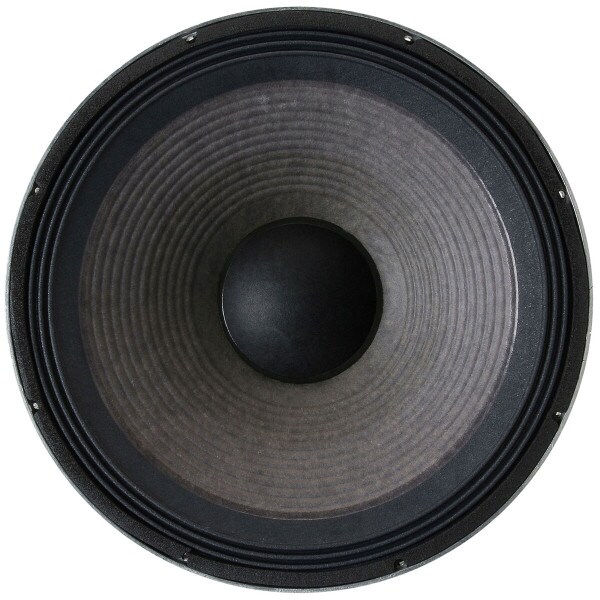

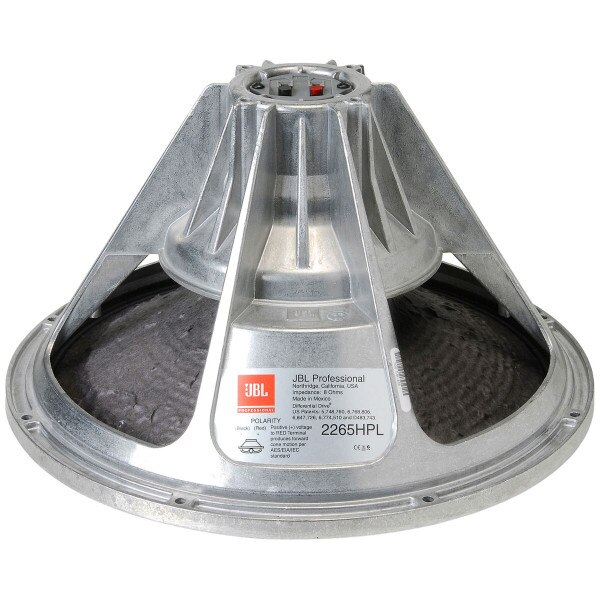

JBL 2265HPL 338343-003X 15" Neo Woofer

JBL Professional
Part #294-452

JBL 2265HPL 338343-003X 15" Neo Woofer

JBL Professional
Part #294-452
Model: 2265HPL
JBL's 2265HPL Differential Drive 15" woofer is a capable, durable, touring-quality PA speaker.
Key Features
  • Tour-class woofer with patented motor design
  • Better heat dissipation increases power handling, reduces power compression
  • Reduced inductance extends upper response
  • Lightweight, compact neodymium magnet system
  • Push-pull operation lowers distortion
  • Magnetically shielded for use anywhere
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $336.00
+ FREE SHIPPING
MSRP: $600.00
Save $264.00 (44%)
Bulk Pricing
Quantity:Qty: 1-3 $336.00/ea
Quantity:Qty: 4+$319.23/ea
Ships next business day. Details

5In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JBL 2265HPL 338343-003X 15" Neo Woofer

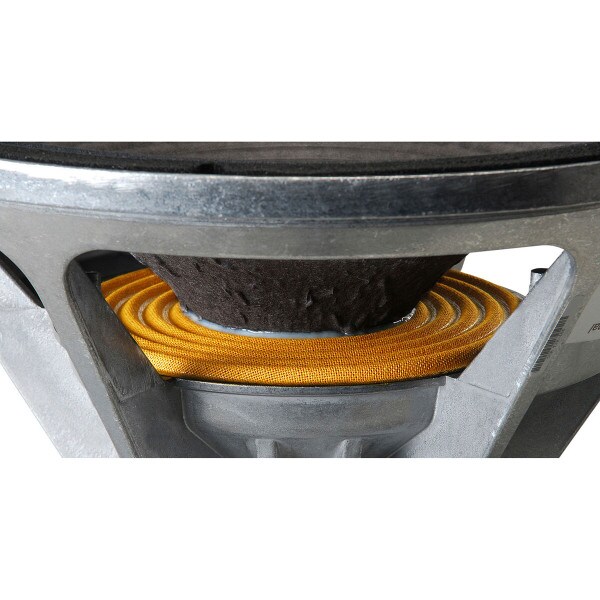

JBL's 2265HPL Differential Drive 15" woofer is a capable, durable, touring-quality PA speaker. Compared with traditional driver designs, JBL's patented Differential Drive employs a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap configuration. Available space is more effectively utilized, and heat is removed from the motor structure more efficiently. Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity. This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed. The 2265HPL is used in JBL's SRX715, SRX725, and VRX915 speaker systems.

Product Details

BrandJBL Professional
Model2265HPL
Part Number294-452
UPC844632090882
Unit of MeasureEach
Weight13.85

Product Specifications

Nominal Diameter15"
Power Handling (RMS)750 Watts
Power Handling (MAX)1500 Watts
Impedance8Ω
Frequency Response37 to 1,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)37Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)3.3
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)6.22ft³
Maximum Linear Excursion (Xmax)8mm

Materials of Construction

Cone MaterialPaper

Mounting Information

Overall Outside Diameter15.125"
Baffle Cutout Diameter13.875"
Depth8"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume3.5ft³
Vented F339.5Hz
