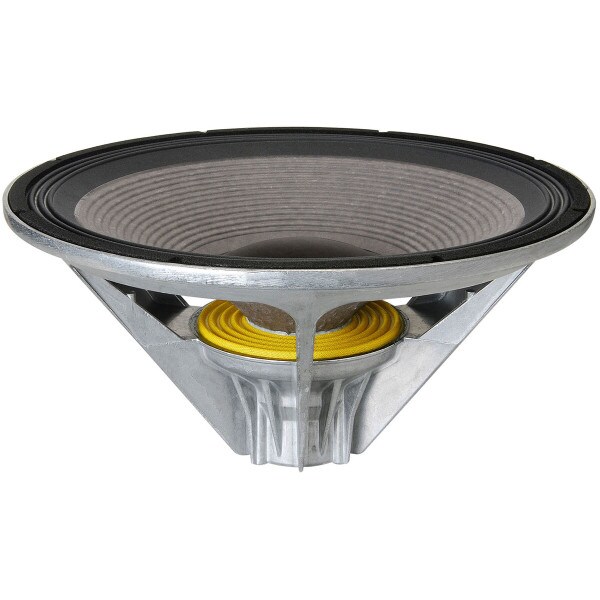

JBL 2268HPL 351210-003X 18" Neo Woofer

JBL Professional
Part #294-454

JBL 2268HPL 351210-003X 18" Neo Woofer

JBL Professional
Part #294-454
Model: 2268HPL
The JBL 2268HPL Differential Drive 18" speaker is the driver of choice for premium, high quality professional subwoofer systems.
Key Features
  • Tour-class woofer with patented motor design
  • Better heat dissipation increases power handling, reduces power compression
  • Reduced inductance extends upper response
  • Lightweight, compact neodymium magnet system
  • Push-pull operation lowers distortion
  • Magnetically shielded for use anywhere
Your Price: $380.80
+ FREE SHIPPING
MSRP: $528.00
Save $147.20 (28%)
Bulk Pricing

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JBL 2268HPL 351210-003X 18" Neo Woofer

The JBL 2268HPL Differential Drive 18" speaker is the driver of choice for premium, high quality professional subwoofer systems. Compared with traditional driver designs, JBL's patented Differential Drive employs a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap configuration. Available space is more effectively utilized, and heat is removed from the motor structure more efficiently. Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity. This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed. The 2268HPL is used in JBL's SRX718, SRX728, and SRX738 speaker systems.

Product Details

BrandJBL Professional
Model2268HPL
Part Number294-454
UPC844632090899
Unit of MeasureEach
Weight15

Product Specifications

Nominal Diameter18"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Frequency Response33 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)33Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)1.85mH
Mechanical Q (Qms)3.8
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)11.58ft³
Maximum Linear Excursion (Xmax)8mm

Materials of Construction

Cone MaterialPaper
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter18.125"
Baffle Cutout Diameter16.625"
Depth8.875"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume3.5ft³
Sealed F353.9Hz
Vented Volume7ft³
Vented F334Hz
