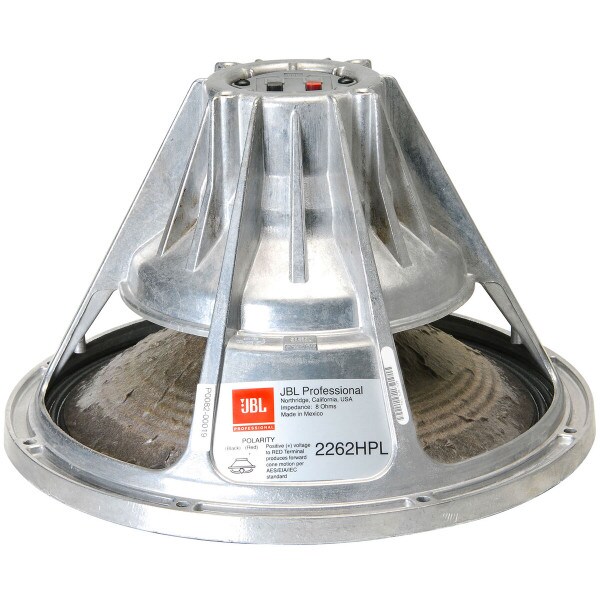

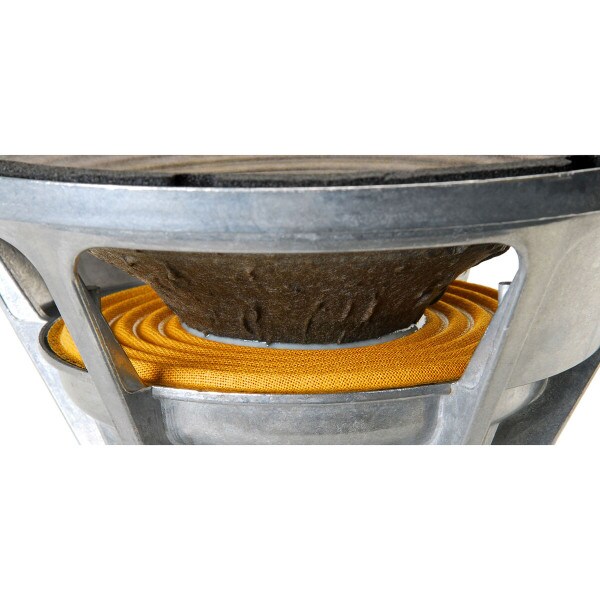

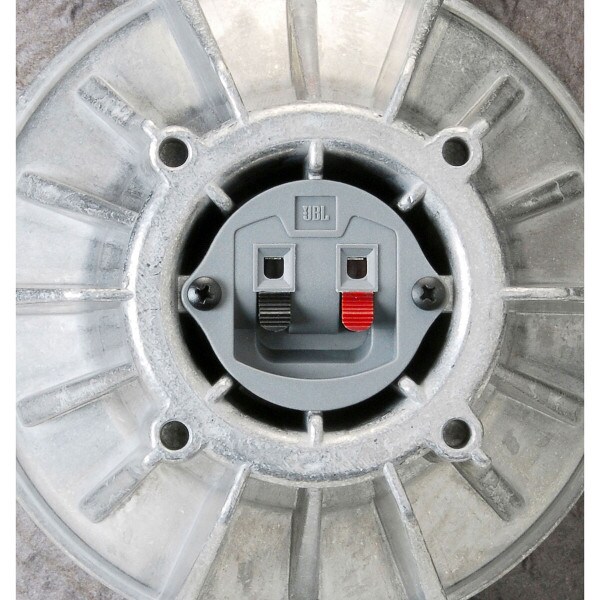

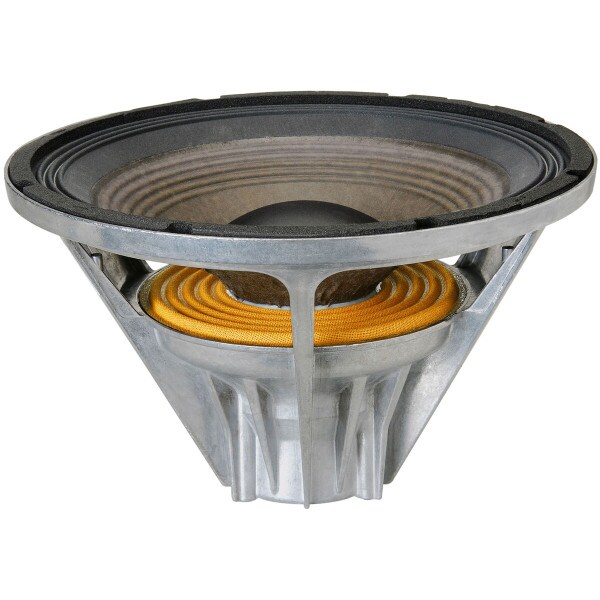

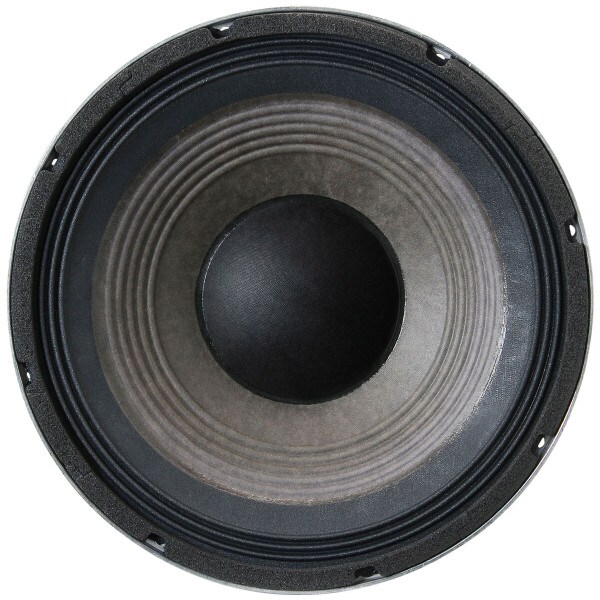

JBL 2262HPL 338312-004X 12" Neo Woofer

JBL Professional
Part #294-450

JBL 2262HPL 338312-004X 12" Neo Woofer

JBL Professional
Part #294-450
Model: 2262HPL
The JBL 2262HPL Differential Drive woofer performs better than conventional 12" PA speakers because it is engineered better.
Key Features
  • Tour-class woofer with patented motor design
  • Better heat dissipation increases power handling, reduces power compression
  • Reduced inductance extends upper response
  • Lightweight, compact neodymium magnet system
  • Push-pull operation lowers distortion
  • Magnetically shielded for use anywhere
Your Price: $409.02
+ FREE SHIPPING
MSRP: $474.00
Save $64.98 (14%)
Bulk Pricing
Ships next business day. Details

Only 3 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JBL 2262HPL 338312-004X 12" Neo Woofer

The JBL 2262HPL Differential Drive woofer performs better than conventional 12" PA speakers because it is engineered better. Compared with traditional driver designs, JBL's patented Differential Drive makes use of a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap combination. This permits a more effective use of available space, and expedites efficient removal of heat from the motor structure. Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity. This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed. The 2262HPL is used in JBL's SRX712, SRX722, and VRX932L speaker systems.

Product Details

BrandJBL Professional
Model2262HPL
Part Number294-450
UPC844632090875
Unit of MeasureEach
Weight10

Product Specifications

Nominal Diameter12"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response50 to 2,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)56.8Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)1.7mH
Mechanical Q (Qms)2.79
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)1.74ft³
Maximum Linear Excursion (Xmax)8mm

Materials of Construction

Cone MaterialPaper
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.25"
Baffle Cutout Diameter11.375"
Depth7.375"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1.5ft³
Vented F361.2Hz
