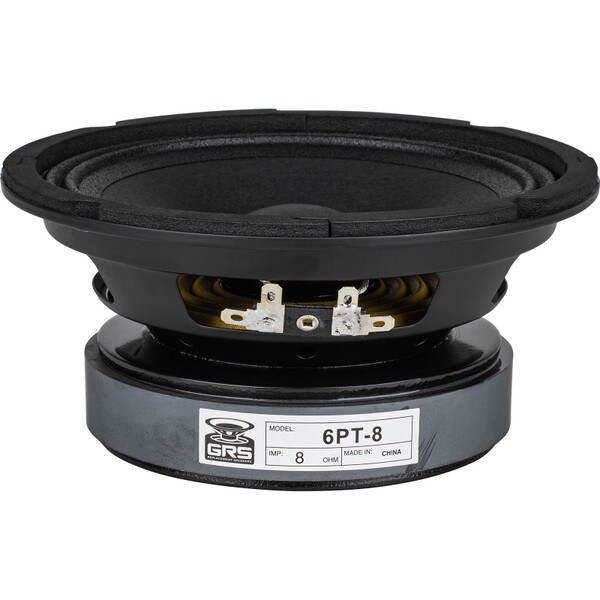

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass 8 Ohm

GRS
Part #292-800

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass 8 Ohm

GRS
Part #292-800
Model: 6PT-8
The GRS 6PT-8 6-1/2” professional paper cone woofer will deliver high output midbass and midrange response without breaking the bank. Packed with features like a 1.6” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a damaged loudspeaker or you are designing a high output 2 or 3-way system, the 6PT-8 is the perfect driver for budget builds.
Key Features
  • Lightweight damped paper cone allows high efficiency with minimal resonance
  • Smooth on and off axis response for use in high output 2 or 3-way designs
  • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

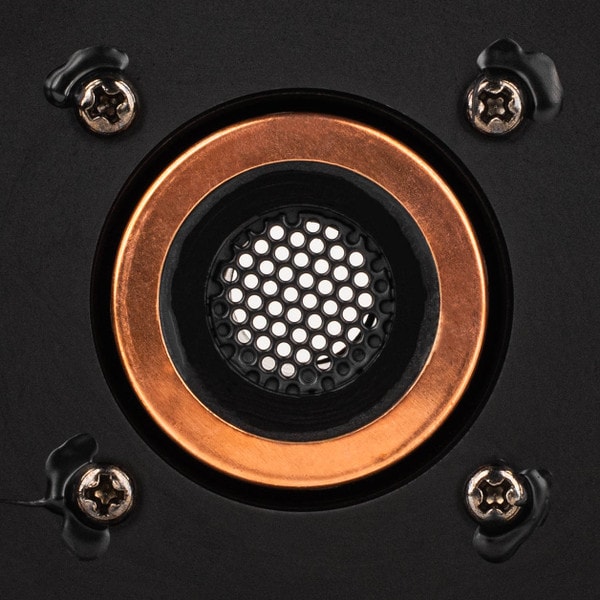

  • Inductance lowering copper cap reduces distortion and extends high frequency response
  • Foam front gasket ensures an airtight seal for rear mount installations
Your Price: $16.98
MSRP: $21.99
Save $5.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $16.98/ea
Quantity:Qty: 4+$15.28/ea
Ships next business day. Details

144In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 6PT-8 6-1/2" Paper Cone Professional Midbass 8 Ohm

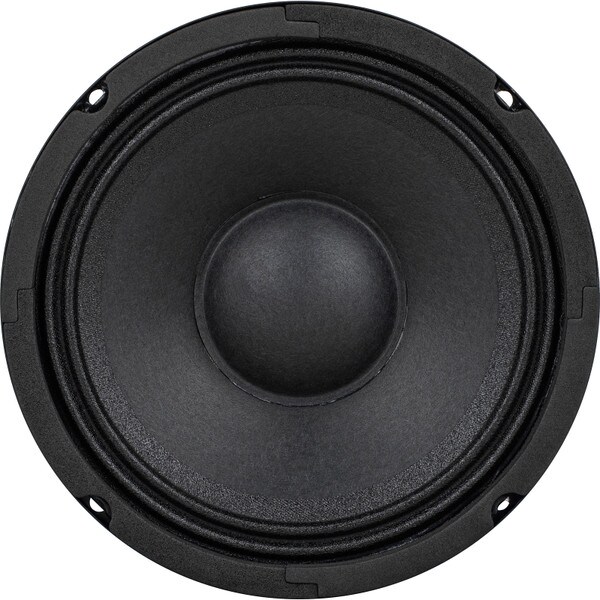

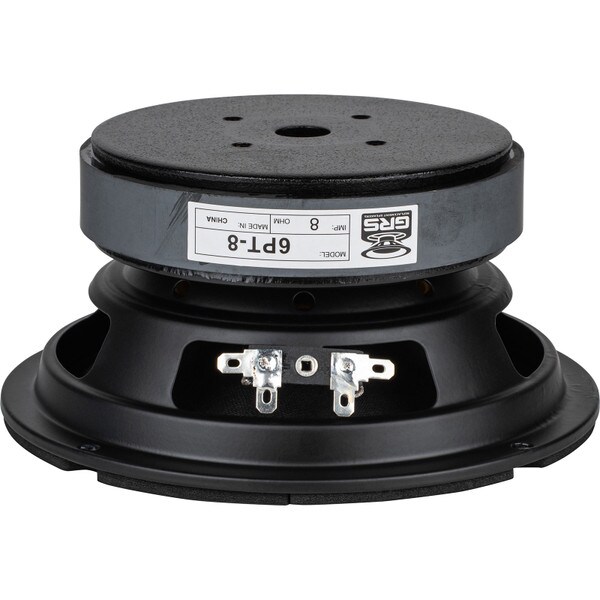

Engineered for high output with smooth frequency response, the 6PT-8 6-1/2” professional woofer is ideal for use in systems built to provide impressive SPL. Packed with features you would expect from much more expensive drivers, the 6PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 3,000 Hz. Driving the cone is a 1.6” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 100 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 6PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a worn-out speaker, or are designing high output 2 or 3-way system, the 6PT-8 is the ideal choice if you want high output and natural response without spending a fortune.

Product Details

BrandGRS
Model6PT-8
Part Number292-800
UPC848864066790
Unit of MeasureEach
Weight4.2

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.14
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response55 to 11,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.6"

Thiele-Small Parameters

Resonant Frequency (Fs)94Hz
DC Resistance (Re)7.4Ω
Voice Coil Inductance (Le)1.1mH
Mechanical Q (Qms)4.74
Electromagnetic Q (Qes)0.85
Total Q (Qts)0.72
Compliance Equivalent Volume (Vas)0.335ft³
Mechanical Compliance of Suspension (Cms)0.36mm/N
BL Product (BL)6.4T·m
Diaphragm Mass Inc. Airload (Mms)8g
Maximum Linear Excursion (Xmax)4.2mm
Surface Area of Cone (Sd)136.6cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.5"
Baffle Cutout Diameter5.8"
Depth3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F3109.6Hz
Vented Volume0.6ft³
Vented F378Hz
