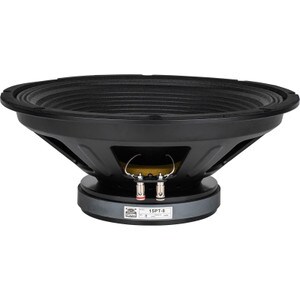

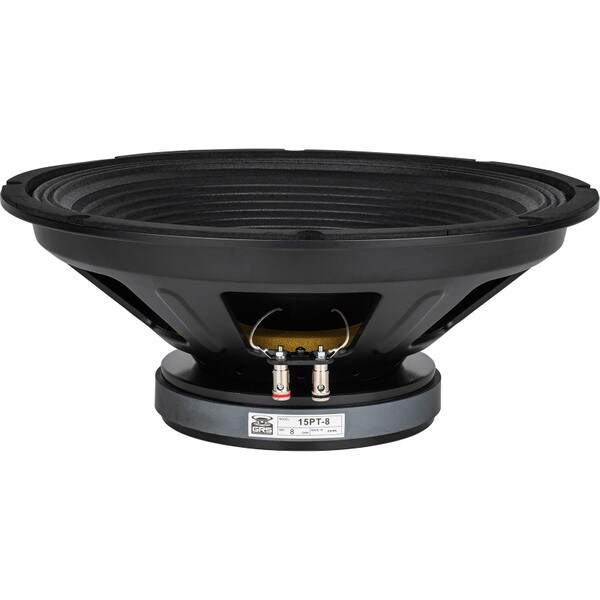

GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

GRS
Part #292-808

GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

GRS
Part #292-808
Model: 15PT-8
The GRS 15PT-8 15” professional paper cone woofer will deliver high output bass response without breaking the bank. Packed with features like a 3” voice coil, inductance reducing copper cap, under spider venting, and gap vents; this driver is built for high performance, low distortion, and incredible reliability. Whether you need a drop-in replacement for a worn-out professional subwoofer or are working on high SPL 3-way system, the 15PT-8 is the perfect driver for budget builds.
Key Features

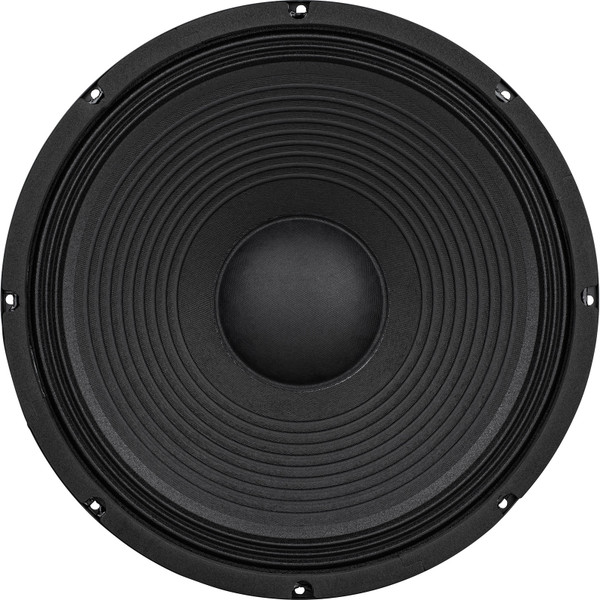

  • Lightweight ribbed paper cone allows high efficiency with minimal resonance
  • Excellent choice for high output 3-way designs and compact portable subwoofers
  • 3” diameter voice coil on heat resistant Kapton former handles up to 350 watts RMS
  • Extensive venting keeps cool air flowing across the voice coil to minimize power compression

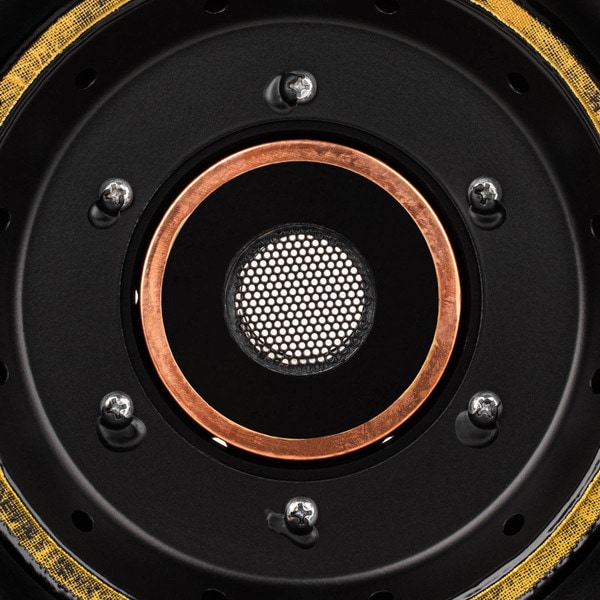

  • Inductance lowering copper cap reduces distortion and extends high frequency response

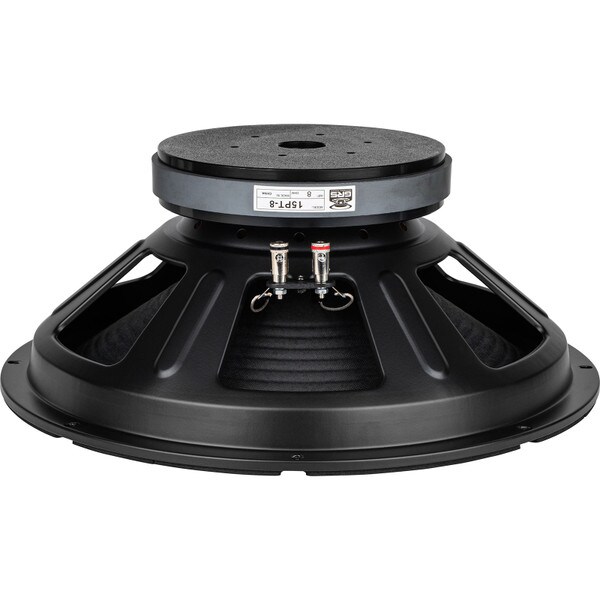

  • Spring-loaded push-button terminals makes wire connections quick and easy
  • Foam front gasket ensures an airtight seal for rear mount installations
Your Price: $50.92
MSRP: $77.99
Save $27.07 (35%)
Bulk Pricing
Ships next business day. Details

77In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

GRS 15PT-8 15" Paper Cone Professional Woofer with 3" Voice Coil 8 Ohm

Engineered for high output with powerful low frequency extension, the 15PT-8 15” professional woofer is ideal for use in large low-cost sound systems. Packed with features you would expect from much more expensive drivers, the 15PT-8 is built for low distortion and reliability even when pushed to its limit. The lightweight reinforced paper cone has excellent damping properties, minimizing unwanted resonances, and the ribbed surface controls cone breakup to ensure smooth response all the way up to 1,500 Hz. Driving the cone is a 3” diameter dual-layer voice coil that is wound on a heat resistant polyimide former to handle up to 350 watt RMS. Extensive venting through frame, pole piece, and magnetic gap cools the voice coil to prevent thermal runaway and lower power compression during long sessions at high power. With a copper cap on the pole piece keeping inductance under control, you can ensure that the 15PT-8 will provide low distortion throughout its useable bandwidth. Whether you need a drop-in replacement for a blown professional subwoofer, or are designing high output 3-way system, the 15PT-8 is the ideal choice if you want high impact low frequency response without spending a fortune.

Product Details

BrandGRS
Model15PT-8
Part Number292-808
UPC848864066837
Unit of MeasureEach
Weight16.2

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.65
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance
Frequency Response30 to 6,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)28Hz
DC Resistance (Re)7.4Ω
Voice Coil Inductance (Le)2.1mH
Mechanical Q (Qms)11.7
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)8.55ft³
Mechanical Compliance of Suspension (Cms)0.24mm/N
BL Product (BL)20.2T·m
Diaphragm Mass Inc. Airload (Mms)137g
Maximum Linear Excursion (Xmax)6.8mm
Surface Area of Cone (Sd)829.6cm²

Materials of Construction

Cone MaterialPaper / Glass Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.12"
Baffle Cutout Diameter13.77"
Depth5.9"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F355.2Hz
Vented Volume4.5ft³
Vented F333Hz
