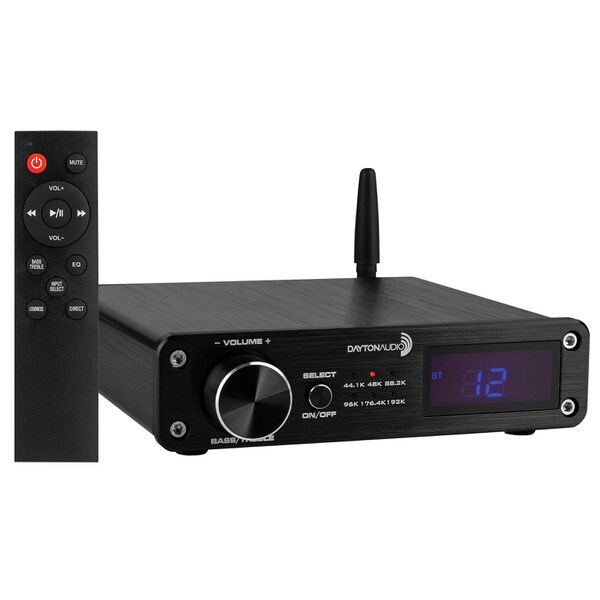

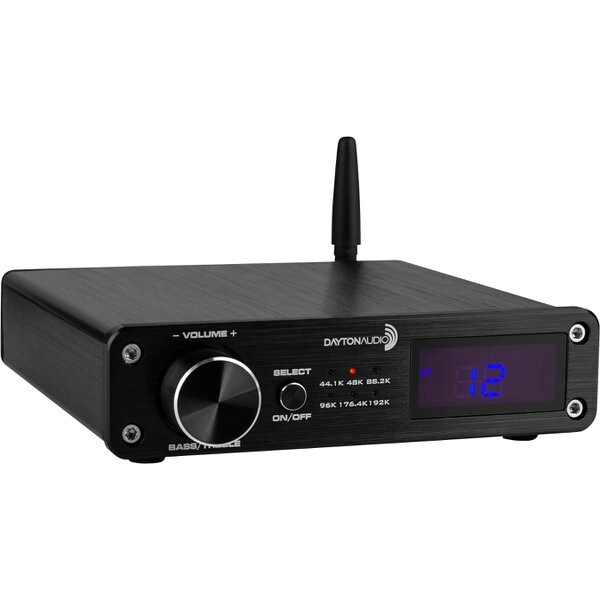

Dayton Audio DTA-PRO 100W Class D Bluetooth Amplifier with USB DAC
Rediscover your favorite music with the DTA-PRO. This all-in-one amplifier starts with a refined, brushed aluminum case and fills it chock full of features. This powerful 50 watt per channel amplifier offers clean and precise sound with a number of convenient input options. For convenience and usability the DTA-PRO comes equipped with Bluetooth 4.2 with aptX. For the very best in audio quality the DTA-PRO offers an optical / coaxial input capable of 192 kHz/24-bit sampling rate.

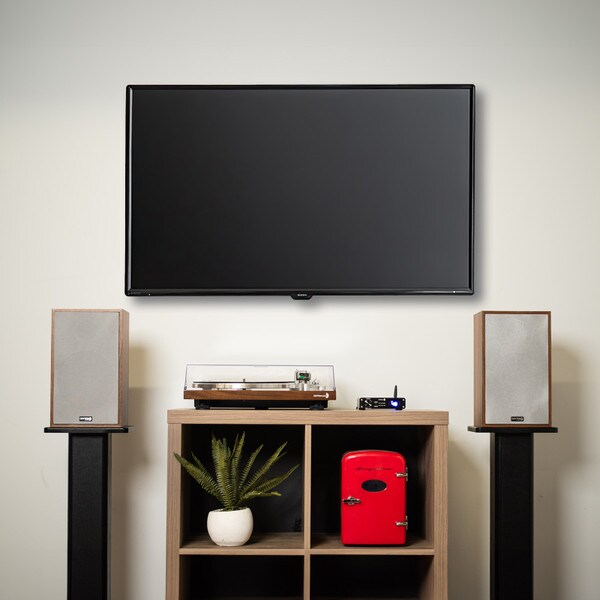

Perfect for TV's
The DTA-PRO is the perfect option for use with a television due to its numerous input options, subwoofer pre-out and output power capability. Simply hook up your favorite speakers and enjoy better sound than a sound bar in any room of the house. With multiple inputs, other devices can also be connected when you just want to sit back and relax, listening to your favorite record or CD. A subwoofer output also allows you to connect a powered subwoofer for a full 2.1 system, without the need of a full-size receiver.

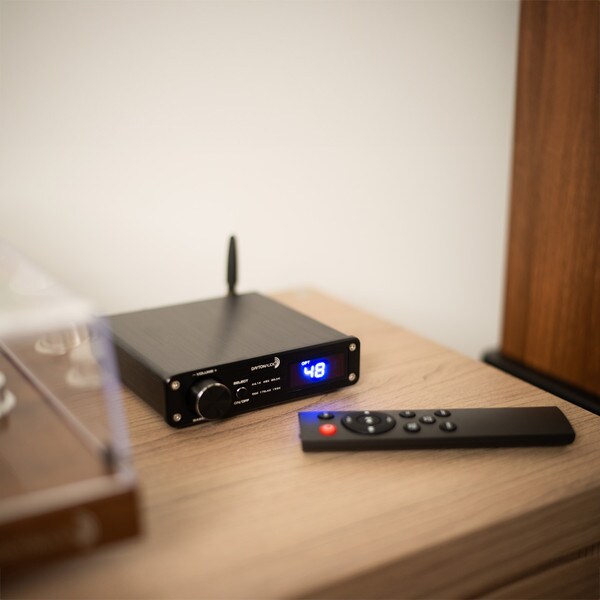

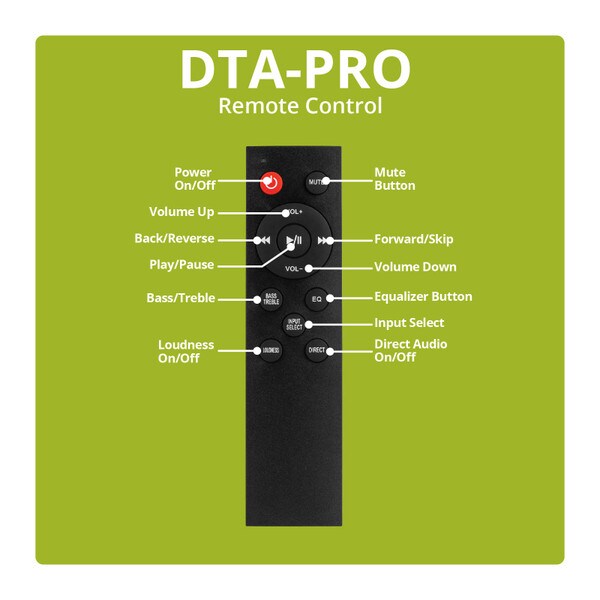

Complete Control

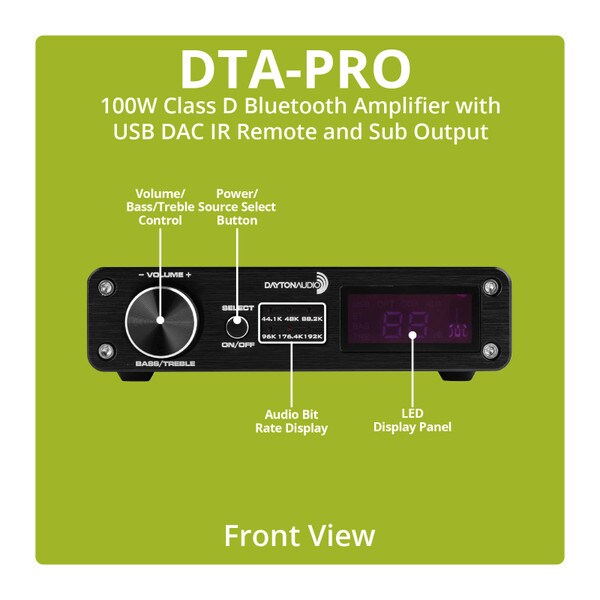

The DTA-PRO is fully controllable via the included remote control. Enjoy adjusting bass, treble, loudness, direct and five different EQ settings, as well as input selection, volume, mute and power functions, all from the comfort of your favorite seat. The amplifier also has a blue LED display that shows input and volume level, and the front facing auto bit rate display lets you see the quality of your stream, live.
Designed for Desktops
Its compact size makes it perfect for tight locations where space is at a premium, and desktop-centric features such as the high-quality USB DAC integrate perfectly into your workflow for effortless enjoyment. Expand your reach with the included IR remote to change inputs, adjust volume, and even customize the built in equalizer!
The Ins
The DTA-Pro features a full compliment of digital and analog inputs, including high-quality optical/coaxial digital inputs and a USB DAC with performance up to 96kHz/24-Bits. Bluetooth 4.2 with aptX adds high-quality audio at its most convenient.

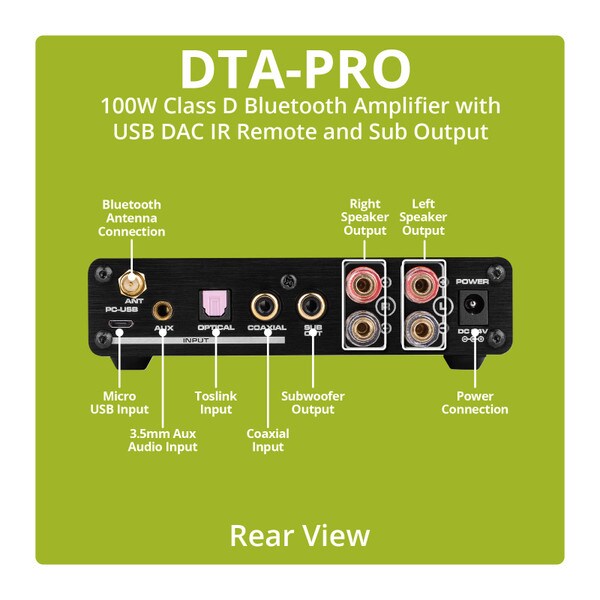

The Outs
Also on the rear are clearly marked outputs for the left and right speakers and a subwoofer. The mini binding posts easily accept standard banana plugs, spade connectors, ring connectors and bare wire connections for a high-quality connection to any speaker you have!
The DTA-PRO also offers a powerful line level output for connecting a powered subwoofer. At nearly 3 VRMS the subwoofer output provides a powerful signal to give your powered subwoofer the signal it needs to really pound.
There's a whole lot more to DTA
Dayton Audio's line of desktop amplifiers has an amp for every occasion. Explore the entire collection to quickly and easily bring immersive sound to your desktop or compact space.
Full Specifications:
- Maximum Output Power: 2 x 50 watts @ 4 ohms
- THD+N: 0.09%
- Frequency Response: 20Hz - 20kHz +/- 1.5dB
- SNR: -107dB
- Input Sensitivity: 250mV
- Inputs: USB, Digital Optical, Digital Coaxial, Stereo 3.5mm, Bluetooth
- Sub Out Voltage: 3V
- Sample Rate: 192 kHz/24-bit (coaxial and optical), 96 kHz/24-bit (USB)
- Power Input Voltage Range: 12-24 VDC
- Dimensions (W x H x D): 1.2" H x 5.2" W x 5" D
- Weight: 2.9 lbs.

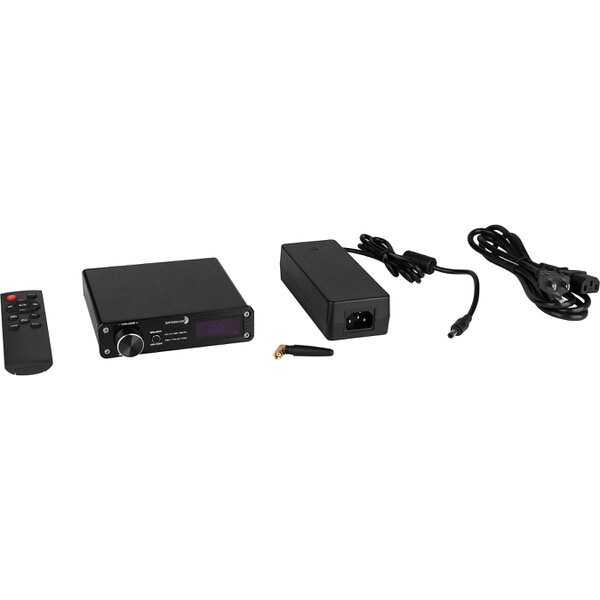

Please Note: The included power supply is capable of driving this amp at 2 x 40 watts per channel. To realize the full potential of this amp (>50 watts per channel), we recommend a 24V 5A power supply that is capable of producing 120 watts of total output.
