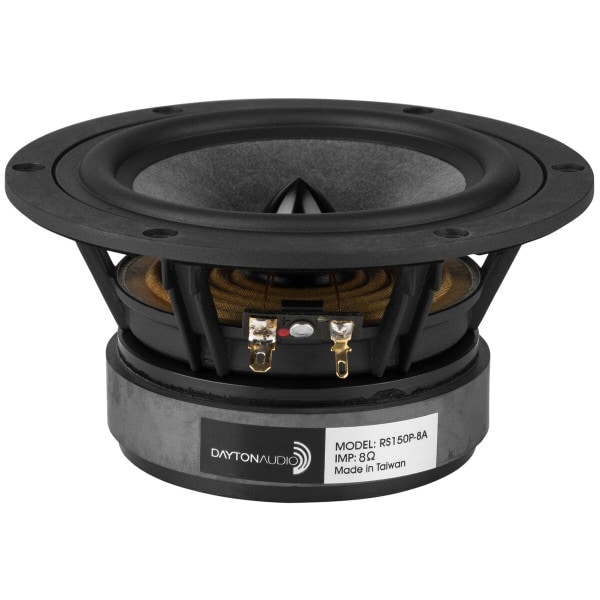

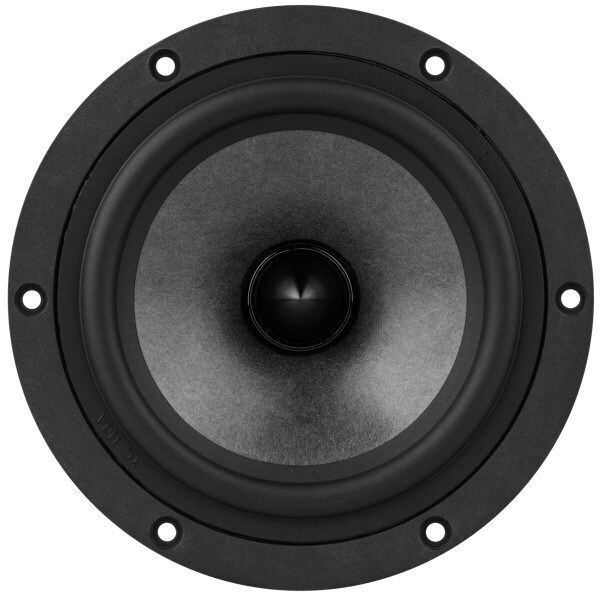

Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm

Dayton Audio
Part #295-573

Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm

Dayton Audio
Part #295-573
Model: RS150P-8A
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.
Key Features
  • Now with improved frequency response for easier crossover integration
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 88.7 dB sensitivity and 4 mm of excursion
Your Price: $54.98
MSRP: $68.99
Save $14.01 (20%)
Bulk Pricing
Quantity:Qty: 1-3 $54.98/ea
Quantity:Qty: 4+$44.52/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS150P-8A 6" Reference Paper Woofer 8 Ohm

Now with improved frequency response – we tweaked the design and the result is a much a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelRS150P-8A
Part Number295-573
UPC848791002670
Unit of MeasureEach
Weight3.5

Product Specifications

Nominal Diameter6"
Power Handling (RMS)40 Watts
Power Handling (MAX)65 Watts
Impedance8Ω
Frequency Response49 to 10,000Hz
Sensitivity88.7dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)47.1Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.65mH
Mechanical Q (Qms)1.66
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)0.59ft³
Mechanical Compliance of Suspension (Cms)1.65mm/N
BL Product (BL)5.6T·m
Diaphragm Mass Inc. Airload (Mms)6.9g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)85cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.91"
Baffle Cutout Diameter4.78"
Depth2.89"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.13ft³
Sealed F3110Hz
Vented Volume0.3ft³
Vented F363Hz
