Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

Dayton Audio
Part #295-372

Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

Dayton Audio
Part #295-372
Model: RS150-4

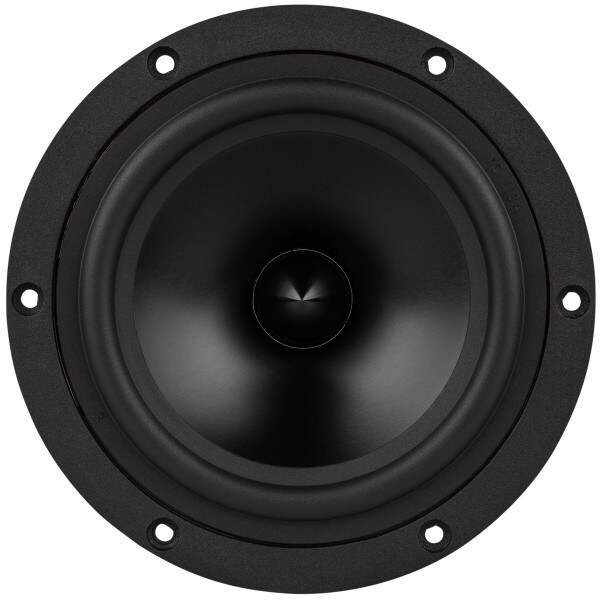

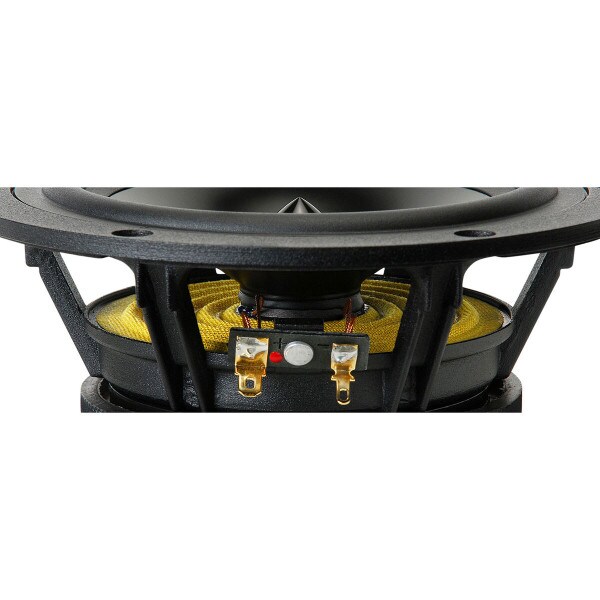

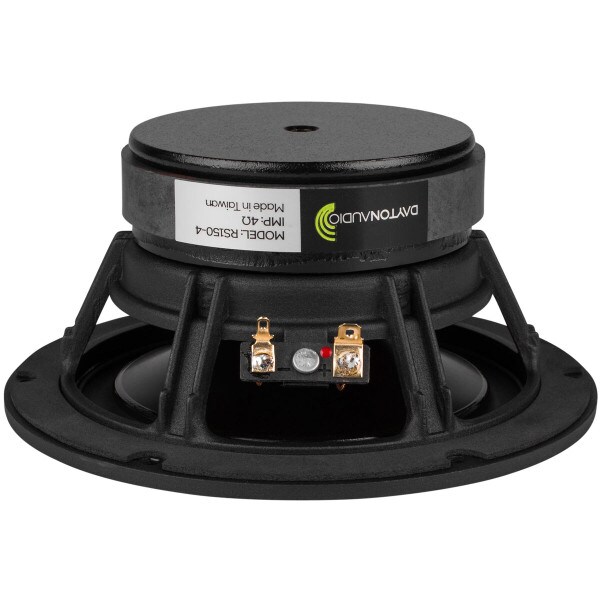

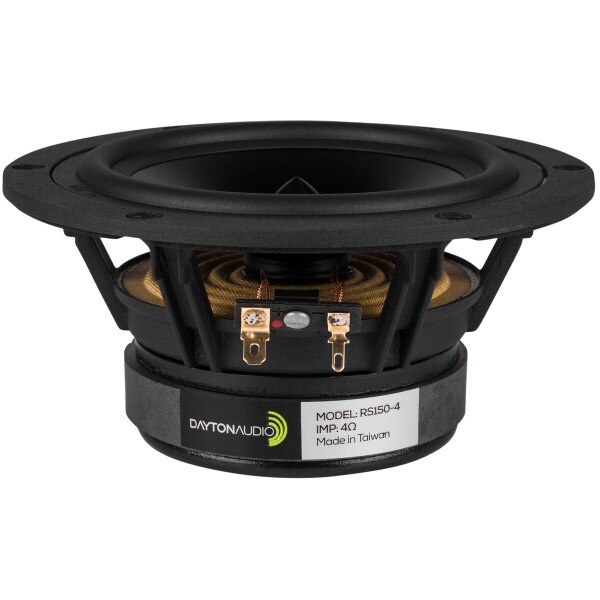

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.
Key Features
  • 4 ohm impedance is perfect for series pairs in MTMs and center channel speakers
  • Excellent car audio midrange/midbass
  • High-end low-distortion motor with two shorting paths to reduce inductance
Your Price: $37.49
MSRP: $58.99
Save $21.50 (36%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio RS150-4 6" Reference Woofer 4 Ohm

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, and gold terminals.

Product Details

BrandDayton Audio
ModelRS150-4
Part Number295-372
UPC844632054235
Unit of MeasureEach
Weight2.8001

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.43
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance
Frequency Response48 to 4,000Hz
Sensitivity91.8dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)45.1Hz
DC Resistance (Re)3.1Ω
Voice Coil Inductance (Le)0.34mH
Mechanical Q (Qms)1.96
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)0.579ft³
Mechanical Compliance of Suspension (Cms)1.62mm/N
BL Product (BL)4.1T·m
Diaphragm Mass Inc. Airload (Mms)7.7g
Maximum Linear Excursion (Xmax)4.4mm
Surface Area of Cone (Sd)85cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.91"
Baffle Cutout Diameter4.78"
Depth2.76"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.12ft³
Sealed F3125Hz
Vented Volume0.28ft³
Vented F364Hz
