Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver

Dayton Audio
Part #295-346

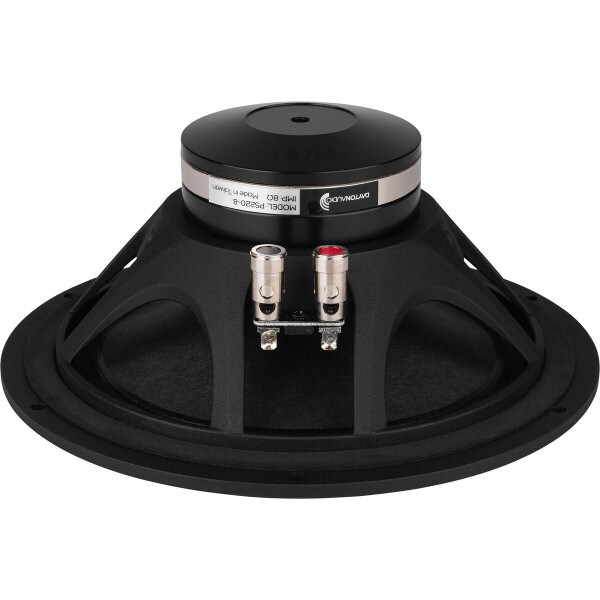

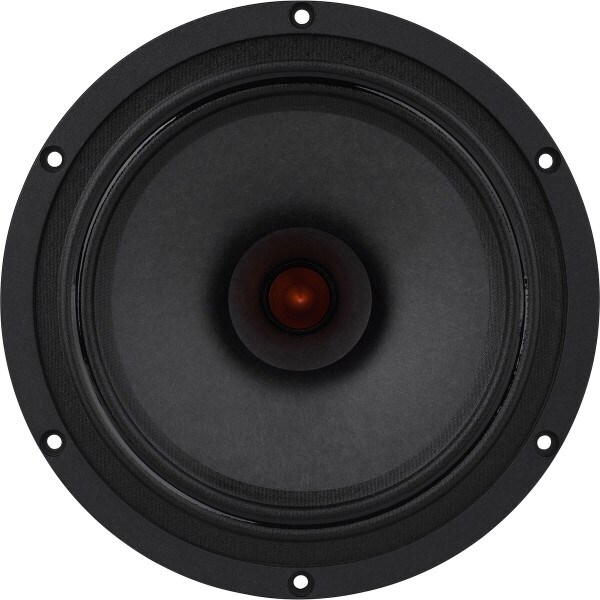

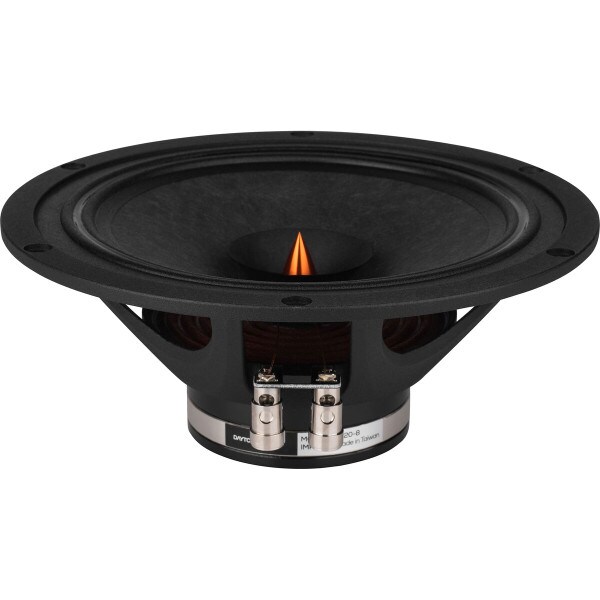

Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver

Dayton Audio
Part #295-346
Model: PS220-8
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
  • High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

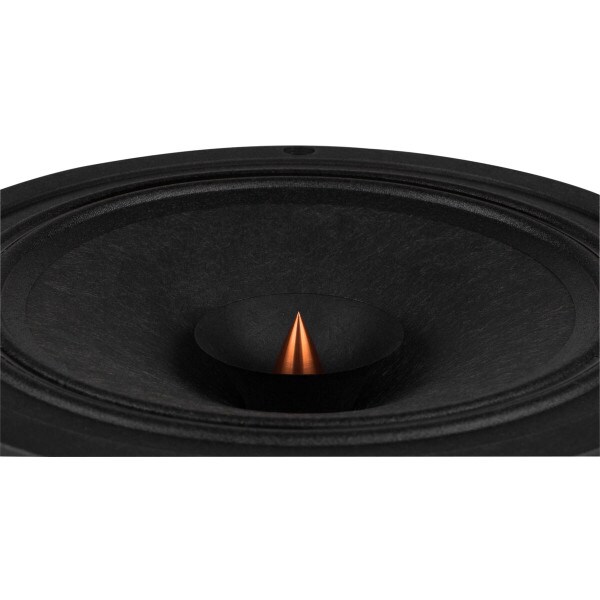

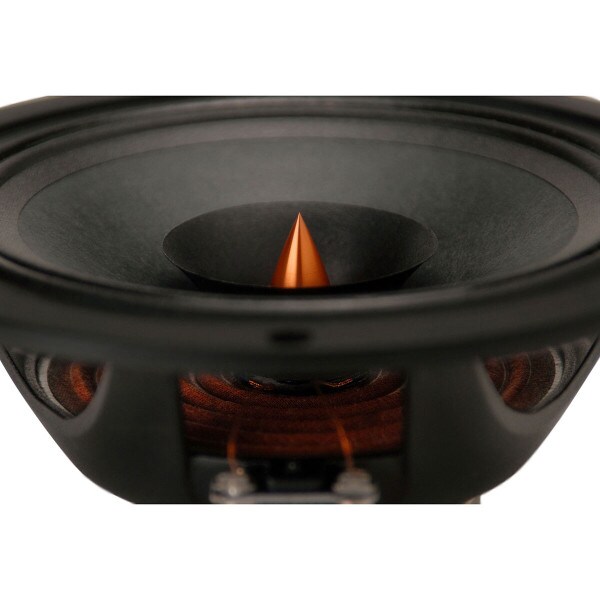

  • Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
  • Solid bass performance, thanks to usefully high excursion capability (4.8 mm Xmax)

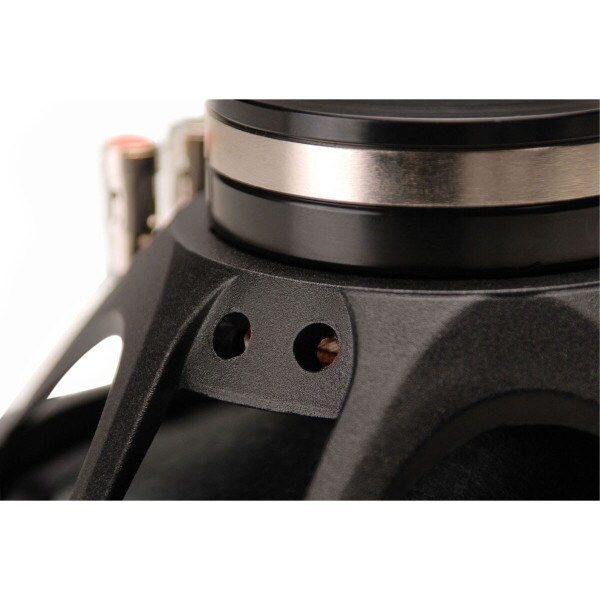

  • Optimized neodymium magnet provides high motor strength
  • Low-mass copper clad aluminum voice coil
  • Copper cap and copper ring on pole piece reduce inductance and distortion
  • Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Your Price: $149.98
+ FREE SHIPPING
MSRP: $194.99
Save $45.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $149.98/ea
Quantity:Qty: 4+$134.10/ea
Order in the next 1 hr 19 min to ship today. Details

205In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PS220-8 8" Point Source Full-Range Neo Driver

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!



Product Details

BrandDayton Audio
ModelPS220-8
Part Number295-346
UPC844632088803
Unit of MeasureEach
Weight4.8

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.27
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response40 to 25,000Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)46.4Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.73mH
Mechanical Q (Qms)5.73
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)3.19ft³
Mechanical Compliance of Suspension (Cms)1.41mm/N
BL Product (BL)6.15T·m
Diaphragm Mass Inc. Airload (Mms)8.4g
Maximum Linear Excursion (Xmax)4.8mm
Surface Area of Cone (Sd)216.4cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter8.72"
Baffle Cutout Diameter7.13"
Depth3.7"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.56ft³
Sealed F3114Hz
Vented Volume2.25ft³
Vented F355Hz
