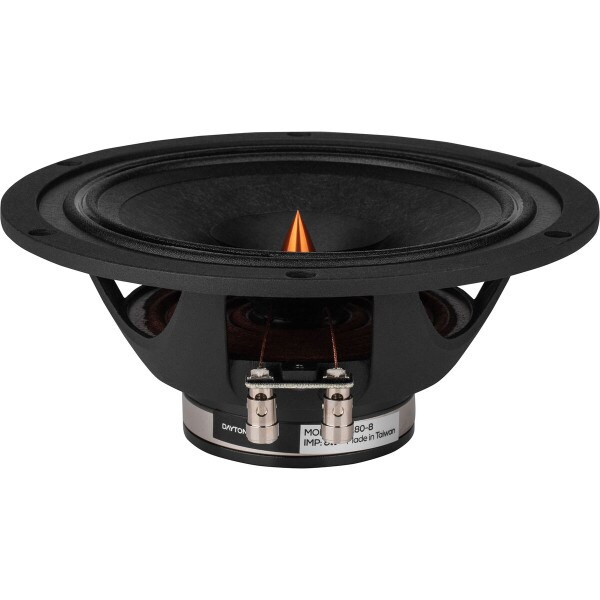

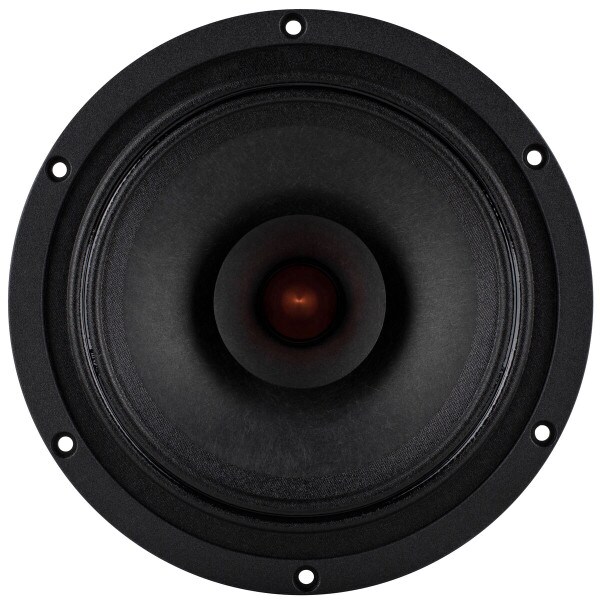

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

Dayton Audio
Part #295-344

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

Dayton Audio
Part #295-344
Model: PS180-8
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs.
Key Features
  • High sensitivity/minimal distortion—an ideal match for lower powered amplifiers

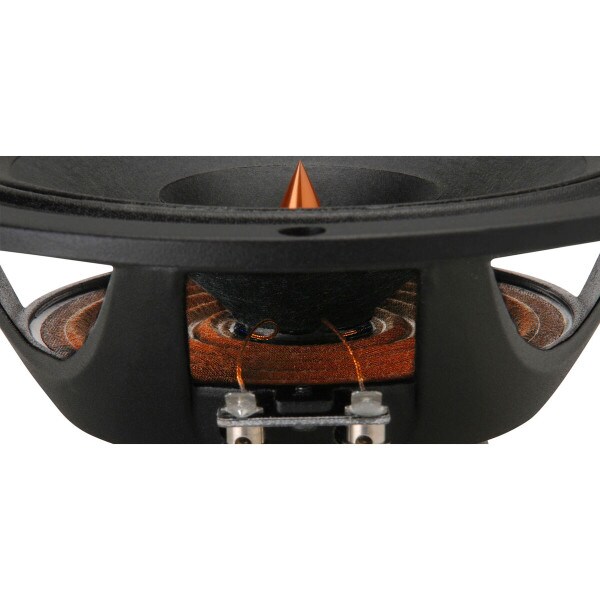

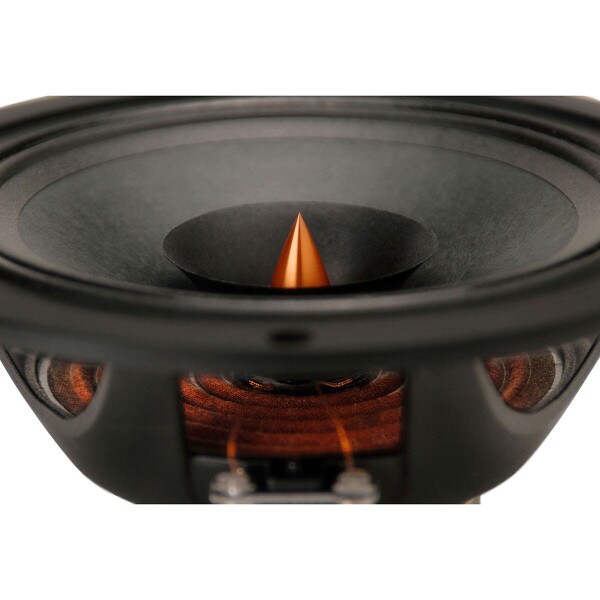

  • Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
  • Solid bass performance, thanks to usefully high excursion capability (4.6 mm Xmax)
  • Optimized neodymium magnet provides high motor strength
  • Low-mass copper clad aluminum voice coil
  • Copper cap and copper ring on pole piece reduce inductance and distortion
  • Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Your Price: $99.00
+ FREE SHIPPING
MSRP: $155.99
Save $56.99 (37%)
Bulk Pricing
Order in the next 1 hr 14 min to ship today. Details

190In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PS180-8 6-1/2" Point Source Full-Range Neo Driver

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS180-8 6-1/2" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelPS180-8
Part Number295-344
UPC844632088797
Unit of MeasureEach
Weight2.9

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.69
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response48 to 25,000Hz
Sensitivity94.8dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)58.5Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)3.64
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)1ft³
Mechanical Compliance of Suspension (Cms)1.05mm/N
BL Product (BL)6.82T·m
Diaphragm Mass Inc. Airload (Mms)7g
Maximum Linear Excursion (Xmax)4.6mm
Surface Area of Cone (Sd)132.7cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7.09"
Baffle Cutout Diameter5.71"
Depth3.06"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3162Hz
Vented Volume0.5ft³
Vented F386Hz
