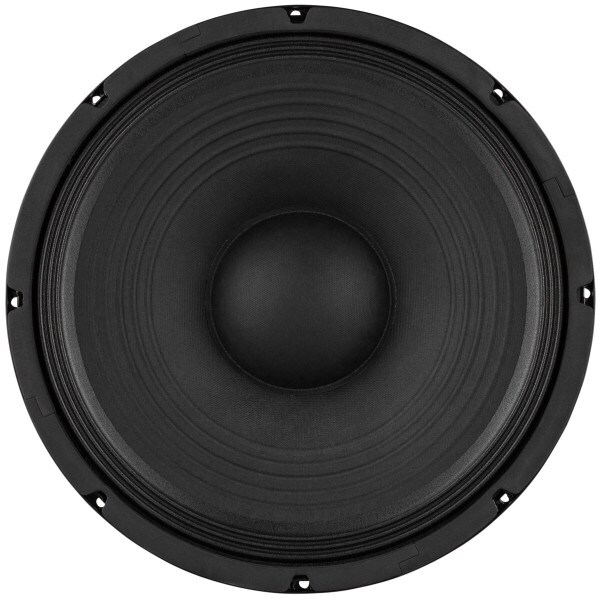

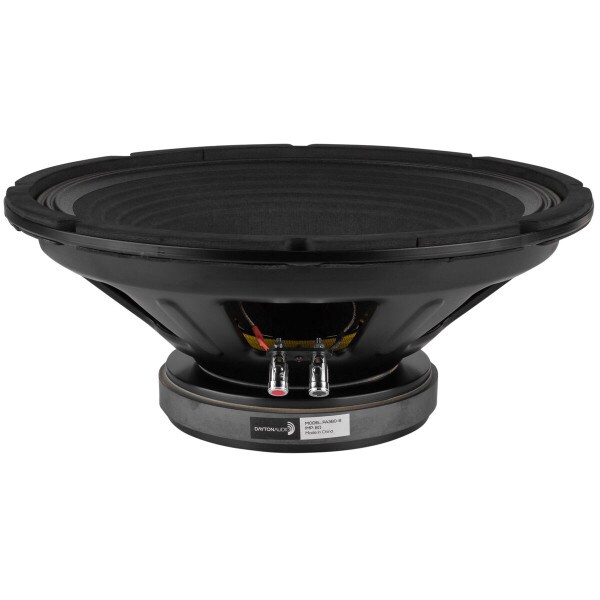

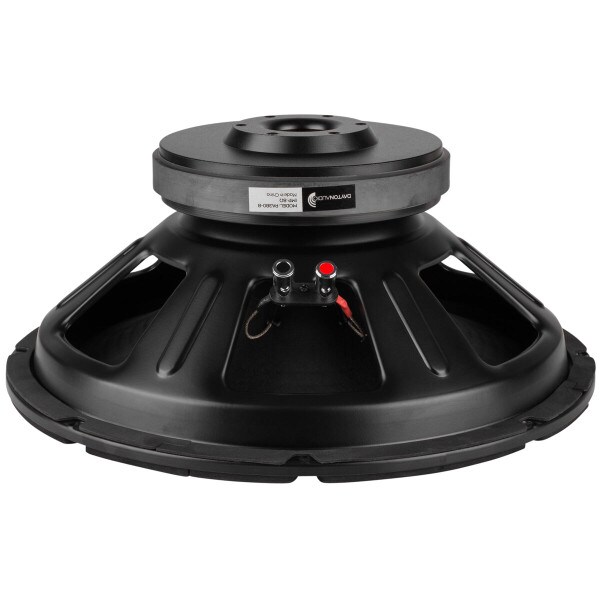

Dayton Audio PA380-8 15" Pro Woofer 8 Ohm

Dayton Audio
Part #295-034

Dayton Audio PA380-8 15" Pro Woofer 8 Ohm

Dayton Audio
Part #295-034
Model: PA380-8
Dayton Audio PA Series Pro Woofers are a great upgrade for musical instrument or sound reinforcement cabinets, and also excel in custom-built speaker systems.
Key Features
  • Strong, low-mass carbon fiber impregnated paper cone
  • I-beam rolled edge 1.5 mm steel frame
  • Low distortion motor system w/copper cap
  • Powerful 80 oz. ceramic ferrite magnet
  • Vented pole piece/vented voice coil gap improve thermal management
  • Black motor parts and black polyimide voice coil former dissipate heat
  • Bumped back plate for unrestricted excursion
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $119.98
+ FREE SHIPPING
MSRP: $174.99
Save $55.01 (31%)
Bulk Pricing
Quantity:Qty: 1-3 $119.98/ea
Quantity:Qty: 4+$109.98/ea
Ships next business day. Details

97In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PA380-8 15" Pro Woofer 8 Ohm

The Dayton Audio PA380-8 15" PA Series Pro Woofer is a powerful upgrade for guitar, bass guitar or sound reinforcement cabinets. The PA380-8 also excels in custom-built speaker system cabinets. High power handling, smooth response, low distortion, deep punchy bass, and rugged reliability are the features that set PA Series woofers apart from other drivers – premium performance, but value priced.

Product Details

BrandDayton Audio
ModelPA380-8
Part Number295-034
UPC844632084249
Unit of MeasureEach
Weight21.7

Product Specifications

Nominal Diameter15"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response28 to 3,500Hz
Sensitivity96.1dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)31.6Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)4.12mH
Mechanical Q (Qms)12.2
Electromagnetic Q (Qes)0.27
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)6.19ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)25.8T·m
Diaphragm Mass Inc. Airload (Mms)147g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)845cm²

Materials of Construction

Cone MaterialPaper / Carbon Fiber
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter14.96"
Baffle Cutout Diameter13.98"
Depth6.42"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.25ft³
Sealed F3100Hz
Vented Volume2.75ft³
Vented F348Hz
