  • Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm White WP80XTW

NEW Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm White WP80XTW

Dayton Audio
Part #310-097

NEW Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm White WP80XTW

Dayton Audio
Part #310-097
Model: WP80XTW
The Dayton Audio WP80XTW 8" Compact Pendant/Landscape Speaker is a versatile solution for high-quality indoor and outdoor audio. Its durable IP66-rated ABS enclosure ensures reliable performance in any environment, while the built-in passive radiator delivers exceptional bass response uncommon in pendant speakers. With flexible mounting options and 70V/100V or 8-ohm compatibility, this speaker adapts seamlessly to commercial or residential installations, offering outstanding sound clarity in a compact, stylish design.
Key Features
  • Passive Radiator: Enhances bass performance for deeper, richer audio.
  • Flexible Mounting: Pendant, wall, and landscape mounting options included.
  • Versatile Compatibility: Integrated 70V/100V transformer with 8-ohm bypass for multiple setups.
  • Enhanced Audio Performance: 37–20,000 Hz frequency response with 50W RMS power handling.
  • Stylish Finish: Sleek white enclosure suits any aesthetic, from modern to classic.
Similar items that may interest you:
See all items in Outdoor Speakers
NEW $149.00
+ FREE SHIPPING
MSRP: $299.00
Save $150.00 (50%)
Bulk Pricing
Quantity:Qty: 1-7 $149.00/ea
Quantity:Qty: 8+$133.50/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm White WP80XTW

Dayton Audio 8" Compact Pendant/Landscape Speaker 70V/100V/8 Ohm White WP80XTW

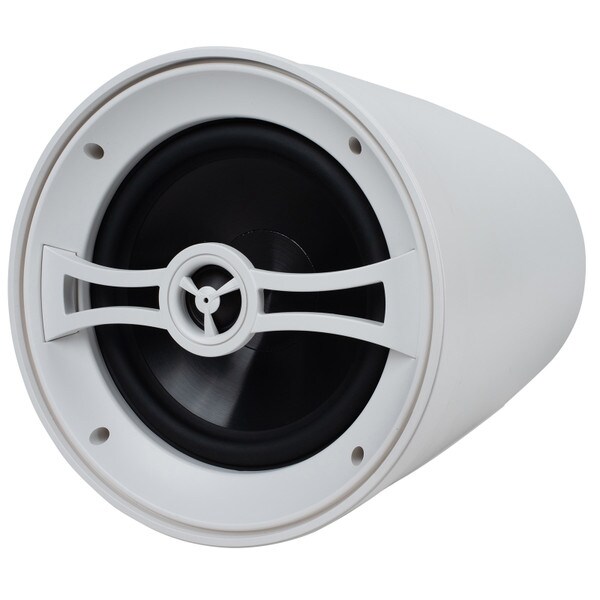

The Dayton Audio WP80XTW Indoor/Outdoor Multi-Purpose Speaker is designed to deliver exceptional audio performance in any setting. Featuring a 2-way coaxial design with a robust 8" woofer and a precise 1" tweeter, it provides clear and balanced sound. Its IP66-rated weather-resistant ABS plastic construction ensures durability in outdoor environments, while its sleek, modern design seamlessly integrates into indoor spaces, making it both functional and stylish.

Versatile for Commercial and Residential Installs



The Dayton Audio WP80TW is a highly versatile speaker designed for both commercial and residential audio installations. Featuring an integrated 70/100V transformer with multiple tap settings, it offers exceptional flexibility for professional setups. For added versatility, it also includes an 8-ohm bypass, making it compatible with standard amplifiers. The WP80TW stands out with its high-quality audio performance, thanks to its 8" woofer and a built-in passive radiator, which enhance low-end response for rich, full sound. Housed in a discreet, compact enclosure, this speaker is the ideal choice for delivering exceptional sound quality in any environment, whether indoors or outdoors.

Bass Radiator for Extended Bass Response





The Dayton Audio WP80XTW stands out with its built-in passive radiator, delivering extended bass response rarely found in pendant-mount speakers. This innovative feature allows the WP80XTB to reach low frequencies as deep as 37 Hz, significantly outperforming sealed pendant speakers of similar size, which typically only reach around 50 Hz. Ideal for both commercial and residential audio setups, the WP80XTW ensures a richer, more immersive sound experience in a compact, stylish design.






Pendant Mount

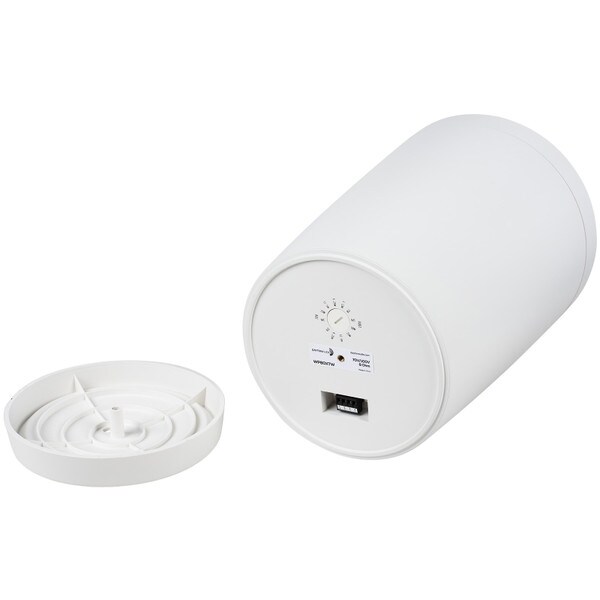

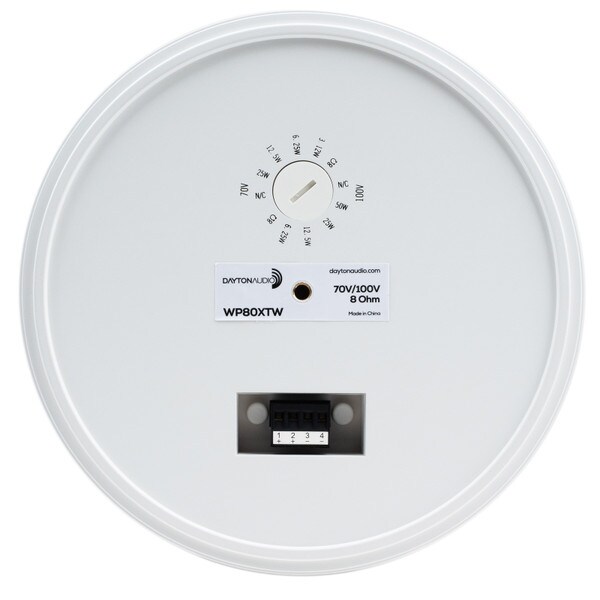

The Dayton Audio WP80XTW includes versatile mounting hardware designed for secure and easy installation. A specialized end cap protects the transformer tap selection and Phoenix wire connector, ensuring a clean and professional look. Additionally, an integrated eye bolt allows for safe hanging using a steel safety cable, making this speaker a reliable choice for pendant mounting in both indoor and outdoor audio setups.






Specifications

Frequency Response37- 20,000 Hz
Sensitivity
88 dB
Potential Output105 dB
Power Handling80W max (50W RMS)
Recommended Power Amplifier5 - 50 W
Impedance
8 ohm
Woofer8" Graphite
Tweeter1" Silk Dome
Enclosure Type2-way Passive Radiator
Crossover Frequency3 kHz
Weight (each)
10.99 lbs. (4.98 kg)
Dimensions14.75 in x 10 in. (375 mm x 253.4 mm)

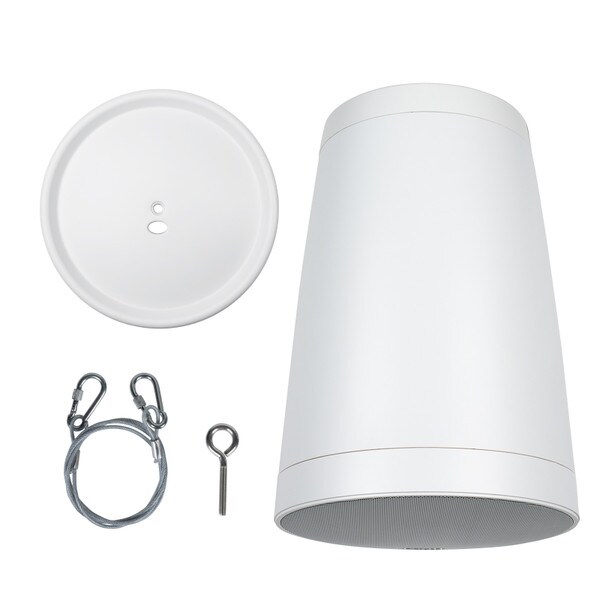

What's in the Box:

  • WPX Pendant Speaker
  • Top Cover
  • Eyebolt and Nut
  • Hanging Cable with Carabiner
  • Manual
