  • Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm Black WP80XTB

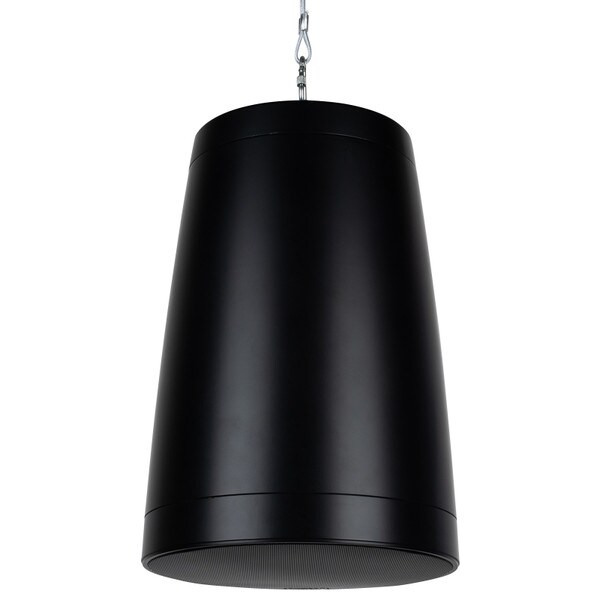

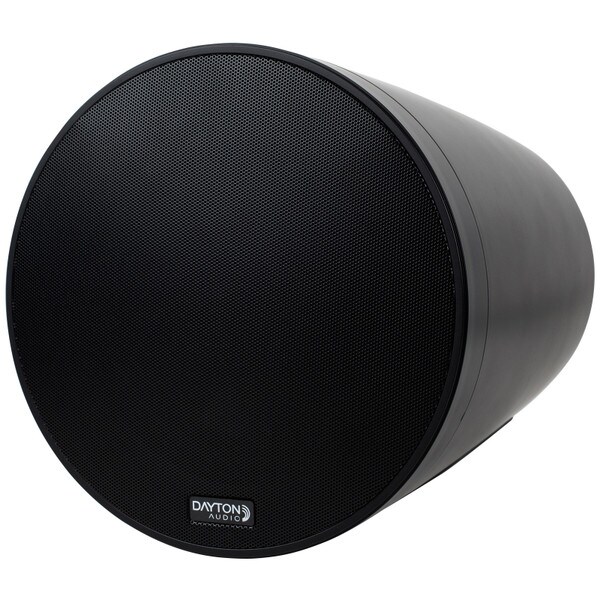

NEW Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm Black WP80XTB

Dayton Audio
Part #310-096

NEW Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm Black WP80XTB

Dayton Audio
Part #310-096
Model: WP80XTB
The Dayton Audio WP80XTB 8" Compact Pendant/Landscape Speaker is a versatile solution for high-quality indoor and outdoor audio. Its durable IP66-rated ABS enclosure ensures reliable performance in any environment, while the built-in passive radiator delivers exceptional bass response uncommon in pendant speakers. With flexible mounting options and 70V/100V or 8-ohm compatibility, this speaker adapts seamlessly to commercial or residential installations, offering outstanding sound clarity in a compact, stylish design.
Key Features
  • Passive Radiator: Enhances bass performance for deeper, richer audio.
  • Durable Construction: IP66 weather-resistant ABS plastic for reliable outdoor use.
  • Versatile Compatibility: Integrated 70V/100V transformer with 8-ohm bypass for multiple setups.
  • Enhanced Audio Performance: 37–20,000 Hz frequency response with 50W RMS power handling.
  • Stylish Finish: Sleek black enclosure suits any aesthetic, from modern to classic.
NEW $149.00
+ FREE SHIPPING
MSRP: $299.00
Save $150.00 (50%)
Bulk Pricing
Quantity:Qty: 1-7 $149.00/ea
Quantity:Qty: 8+$133.50/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 8" Commercial Audio Pendant Speaker 70V/100V/8 Ohm Black WP80XTB

Dayton Audio 8" Compact Pendant/Landscape Speaker 70V/100V/8 Ohm Black WP80XTB

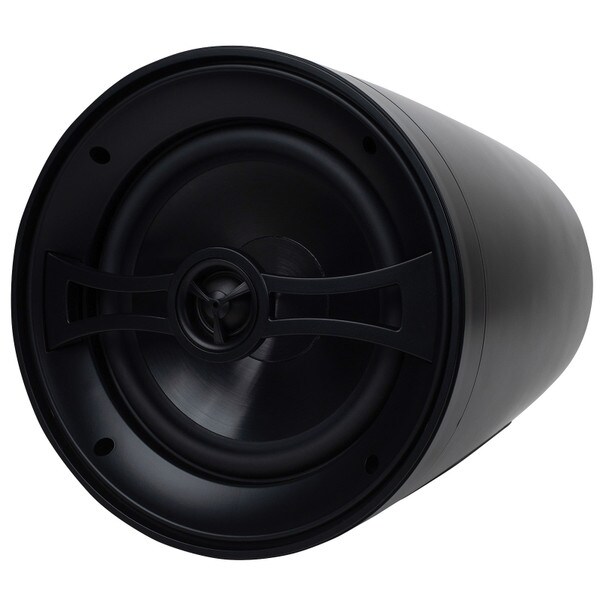

The Dayton Audio WP80XTB Indoor/Outdoor Multi-Purpose Speaker is designed to deliver exceptional audio performance in any setting. Featuring a 2-way coaxial design with a robust 8" woofer and a precise 1" tweeter, it provides clear and balanced sound. Its IP66-rated weather-resistant ABS plastic construction ensures durability in outdoor environments, while its sleek, modern design seamlessly integrates into indoor spaces, making it both functional and stylish.

Versatile for Commercial and Residential Installs



The Dayton Audio WP80TB is a highly versatile speaker designed for both commercial and residential audio installations. Featuring an integrated 70/100V transformer with multiple tap settings, it offers exceptional flexibility for professional setups. For added versatility, it also includes an 8-ohm bypass, making it compatible with standard amplifiers. The WP80TB stands out with its high-quality audio performance, thanks to its 8" woofer and a built-in passive radiator, which enhance low-end response for rich, full sound. Housed in a discreet, compact enclosure, this speaker is the ideal choice for delivering exceptional sound quality in any environment, whether indoors or outdoors.

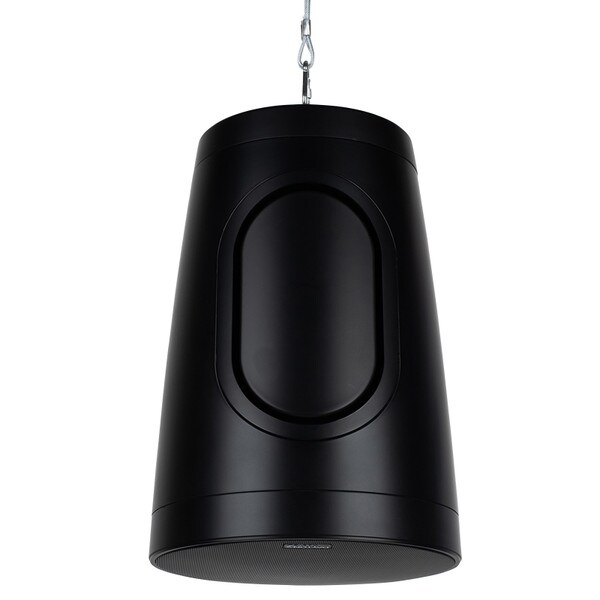

Bass Radiator for Extended Bass Response





The Dayton Audio WP80XTB stands out with its built-in passive radiator, delivering extended bass response rarely found in pendant-mount speakers. This innovative feature allows the WP80XTB to reach low frequencies as deep as 37 Hz, significantly outperforming sealed pendant speakers of similar size, which typically only reach around 50 Hz. Ideal for both commercial and residential audio setups, the WP80XTB ensures a richer, more immersive sound experience in a compact, stylish design.






Pendant Mount

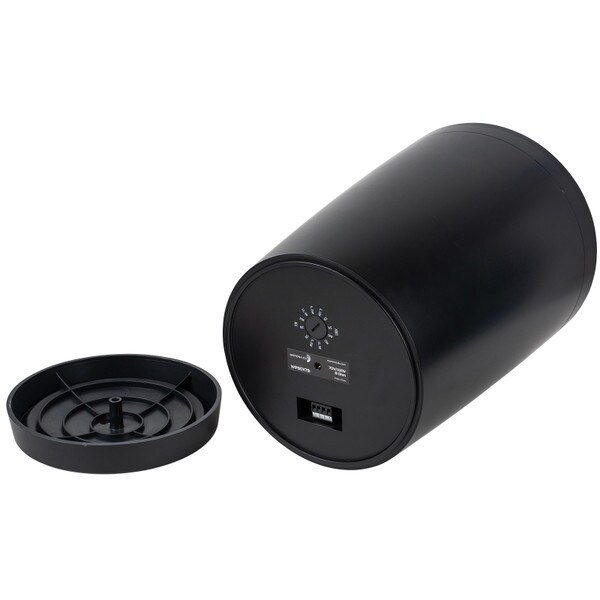

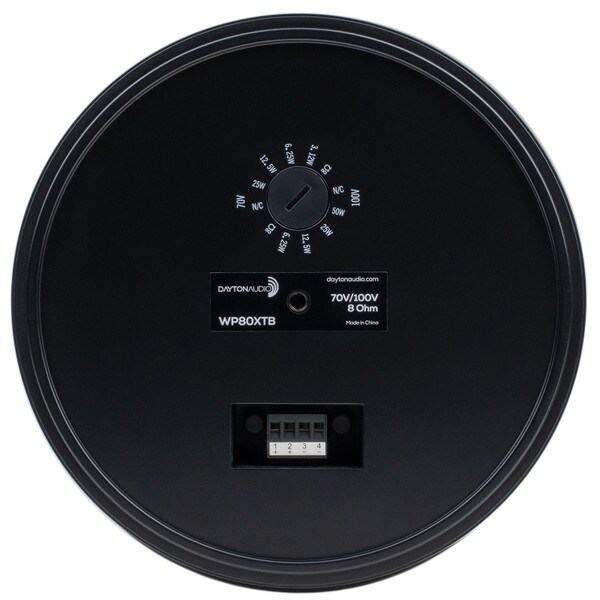

The Dayton Audio WP80XTB includes versatile mounting hardware designed for secure and easy installation. A specialized end cap protects the transformer tap selection and Phoenix wire connector, ensuring a clean and professional look. Additionally, an integrated eye bolt allows for safe hanging using a steel safety cable, making this speaker a reliable choice for pendant mounting in both indoor and outdoor audio setups.






Specifications

Frequency Response37- 20,000 Hz
Sensitivity
88 dB
Potential Output105 dB
Power Handling80W max (50W RMS)
Recommended Power Amplifier5 - 50 W
Impedance
8 ohm
Woofer8" Graphite
Tweeter1" Silk Dome
Enclosure Type2-way Passive Radiator
Crossover Frequency3 kHz
Weight (each)
10.99 lbs. (4.98 kg)
Dimensions14.75 in x 10 in. (375 mm x 253.4 mm)

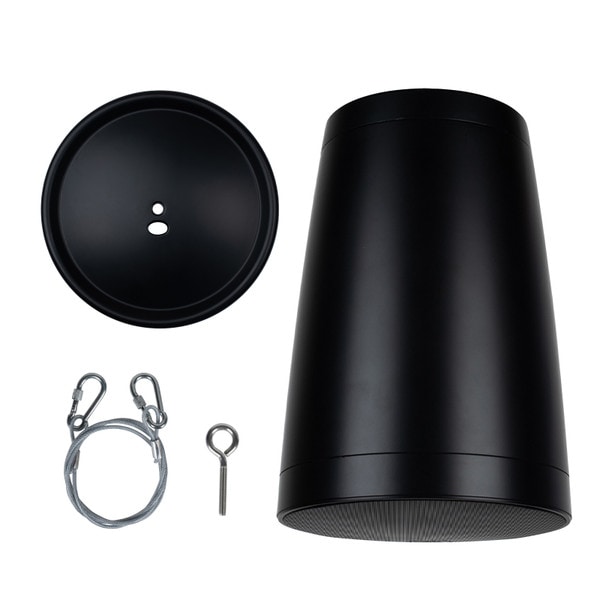

What's in the Box:

  • WPX Pendant Speaker
  • Top Cover
  • Eyebolt and Nut
  • Hanging Cable with Carabiner
  • Manual



Need Some More Help?

Need some help with your project? Part Express's technical support staff can help answer any questions that you might have and help ensure that your speaker design and build are successful.



Customer Service



To enquire about an order or report an order problem:

Email: CustomerService@Parts-Express.com

Phone: 1-800-338-0531

Hours: 8 AM–6 PM Monday – Friday ET
Closed Saturday & Sunday





Technical Support



To get technical information about our products:

Email: Tech@Parts-Express.com
Phone: 1-800-338-0531

Hours 8 AM-6 PM Monday - Friday ET
Closed Saturday & Sunday



Additional Resources

We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.

Resource Center


Get Inspired and Learn From The Best



Parts Express is a leading supplier in raw drivers, speaker components, and resources for speaker builders. Whether you are a seasoned vet or someone looking to find a new hobby, Parts Express has the gear and resources you need to complete your next project. The large community of speaker builders on our Tech Talk forum allow you to learn from some of the best in the business. For more inspiration, check out the Project Gallery which showcases a variety of designs from the speaker building community.

Product Details

BrandDayton Audio
ModelWP80XTB
Part Number310-096
UPC848791010729
Unit of MeasureEach
Weight11.02

Product Specifications

Input Rating50
Mounting StyleSuspended / Pendant
Woofer Diameter8"
