NEW 35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Name: 35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper
Brand: Parts Express
SKU: 090-813
Price: 2.98 USD
Availability: InStock

Parts Express

Part #090-813

NEW 35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Parts Express

Part #090-813

2 Pole Single 4 Pole Single 4 Pole Double 6 Pole Single 6 Pole Double 6 Pole Double with Black Jumper 6 Pole Double with Red Jumper 8 Pole Double 10 Pole Double with Red Jumper 10 Pole Double with Black Jumper 12 Pole Double 12 Pole Double with Red Jumper 12 Pole Double with Black Jumper

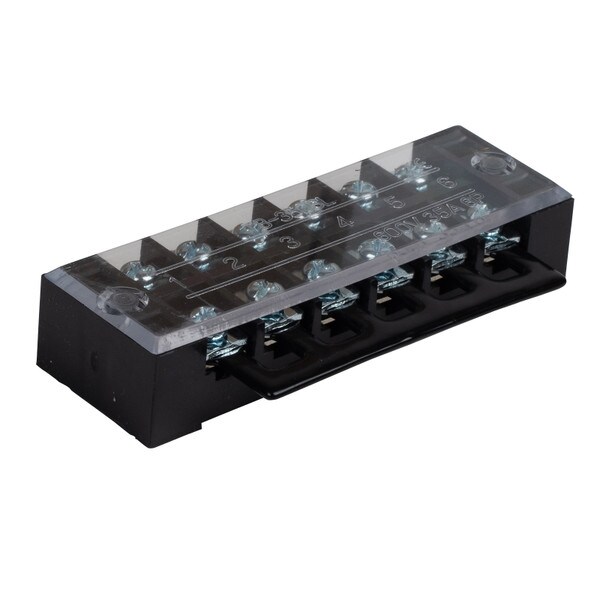

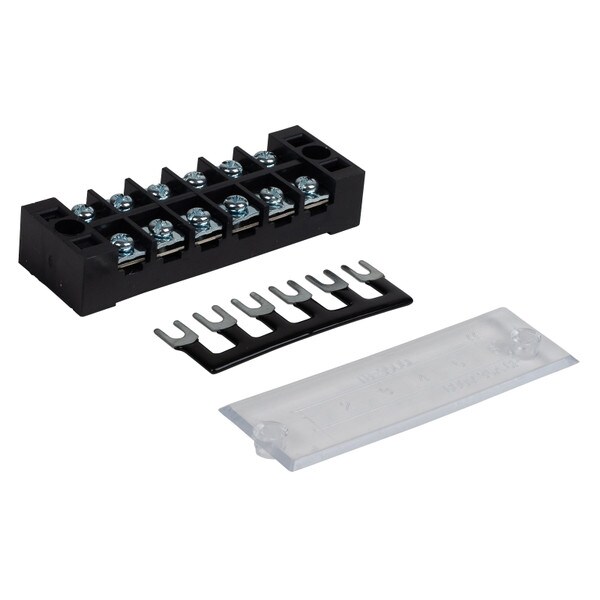

Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 35 amp current rating make it great for automotive power distribution. Includes a black jumper bar for quick single input with at least six outputs.

Key Features

Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
Nickel plated copper plates provide great connectivity
Snap-on clear plastic cover helps prevent accidental short circuits
One 0.18" (4.5 mm) mounting hole on each side 3.15" (80 mm) apart for a secure hold
Includes a red jumper bar which prevents having to make jumper wires and identifies polarity

See all items in Barrier & Terminal Strips

NEW $2.98

MSRP: $4.99

Bulk Pricing

Quantity:Qty: 1-9	$2.98/ea
Quantity:Qty: 10+	$2.68/ea

Ships next business day. Details

In Stock

Get Notified When Available

We'll send you an email when 35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper is back in stock or available for preorder.

Qty Quantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Frequently Bought Together

This Product: 35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper	$2.98
Parts Express Gold Spade Lug Crimp Terminal 8 AWG 1/4" 2 Pair	$2.98
Orion XTRPRO 1 ft 8-Gauge 100% OFC Car Audio Power Wire Red	$1.98
4-In-1 Wire Stripper 8-4 AWG with Wire Cutter and Spring Back Action	$8.98

Total Price: $16.92

This Product:35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper$2.98

Parts Express Gold Spade Lug Crimp Terminal 8 AWG 1/4" 2 Pair$2.98

Orion XTRPRO 1 ft 8-Gauge 100% OFC Car Audio Power Wire Red$1.98

4-In-1 Wire Stripper 8-4 AWG with Wire Cutter and Spring Back Action$8.98

4 ItemsTotal Price: $16.92

Overview

35A Barrier Terminal Block 6 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Easily Ground Several Devices

Use this Heavy-Duty Double Row Barrier Strip as your go-to solution for efficiently powering multiple automotive accessories or home electronics from a single power source! This versatile terminal strip is designed to streamline your wiring process, making it both effective and manageable.

Car Hookups

To begin, connect all six screws on one side of the terminal strip to the jumper bar. This setup will allow you to run a ground wire directly to the metal frame or the negative battery terminal from the same side. By doing this, you will transform the opposite side of the strip into six ground terminals, ready to power various accessory items—just be sure their total amperage does not exceed 35 amps.

Take pride in your automotive and home wiring work and enjoy the ease and efficiency that the Heavy-Duty Double Row Barrier Strip brings to your projects! You’re making a smart choice that will simplify your wiring tasks and enhance the performance of your automotive home electronic accessories.

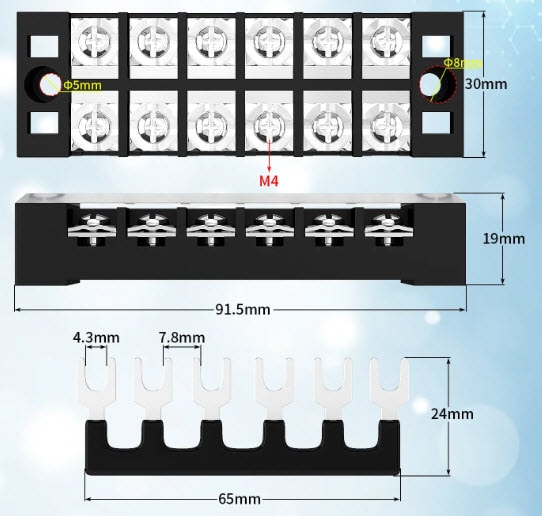

Specifications: • Dimensions: 91.5 mm (3.6") L x 30 mm (1.18") W x 19 mm (0.75") H • Individual terminal gap: 10.22 mm (0.4") • Pitch: 12 mm (0.47") • Screws: M4 • Max voltage: 600 V • Max current: 35A • Max temperature: 110° C (230° F) • Poles: 6.

Product Details
Brand	Parts Express
Part Number	090-813
UPC	848864079066
Unit of Measure	Each
Weight	0.15
