NEW 35A Barrier Terminal Block 10 Position Dual Row Screws 12 Pitch with Cover and Red Jumper

Parts Express
Part #090-816

NEW 35A Barrier Terminal Block 10 Position Dual Row Screws 12 Pitch with Cover and Red Jumper

Parts Express
Part #090-816

Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 35 amp current rating make it great for automotive power distribution. Includes a black jumper bar for quick single input with at least ten outputs.

Key Features
  • Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
  • Nickel plated copper plates provide great connectivity
  • Snap-on clear plastic cover helps prevent accidental short circuits
  • One 0.18" (4.5 mm) mounting hole on each side 5" (128 mm) apart for a secure hold

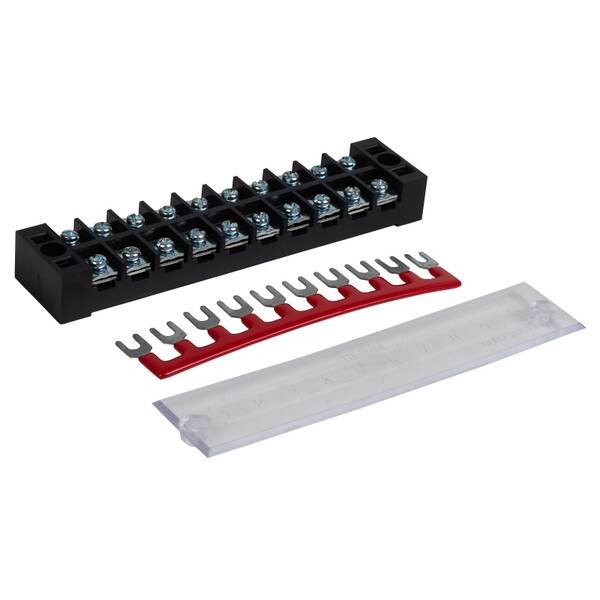

  • Includes red jumper bar which prevents having to make jumper wires and identifies polarity
NEW $3.49
MSRP: $5.99
Save $2.50 (42%)
Bulk Pricing
Quantity:Qty: 1-9 $3.49/ea
Quantity:Qty: 10+$3.14/ea
Order in the next 5 hr 14 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

35A Barrier Terminal Block 10 Position Dual Row Screws 12 Pitch with Cover and Red Jumper

Easily Power Several Devices with One Hot Wire

Use this Heavy-Duty Double Row Barrier Strip as your go-to solution for efficiently powering multiple automotive accessories or home electronics from a single power source! This versatile terminal strip is designed to streamline your wiring process, making it both effective and manageable.

Car Hookups

To begin, connect all ten screws on one side of the terminal strip with short jumper wires or the included jumper bar. This setup will allow you to run a hot wire directly to the fuse box or the positive battery terminal from the same side. By doing this, you will transform the opposite side of the strip into ten hot terminals, ready to power various accessory items—just be sure their total amperage does not exceed 35 amps.

This remarkable design eliminates the hassle of running multiple wires to a single terminal in your fuse box or battery terminal, providing a tidy and organized solution for all your needs. For optimal performance, ground each accessory item to the nearest metal chassis screw, ensuring a reliable connection every time.

Safety Features

To enhance safety, snap the clear plastic cover over the top of the terminal strip. This protective feature and the rubber coating on the jumper bar helps prevent accidental contact with metal materials, giving you peace of mind as you work on your project. For best practices, we highly recommend fusing the main hot wire to provide an additional layer of protection for your setup.

Take pride in your automotive and home wiring work and enjoy the ease and efficiency that the Heavy-Duty Double Row Barrier Strip brings to your projects! You’re making a smart choice that will simplify your wiring tasks and enhance the performance of your automotive and home electronic accessories.

Specifications: • Dimensions: 139 mm (5.5") L x 30.2 mm (1.19") W x 19.9 mm (0.76")  H • Individual terminal gap: 10.22 mm (0.4") • Pitch: 12 mm (0.47") • Screws: M4 • Max voltage: 600 V • Max current: 35A • Max temperature: 110° C (230° F) • Poles: 10.











Product Details

BrandParts Express
Part Number090-816
UPC848864079073
Unit of MeasureEach
Weight0.2
