6 Pole Single Row Solder Lug Type Barrier Terminal Strip with Cover

Parts Express
Part #090-836

6 Pole Single Row Solder Lug Type Barrier Terminal Strip with Cover

Parts Express
Part #090-836
Terminal blocks provide a convenient means of connecting individual electrical wires without the use of a splice or having to physically join wire ends. This one includes a plastic cover to prevent accidental short circuits.
Key Features
  • The base is heavy duty PA 66 (UL94V-0) thermoplastic for durability
  • Nickel plated screws for moisture resistance

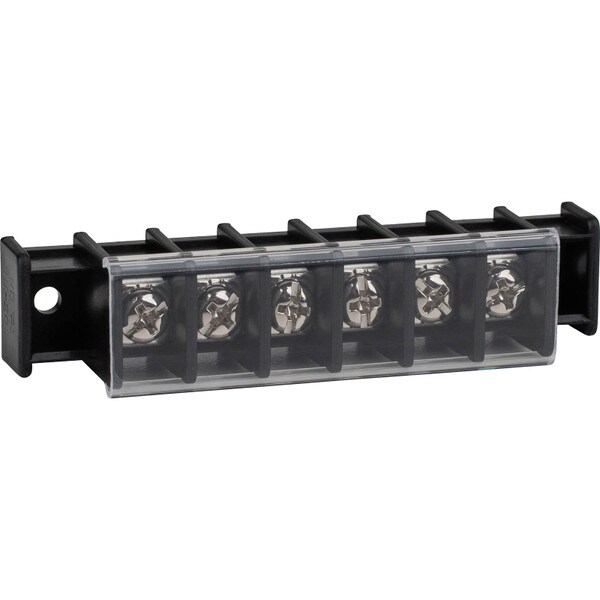

  • Includes clear cover to prevent accidental short circuit and electrical shock
  • Accepts fork/ring connectors up to 0.32" (8.2 mm) wide
  • Clamping action keeps bare wire from squirting out from under the screw
Your Price: $3.89
Bulk Pricing
Quantity:Qty: 1-9 $3.89/ea
Quantity:Qty: 10+$3.50/ea
Ships next business day. Details

386In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

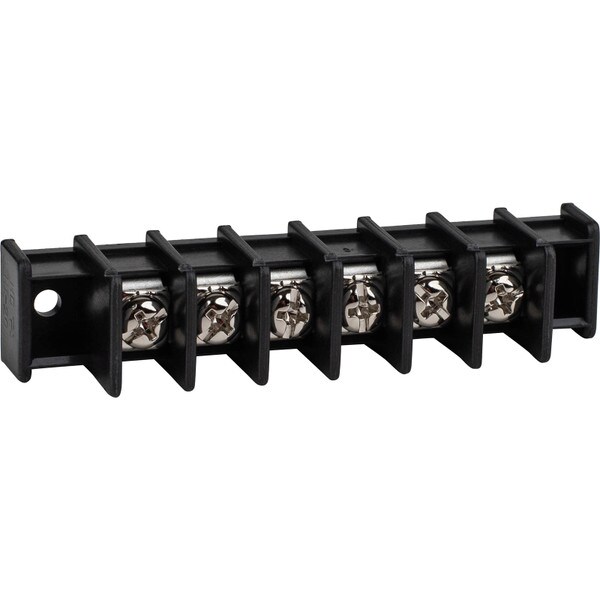

6 Pole Single Row Solder Lug Type Barrier Terminal Strip with Cover

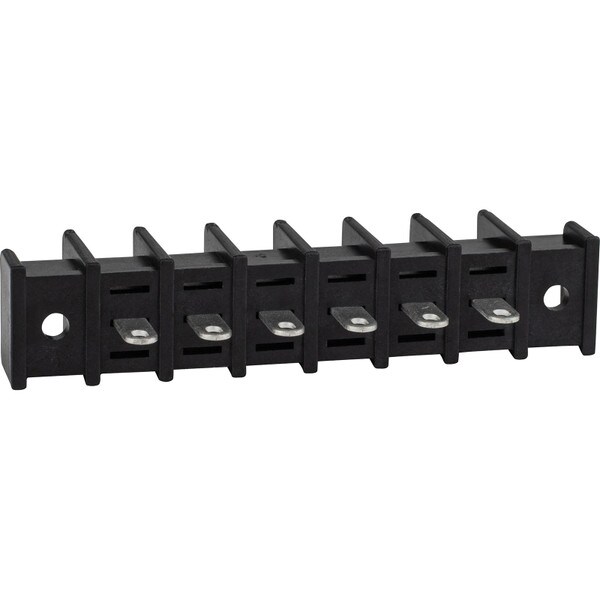

Single row, 6 pole solder type barrier strip with clear cover makes the perfect safe wiring junction. Made from heavy duty PA 66 (UL94V-0) thermoplastic, this barrier strip can handle 25A of current and 300V. Accepts 22-12 AWG wire in the 9.5 mm pitch terminal. Operating temperature is -67°~221°F (-55°~105°C). Terminals are tin plated brass and the M3.5 screws are nickel plated steel for moisture resistance. Total size is 3.08" W x 0.64" D x 0.75" H without terminals. Terminals measure 0.17" W x 0.32" D x 0.35" H and have 0.206" of space between each one. Mounting holes are 0.13" diameter and 2.6" apart from center.

Product Details

BrandParts Express
Part Number090-836
UPC848864069951
Unit of MeasureEach
Weight0.05
