NEW 35A Barrier Terminal Block 12 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Parts Express
Part #090-819

NEW 35A Barrier Terminal Block 12 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Parts Express
Part #090-819

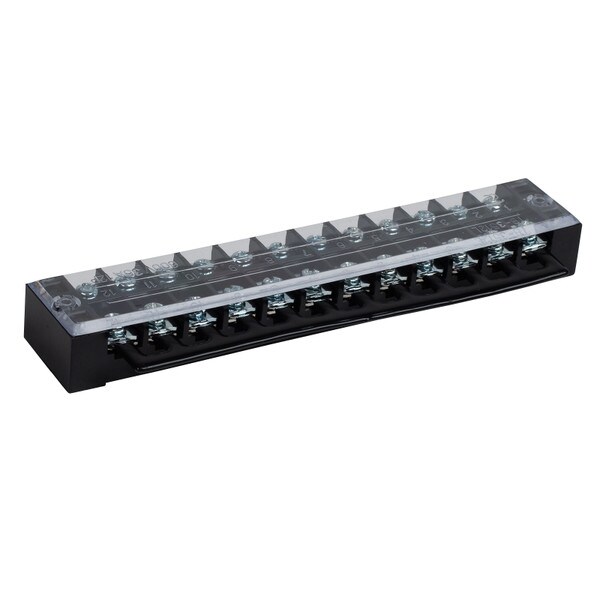

Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 35 amp current rating make it great for automotive power distribution. Includes a black jumper bar for quick single input with at least ten outputs.

Key Features
  • Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
  • Nickel plated copper plates provide great connectivity
  • Snap-on clear plastic cover helps prevent accidental short circuits
  • One 0.18" (4.5 mm) mounting hole on each side 6" (153 mm) apart for a secure hold

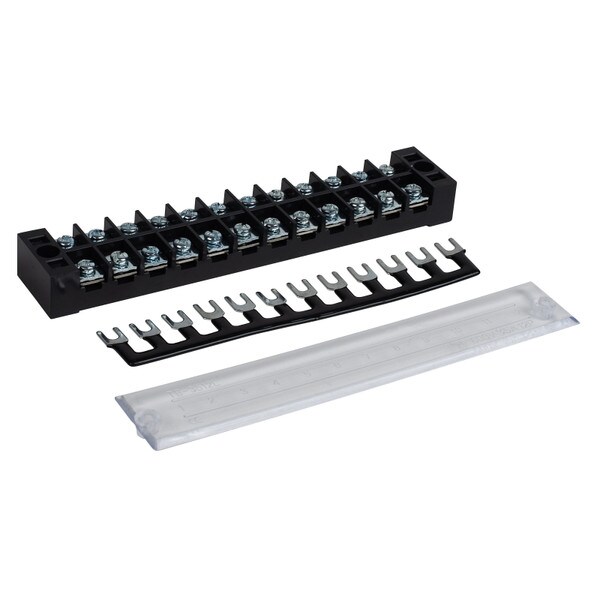

  • Includes black jumper bar which prevents having to make jumper wires and identifies polarity
NEW $3.98
MSRP: $6.99
Save $3.01 (43%)
Bulk Pricing
Quantity:Qty: 1-9 $3.98/ea
Quantity:Qty: 10+$3.58/ea
Order in the next 19 hr 53 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

35A Barrier Terminal Block 12 Position Dual Row Screws 12 Pitch with Cover and Black Jumper

Easily Ground Several Devices

Use this Heavy-Duty Double Row Barrier Strip as your go-to solution for efficiently powering multiple automotive accessories or home electronics from a single power source! This versatile terminal strip is designed to streamline your wiring process, making it both effective and manageable.

Car Hookups

To begin, connect all 12 screws on one side of the terminal strip to the jumper bar. This setup will allow you to run a ground wire directly to the metal frame or the negative battery terminal from the same side. By doing this, you will transform the opposite side of the strip into 12 ground terminals, ready to power various accessory items—just be sure their total amperage does not exceed 35 amps.

Safety Features

To enhance safety, snap the clear plastic cover over the top of the terminal strip. This protective feature and the rubber coating on the jumper bar helps prevent accidental contact with metal materials, giving you peace of mind as you work on your project. For best practices, we highly recommend fusing the main hot wire to provide an additional layer of protection for your setup.

Take pride in your automotive and home wiring work and enjoy the ease and efficiency that the Heavy-Duty Double Row Barrier Strip brings to your projects! You’re making a smart choice that will simplify your wiring tasks and enhance the performance of your automotive home electronic accessories.

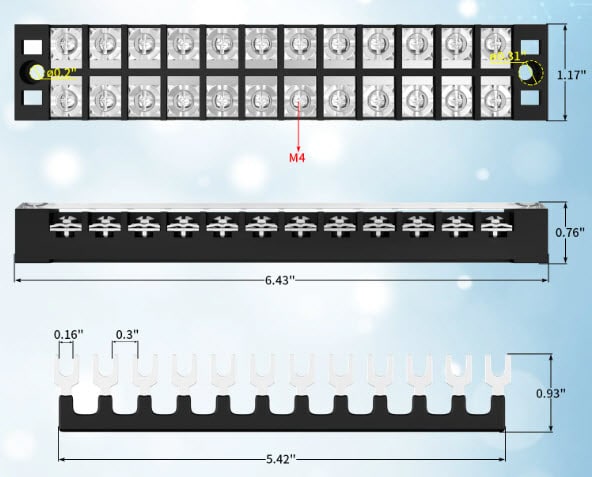

Specifications: • Dimensions: 163 mm (6.43") L x 30 mm (1.17") W x 19.3 mm (0.76")  H • Individual terminal gap: 10.22 mm (0.4") • Pitch: 12 mm (0.47") • Screws: M4 • Max voltage: 600 V • Max current: 35A • Max temperature: 110° C (230° F) • Poles: 12.











Product Details

BrandParts Express
Part Number090-819
UPC848864079103
Unit of MeasureEach
Weight0.25
