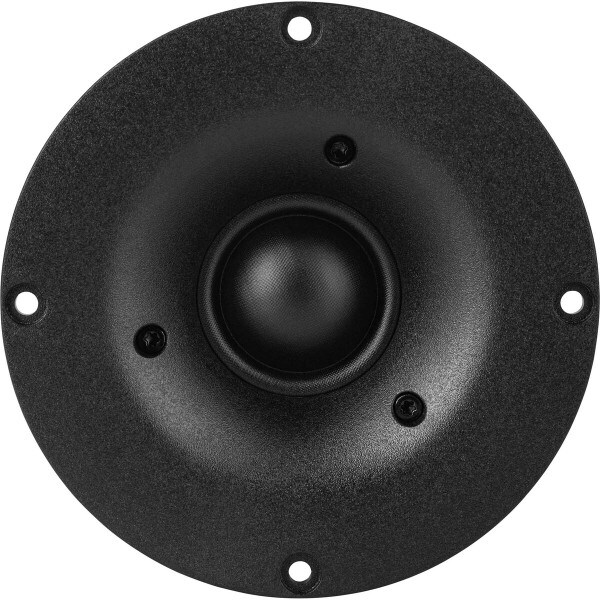

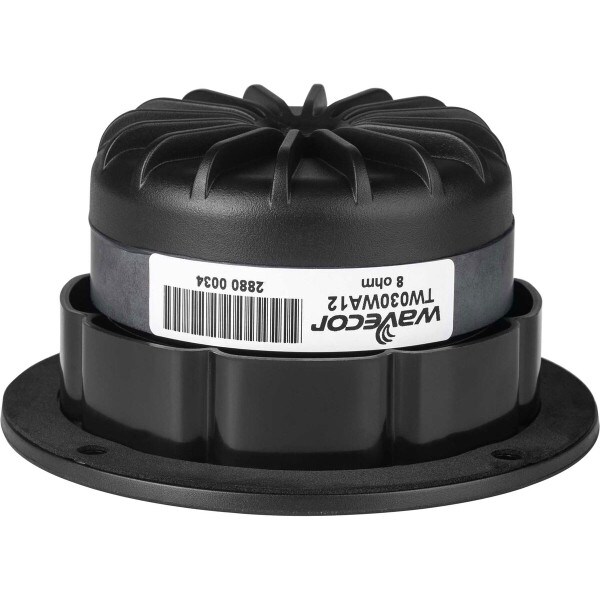

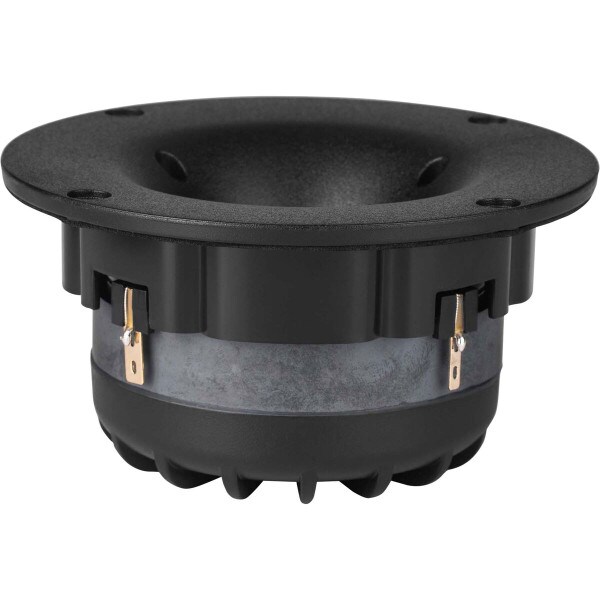

Wavecor TW030WA12 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 8 Ohm
Wavecor
Part #298-1122
Wavecor TW030WA12 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 8 Ohm
Wavecor
Part #298-1122
Model: TW030WA12
The Wavecor TW030WA12 is a 30 mm tweeter with an integrated waveguide. This tweeter is designed for the most demanding applications, where low resonant frequency, high sensitivity, power handling, controlled dispersion, and a very wide frequency range are required.
Key Features
- Waveguide face plate for controlled dispersion, offering optimized off-axis and power response
- 30 mm voice coil design with high power handling, and low resonance frequency
- Precision-coated textile diaphragm for improved consistency and high-frequency extension
- Copper clad center pole yielding very low voice coil inductance for reduced distortion and increased high frequency output
- Flexible lead wires for higher power handling and larger excursion
- Gold plated terminals to prevent oxidation and ensure long-term reliable connection
- Vented voice coil former for reduced distortion and compression
