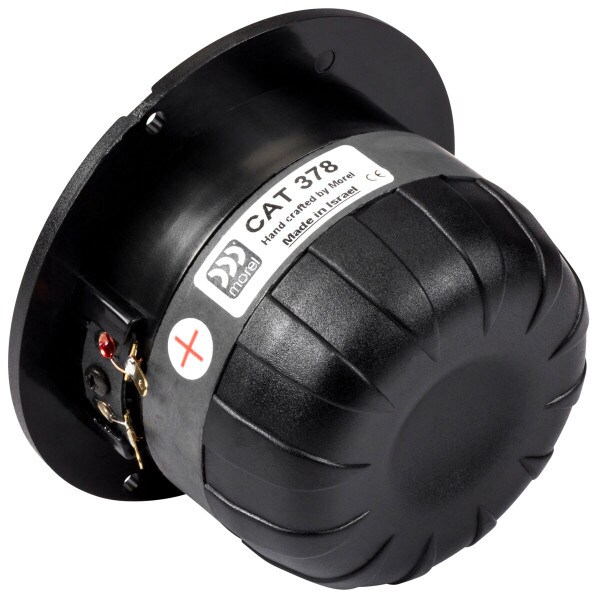

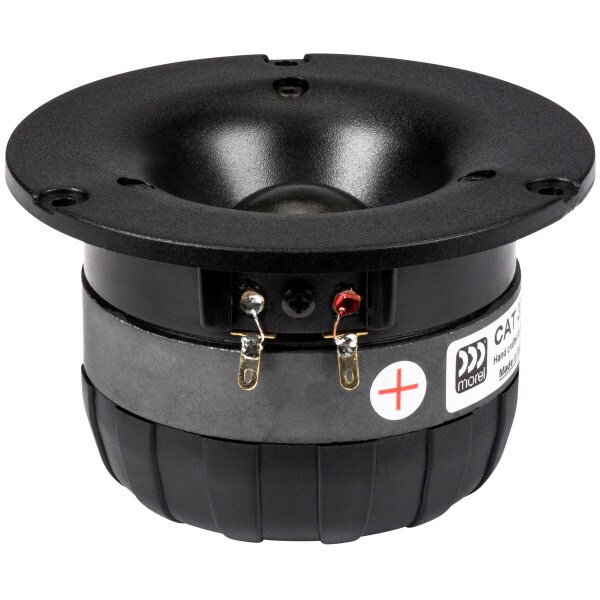

Morel CAT 378 1-1/8" Soft Dome Horn Tweeter

Name: Morel CAT 378 1-1/8" Soft Dome Horn Tweeter
Brand: Morel
SKU: 277-084
Price: 92 USD
Availability: OutOfStock
Rating: 4.7 (38 reviews)

Read 38 Reviews | 17 Questions, 85 Answers or

Morel

Part #277-084

Morel CAT 378 1-1/8" Soft Dome Horn Tweeter

Morel

Part #277-084

Model: CAT 378

Read 38 Reviews | 17 Questions, 85 Answers or

Morel's CAT378 features a hand treated 1-1/8" soft dome, horn loaded for higher efficiency and high dynamic range without power compression.

Key Features

94 mm wide dispersion horn-loading faceplate
Large Hexatech&#153 aluminum voice coil allows high power handling
High efficiency design for dynamic output

Product Details

Brand

Morel

Model

CAT 378

Part Number

277-084

UPC

844632070761

Unit of Measure

Each

Weight

1.45

Product Specifications

Cone / Dome Diameter

1.125"

Cutout Diameter

2.83

Tweeter Type

Soft Dome

Power Handling (RMS)

200 Watts

Impedance

8Ω

Frequency Response

1,800 to 20,000Hz

Sensitivity

93dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)

700Hz

DC Resistance (Re)

5.2Ω

Voice Coil Inductance (Le)

0.09mH

Mounting Information

Overall Outside Diameter

3.70"

Depth

2.32"
