CLEARANCE U.S. Acoustics Mai 4 x 50 Watt + 1 x 300 Watts 5 Channel Amplifier

U.S. Acoustics
Part #268-9022

CLEARANCE U.S. Acoustics Mai 4 x 50 Watt + 1 x 300 Watts 5 Channel Amplifier

U.S. Acoustics
Part #268-9022
Model: Mai

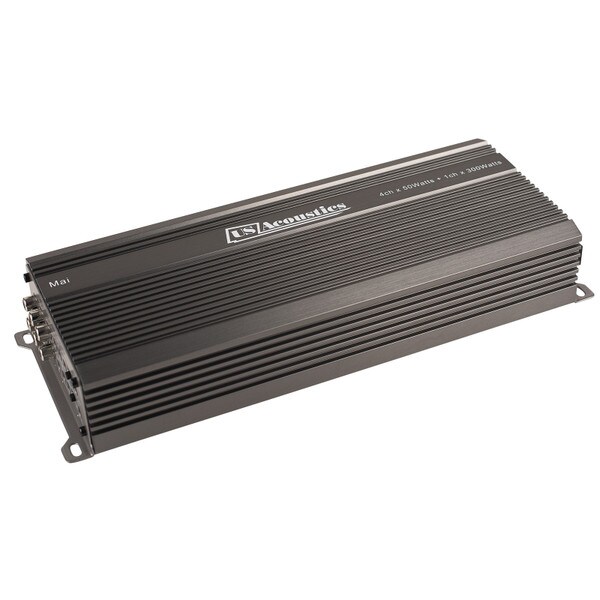

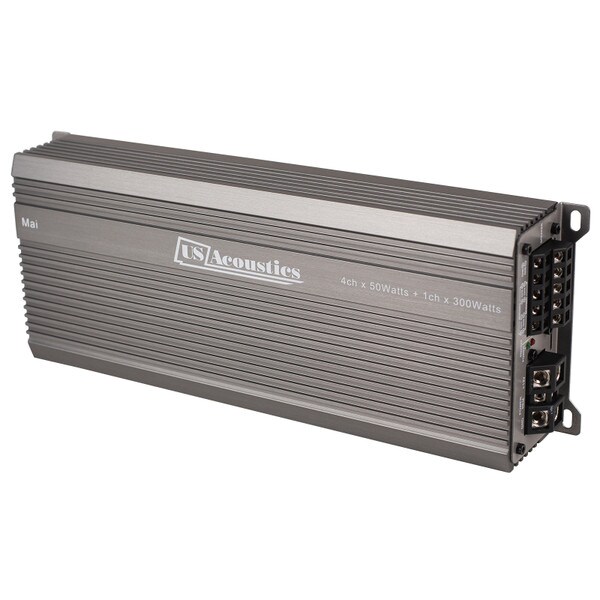

The US Acoustics Mai Compact Class D Amplifier is a powerful 4-channel solution designed for car audio enthusiasts seeking reliable performance in a compact design. Combining high-quality sound with efficient operation, the Mai's space-saving build and advanced features make it ideal for installations where size and performance are critical.

Key Features
  • Compact design for easy integration into tight spaces

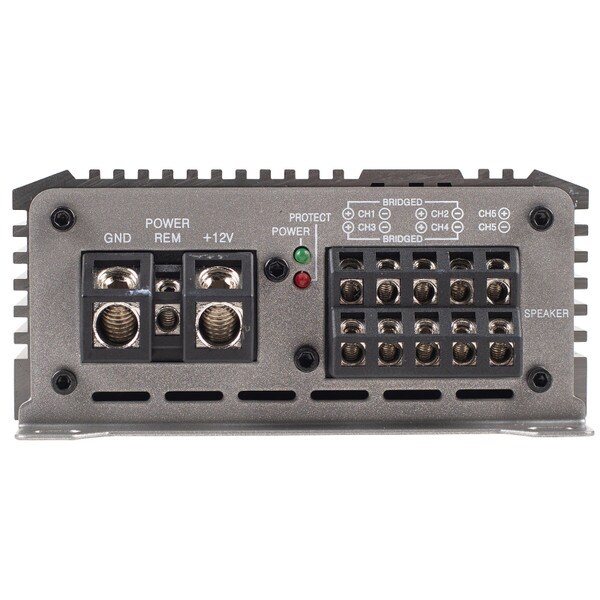

  • Angled terminals for clean and professional wiring setups
  • Conformal coated PCB for durability in harsh environments, including marine and motorcycle usage
  • Comprehensive protection circuitry for thermal, short circuit, and DC offset issues

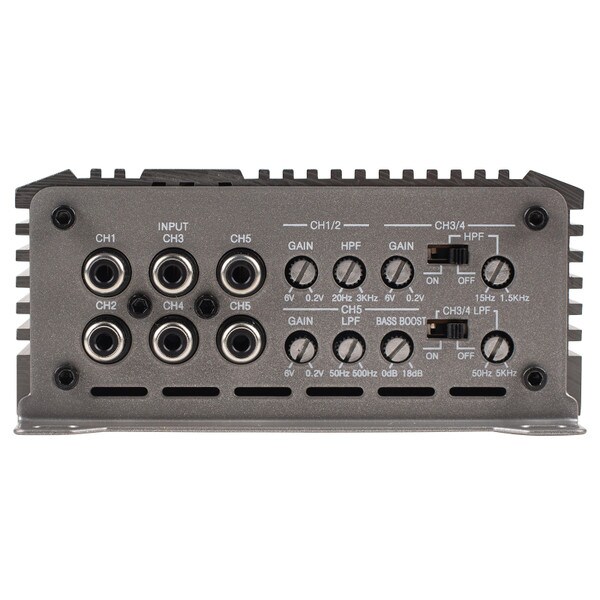

  • High-pass and low-pass crossover controls for precise frequency adjustment
  • Diagnostic LED indicators for real-time system monitoring
CLEARANCE $399.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 1 hr 41 min to ship today. Details

4In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

U.S. Acoustics Mai 4 x 50 Watt + 1 x 300 Watts 5 Channel Amplifier

Mai


The Mai amplifier is engineered for versatility. Its high-pass and low-pass crossover filters allow for precise frequency management, ensuring a balanced audio profile tailored to your system's needs. Angled terminals simplify installation while maintaining a professional appearance.

Built to withstand challenging environments, the Mai amplifier features a conformal coated PCB for protection against moisture and contaminants, making it suitable for marine and motorcycle applications. Advanced protection circuitry safeguards the amplifier against thermal overload, short circuits, and DC offset, ensuring reliable performance in demanding conditions. Diagnostic LED indicators keep you informed of the amplifier's status, providing peace of mind during operation.

With its compact dimensions, robust power output, and advanced features, the US Acoustics Mai amplifier is an excellent choice for car audio enthusiasts who value both performance and practicality. Whether for high-end audio systems or compact installations, the Mai amplifier delivers exceptional sound quality and reliable operation.


Specifications

  • RMS per channel at 4 Ohms: 50 W x 4 CH
  • RMS per channel at 2 Ohms: 80 W x 4 CH
  • RMS Bridged Mono at 4 Ohms: 160 W x 2 CH
  • RMS Mono at 1 Ohm: 300 W x 1 CH
  • Input Sensitivity: 200mV - 6.0V
  • Frequency Response: 10Hz - 22KHz +/- 0.5dB
  • Total Harmonic Distortion (THD): >0.5%
  • Signal-to-Noise Ratio (SNR): > 96 dB
  • Channel Separation: > 70 dB

  • Damping Factor @100Hz 4 ohm: > 100
  • Crossover Range: CH 3&4, CH 1&2
  • High Pass, 12dB/Octave: 20 Hz - 3K Hz, Ch 1 & 215 Hz - 1.5K Hz, CH 3 & 4
  • Low Pass, 24dB/Octave: 50 Hz - 5K Hz, CH 3 & 4
  • Low Pass, 24dB/Octave: 50 Hz - 500 Hz, CH 5
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz): No
  • Wired remote bass control included: No
  • Phase Shift (0 - 180 degrees): No
  • Fusing: 1 x 70A
  • Size (L x W x H): 11.41" x 4.68" x 2.04"

Product Details

BrandU.S. Acoustics
ModelMai
Part Number268-9022
UPC702458693260
Unit of MeasureEach
Weight5.45
