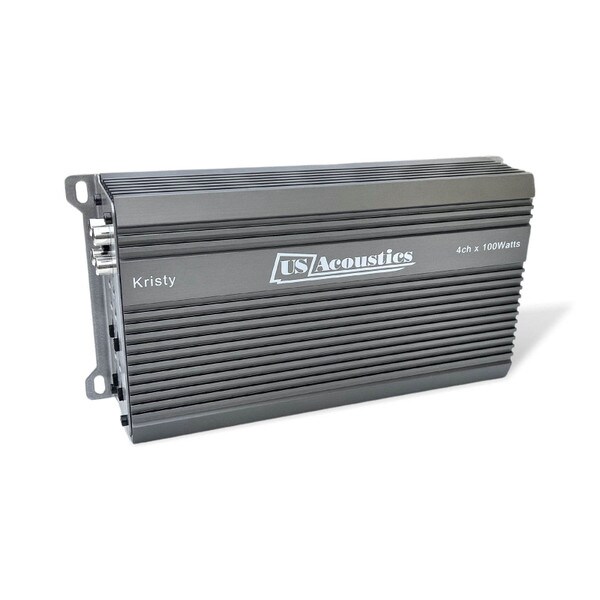

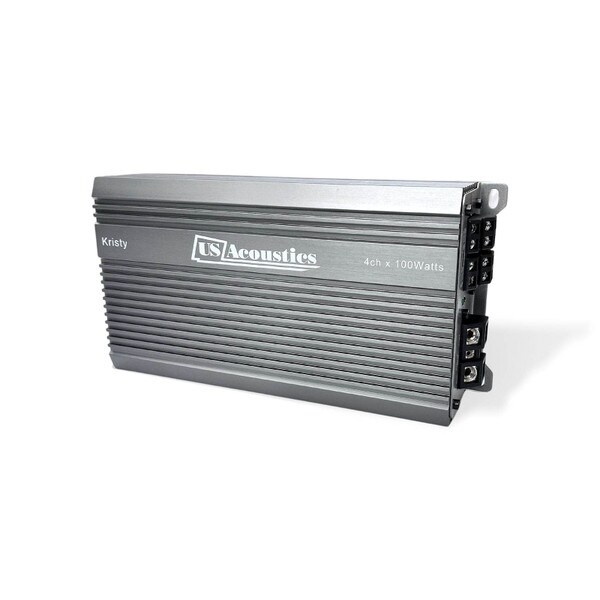

NEW U.S. Acoustics Kristy 4 x 100 Watt 4 Channel Amplifier

U.S. Acoustics
Part #268-9020

NEW U.S. Acoustics Kristy 4 x 100 Watt 4 Channel Amplifier

U.S. Acoustics
Part #268-9020
Model: Kristy

The US Acoustics Kristy 4-Channel Compact Class D Amplifier is a powerful and space-saving solution for enhancing your car audio system. Built for reliability and flexibility, the Kristy amplifier combines advanced features and robust construction to meet the demands of modern audio setups in cars, motorcycles, or even marine applications.

Key Features
  • Compact design optimized for installations with limited space

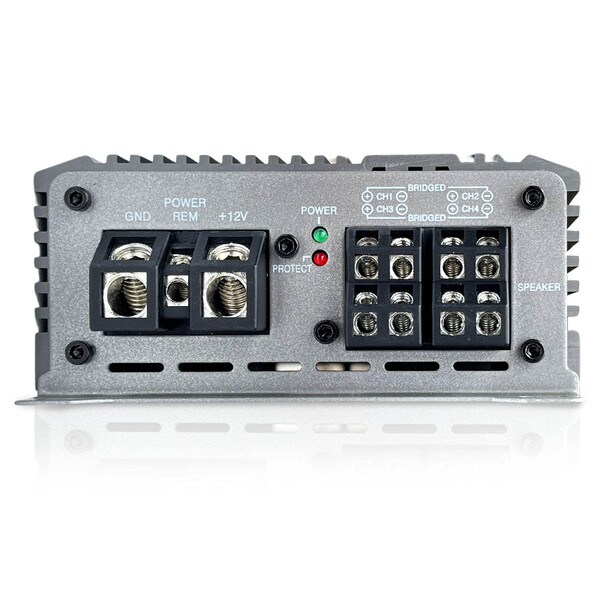

  • Angled terminals for clean and professional wiring setups
  • Conformal coated PCB for protection against moisture and contaminants
  • Diagnostic LEDs for real-time status monitoring
  • Built-in protection circuitry against DC offset, short circuits, and thermal overload

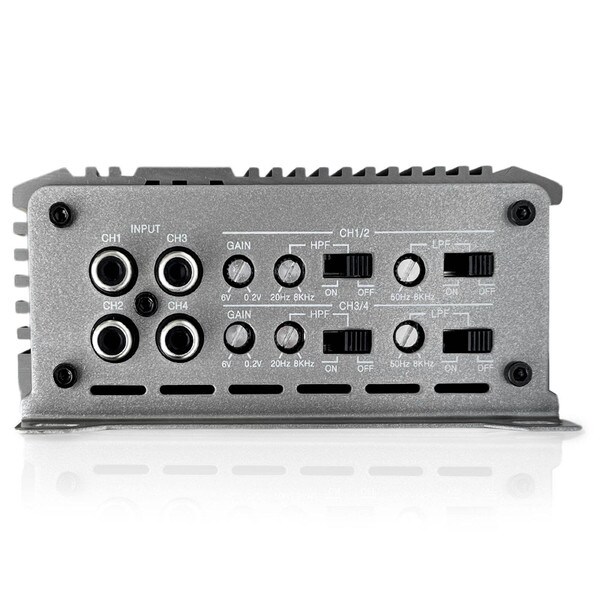

  • Crossover controls for high-pass and low-pass frequency management
NEW $299.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 4 hr 2 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

U.S. Acoustics Kristy 4 x 100 Watt 4 Channel Amplifier

Kristy


The Kristy amplifier offers exceptional versatility with its high-pass and low-pass crossover filters allow precise frequency tuning, ensuring a balanced audio experience tailored to your system’s needs. The angled terminals not only simplify installation but also enhance the professional appearance of your setup.

Built to withstand challenging environments, the Kristy amplifier features a conformal coated printed circuit board for durability against moisture and contaminants, making it suitable for use in marine or motorcycle applications. Its advanced protection circuitry safeguards your system from DC offset, thermal overload, and other potential issues, ensuring reliable performance. With a compact design and robust feature set, the US Acoustics Kristy amplifier is the perfect choice for delivering high-fidelity audio in any vehicle.

Specifications

  • RMS per channel at 4 Ohms: 100 W x 4 CH
  • RMS per channel at 2 Ohms: 165 W x 4 CH
  • RMS Bridged Mono at 4 Ohms: 330 W x 2 CH
  • RMS Mono at 1 Ohm: N/A
  • Input Sensitivity: 200mV - 6.0V
  • Frequency Response: 10Hz - 30KHz +/- 0.5dB
  • Total Harmonic Distortion (THD): >0.5%
  • Signal-to-Noise Ratio (SNR): > 91 dB
  • Channel Separation: > 70 dB

  • Damping Factor @100Hz 4 ohm: > 100
  • Crossover Range: CH 3&4, CH 1&2
  • High Pass, 12dB/Octave: 20 Hz - 8K Hz
  • Low Pass, 24dB/Octave: 50 Hz - 8K Hz
  • Band Pass: N/A
  • Variable Bass Boost: No
  • Wired remote bass control included: No
  • Phase Shift (0 - 180 degrees): No
  • Fusing: 2 x 60A
  • Size (L x W x H): 8.26" x 4.68" x 2.04"

Product Details

BrandU.S. Acoustics
ModelKristy
Part Number268-9020
UPC702458693277
Unit of MeasureEach
Weight4.15
