TPS3116D2 Class D 2.1 Bluetooth 5.0 Amplifier Board 2 x 50W + 100W with Filter and Volume Controls

Parts Express
Part #320-635

TPS3116D2 Class D 2.1 Bluetooth 5.0 Amplifier Board 2 x 50W + 100W with Filter and Volume Controls

Parts Express
Part #320-635
Model: TPS3116D2
Enjoy creating new audio projects with this all-in-one, easy to use 5.0 Bluetooth 2.1 channel small amplifier board with bass, treble, and variable low pass filter controls. It delivers 50W into stereo channels and an additional 100W into a mono subwoofer channel for making a big sounding boom box, portable speaker, or even a mobile power amp.
Key Features
  • 12 to 24 VDC for versatility
  • DC power jack, 3.5 mm Aux-in jack, and Phoenix speaker connectors for quick hookup

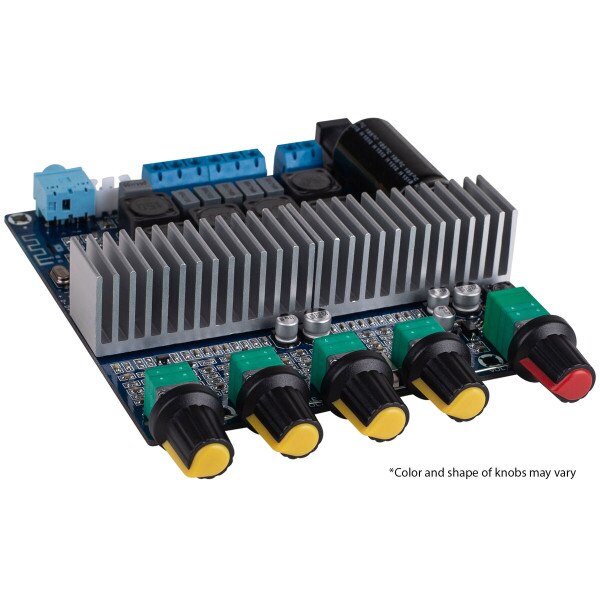

  • Built-in master volume, treble, satellite volume, subwoofer volume, and low-pass filter potentiometers for sound customization
  • Pre-assembled and pre-tested for easy project integration
  • Class D efficiency and wireless 5.0 Bluetooth in one compact size board
  • Easily switch between Bluetooth and line-in source by pushing and holding in the master volume control for three seconds
  • 6 dB drop/octave at 150 Hz high pass filter switch, protects the satellite speakers
Similar items that may interest you:
See all items in Audio Amplifier Boards & Modules
Your Price: $29.98
MSRP: $54.99
Save $25.01 (45%)
Bulk Pricing
Order in the next 7 hr 10 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

TPS3116D2 Class D 2.1 Bluetooth 5.0 Amplifier Board 2 x 50W + 100W with Filter and Volume Controls

Make your own 2.1 multimedia wireless Bluetooth amplifier or portable speaker with this 2 x 50W + 100W amplifier board. The board accepts 12 VDC to 24 VDC which makes it perfect for making home or mobile audio projects. Make your audio project truly portable by adding three to five 18650 Li-Ion batteries.

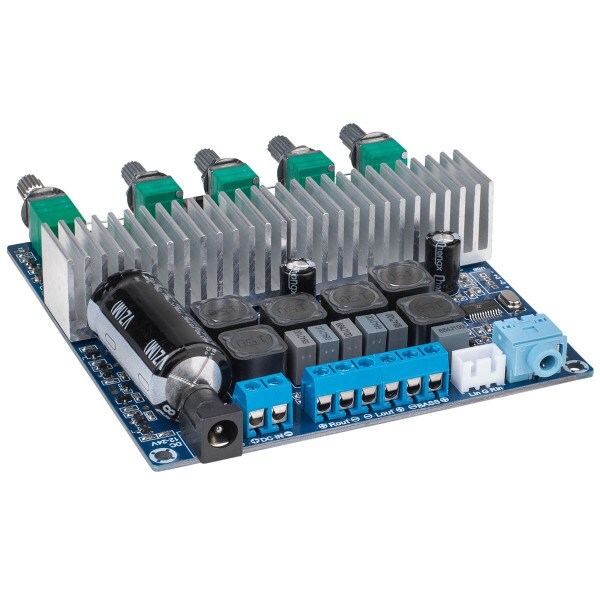

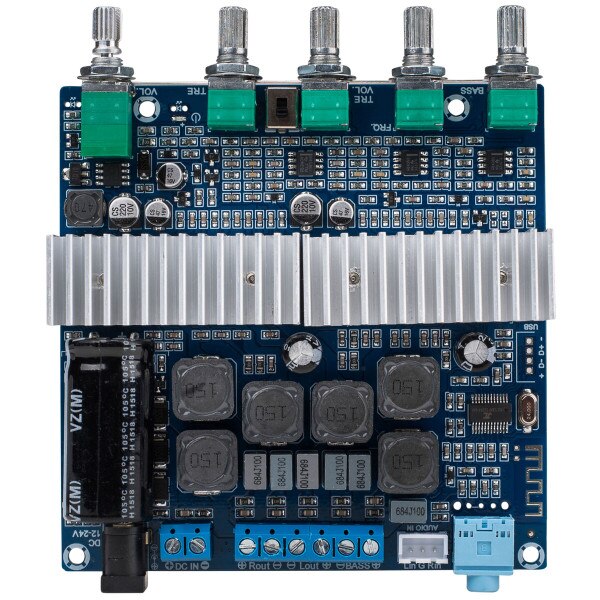

These boards are pre-tested and pre-assembled, which makes your project easy to complete. The on-board jacks, potentiometer, and screw terminals let you get this board powered up and playing music in minutes. Just connect your power source using a 2.1 x 5.5 mm DC power plug, a 3.5 mm stereo audio source, and run speaker wire from the six screw terminals to you speakers and you're done. For the most wattage output use 120-055 24 VDC power adapter. If you don't want to use the 3.5 mm jack, an optional 3-pin connector for internal line-in audio is available (wiring harnesses not included). Push and hold in the master volume control for three seconds to switch from Bluetooth to line-in source. Push in master volume control to switch back to Bluetooth. Use the built-in 150 Hz high pass filter switch on the board to protect your satellite speakers.

Specifications: • Power output: 2 x 50W + 1 x 100W @ 4 ohms • Impedance: 4 ohm for satellites and 3-4 ohm for subwoofer • Chip: TPA3116*2 • SNR: 100 dB • Frequency response: 20-20,000 Hz • Signal input: 3.5 mm stereo jack or 3-pin socket • Signal output: 6 screw terminals • Power requirements: 12-24 VDC • Maximum current draw 3A • Quiescent current: 60 mA • Power input: 2.1 mm x 5.5 mm DC jack • Dimensions (not including potentiometer): 3.94" W x 0.9" H x 3.94" D • Potentiometer shaft length: 0.6" and master volume 0.64" without knobs • Bluetooth: V5.0+BR+EDR.

Product Details

BrandParts Express
ModelTPS3116D2
Part Number320-635
UPC848864051222
Unit of MeasureEach
Weight0.5

Product Specifications

Board Type2.1 Channel Amp
Power (RMS/Channel 8 ohms)26 - 50 Watts
Special FeaturesBluetooth-Volume / Tone Control
