The Workhorse Passive GRS 8" Mini Subwoofer Kit

Parts Express
Part #300-7326

The Workhorse Passive GRS 8" Mini Subwoofer Kit

Parts Express
Part #300-7326

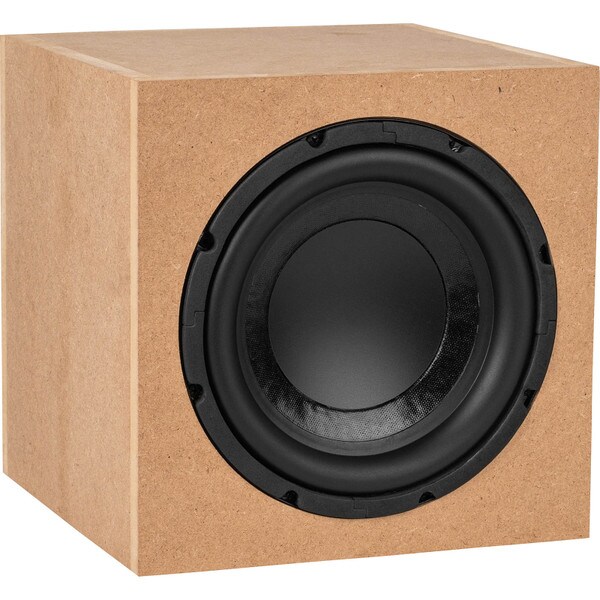

Occupying only 0.35 cubic feet, this Workhorse passive mini 8" subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the brand new GRS 8SW-4HE 8" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.
Key Features
  • Extremely compact design will fit almost anywhere
  • Use multiples to help minimize room modes for more even, room-filling low end
  • High excursion GRS 8SW-4HE 8" driver provides powerful output capability
  • CNC-cut 3/4" MDF panels for precise fit, easy assembly, and smooth finish

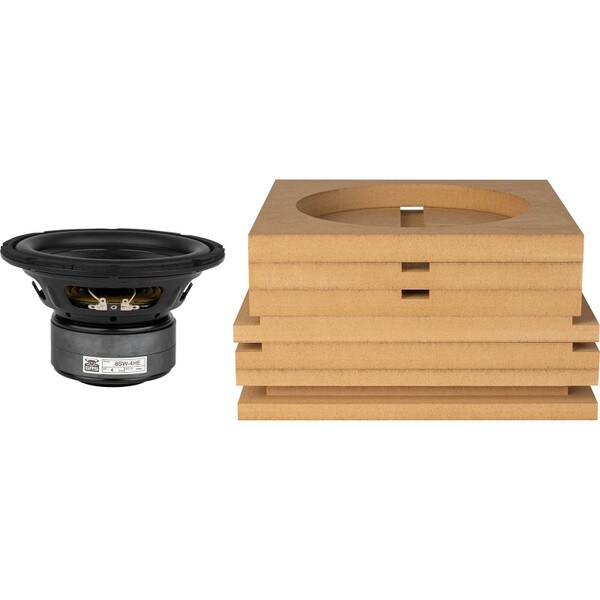

  • Kit includes pre-cut knock down enclosure, subwoofer driver, and mounting screws.
Your Price: $124.98
+ FREE SHIPPING
MSRP: $219.98
Save $95.00 (43%)
Bulk Pricing

Out of Stock

Expected back in stock any day
Free Shipping available on orders over $99.00 in the US. Details

Overview

The Workhorse Passive GRS 8" Mini Subwoofer Kit

Housed in just a 10” cube, the Workhorse GRS 8SW-4HE 8" Passive Mini Subwoofer Kit is the perfect solution for providing high performance bass response without taking up much space. With the high excursion GRS 8SW-4HE 8" subwoofer driver you can expect incredibly accurate response with low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

The GRS Workhorse is ideal for adding bass wherever you need it; the garage, a basement, a bedroom, etc. It will excel at it's job and not complain, all while not emptying your wallet.

Simulated Performance Specifications: • Maximum output: 106.5 dB • F3: 46 Hz • F10: 29 Hz

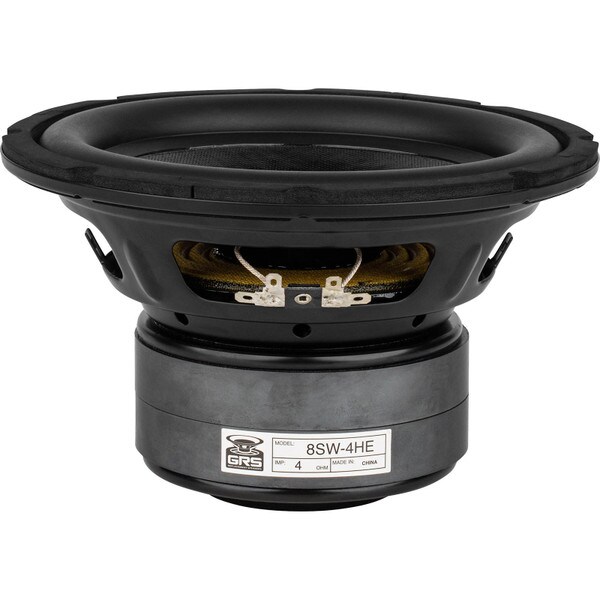

GRS 8SW-4HE 8" Subwoofer Specifications: • Power handling: 150 watts RMS/300 watts max • Le: 2.7 mH • Impedance: 4 ohms • Re: 3.8 ohms • Frequency range: 30 to 700 Hz • Fs: 24.9 Hz • SPL: 85 dB 2.83V/1m • Vas 1.12 cu. ft. • Qms: 4.42 • Qes: .51 • Qts: .45 • Xmax: 10.8 mm.

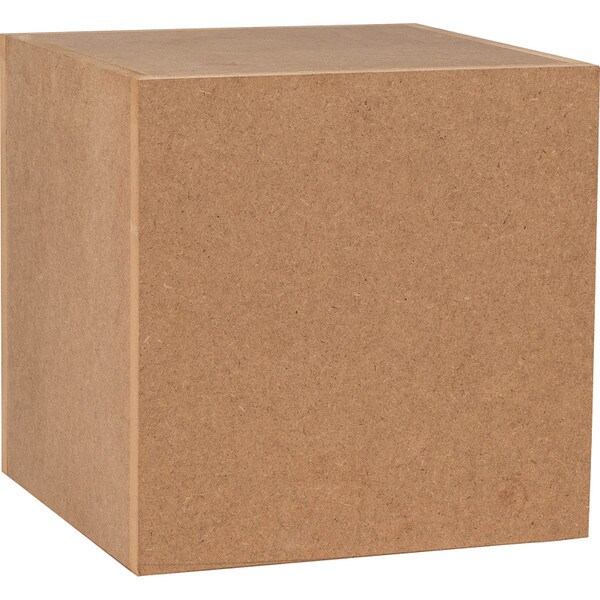

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 0.35 cubic feet • External dimensions: 10" H x 10" W x 10" D • Weight: 23 lbs. • Made in the USA.

Note: Binding posts and cabinet feet are not included.

Product Details

BrandParts Express
Part Number300-7326
UPC848864071961
Weight8.35

Product Specifications

Cabinet Dimensions (HxWxD)10" H x 10" W x 10" D
Cabinet OptionsUnfinished/Unassembled
ConfigurationSubwoofer
Speaker TypePassive / Unpowered
Woofer Diameter8"
