Hi-Output Passive Dayton Audio Reference 8" Mini Subwoofer Kit

1 Question, 1 Answer or
Parts Express
Part #300-7320

Hi-Output Passive Dayton Audio Reference 8" Mini Subwoofer Kit

Parts Express
Part #300-7320
1 Question, 1 Answer or
Occupying only 0.35 cubic feet, this Hi-Output passive mini 8" subwoofer kit will deliver surprisingly powerful output making it a perfect addition to smaller stereo and home theater systems. With the impressive Dayton Audio RSS210HO-4 8" driver and precision CNC cut compact enclosure, this system can be used as a dedicated subwoofer, or used as a small separate woofer bin in a multi-way design.
Key Features
  • Extremely compact design will fit almost anywhere
  • Use multiples to help minimize room modes for more even, room-filling low end
  • High excursion Dayton Audio RSS210HO-4 8" driver provides powerful output capability
  • CNC-cut 3/4" MDF panels for precise fit, easy assembly, and smooth finish

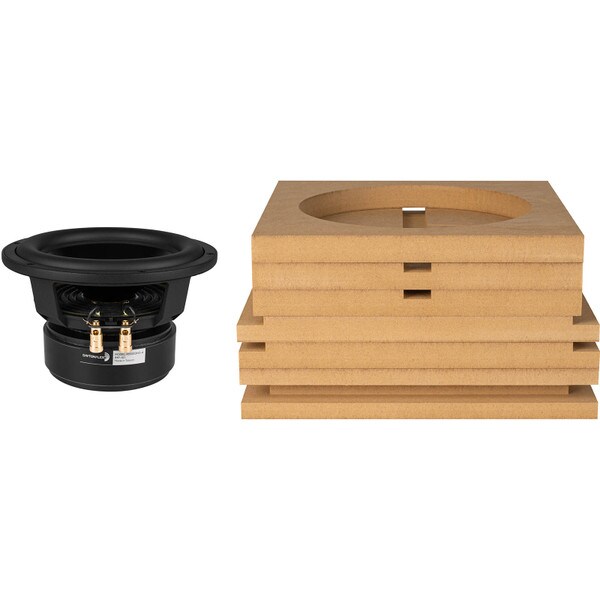

  • Kit includes pre-cut knock down enclosure, subwoofer driver, and mounting screws.
Your Price: $219.98
+ FREE SHIPPING
MSRP: $334.98
Save $115.00 (34%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Hi-Output Passive Dayton Audio Reference 8" Mini Subwoofer Kit

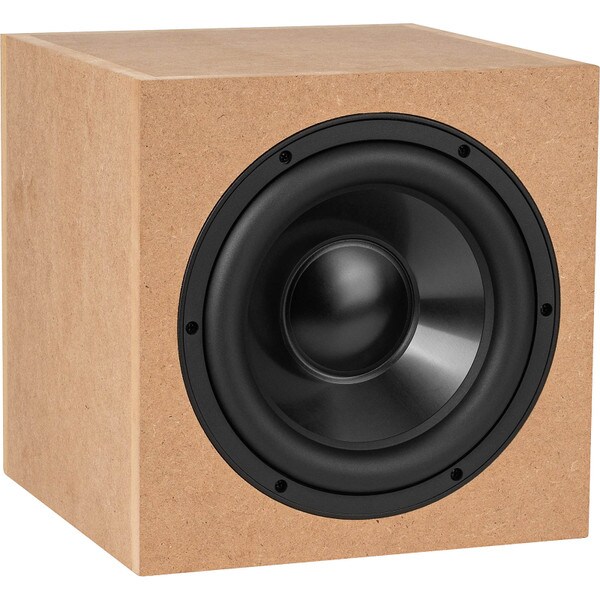

Housed in just a 10” cube, the Hi-Output Dayton Audio RSS210HO-4 8" Passive Mini Subwoofer Kit is the perfect solution for providing high output bass response without taking up much space. With the high excursion Dayton Audio RSS210HO-4 8" subwoofer driver you can expect incredibly accurate response with low distortion. Thanks to the small size this subwoofer is ideal for using multiples strategically positioned around rooms to minimize room nodes (null and peaks) for more even bass distribution.

This is an all-around overachiever. It will eat power for breakfast and ask for seconds, all while sounding fantastic. This sub leaves nothing on the table. It will perform well for almost any application providing the ultimate in output capabilities in a tiny package.

Simulated performance specifications: • Maximum output: 105.2 dB • F3: 50 Hz • F10: 29 Hz

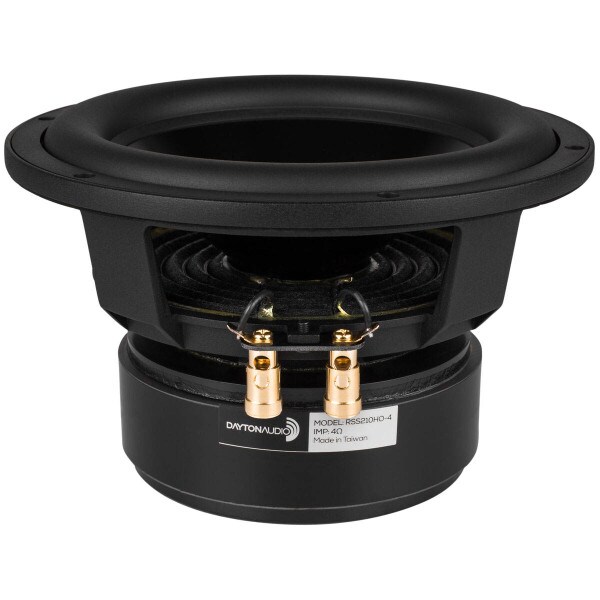

Dayton Audio RSS210HO-4 8" Subwoofer Specifications: • Power handling: 300 watts RMS/600 watts max • Le: 0.99 mH • Impedance: 4 ohms • Re: 3.6 ohms • Frequency range: 30 to 1,500 Hz • Fs: 29.6 Hz • SPL: 85.7 dB 2.83V/1m • Vas 0.66 cu. ft. • Qms: 3.33 • Qes: 0.46 • Qts: 0.40 • Xmax: 11 mm.

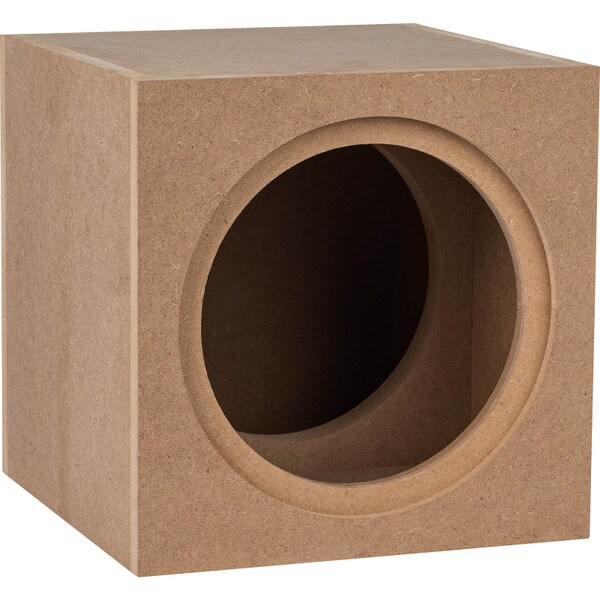

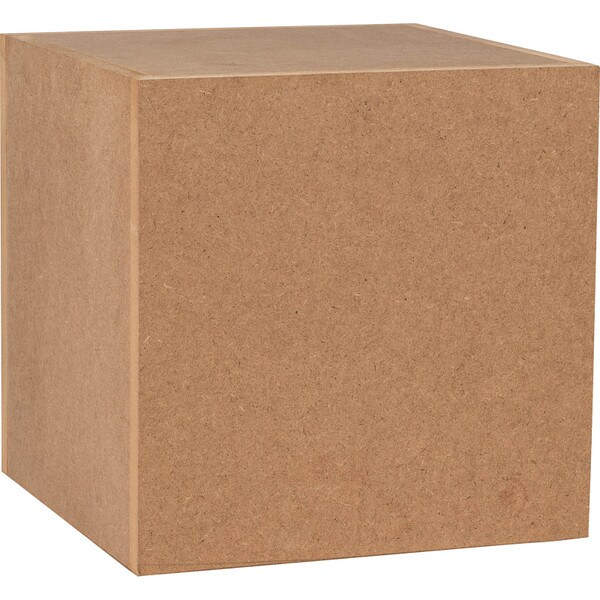

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 0.35 cubic feet • External dimensions: 10" H x 10" W x 10" D • Weight: 23 lbs. • Made in the USA.

Note: Binding posts and cabinet feet are not included.

Product Details

BrandParts Express
Part Number300-7320
UPC848864071978
Weight11.7

Product Specifications

Cabinet Dimensions (HxWxD)10" H x 10" W x 10" D
Cabinet OptionsUnfinished/Unassembled
ConfigurationSubwoofer
Speaker TypePassive / Unpowered
Woofer Diameter8"
