Passive Aggressive Mini Speaker Kit Pair

Parts Express
Part #300-7148

Passive Aggressive Mini Speaker Kit Pair

Parts Express
Part #300-7148
Model: Passive Aggressive
With one of the smallest footprints of any speaker available, the tiny Passive Aggressive speaker kit will amaze you with its output, clarity, extension and room filling capabilities. This kit is ideal for a small desktop or room where a subwoofer will not fit or is not required. Utilizing the Dayton ND91-4 active woofer matched with a pair of ND90-PR passive radiators, this kit plays to an incredibly deep 50 Hz in a very small package.
Key Features
  • High excursion Dayton Audio ND91-4 driver delivers surprising output and extension
  • Dual passive radiators allow for a lower tuning frequency than possible with a port
  • A Dayton Audio ND20FB-4 tweeter provides crisp, clear highs and loads of detail
  • A tiny footprint means these will fit just about anywhere
  • Customize the precision cut CNC enclosure to fit any décor
  • A perfect match with any of our small Dayton desktop amplifiers
Your Price: $169.98
+ FREE SHIPPING
MSRP: $250.00
Save $80.02 (32%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Passive Aggressive Mini Speaker Kit Pair

Passive Aggressive Mini Speaker Kit Pair

Do you want BIG sound in a tiny space? Look no further than the Passive Aggressive speaker kit. This kit is the ultimate definition of “big things coming in small packages”. Designed in-house by Dayton Audio engineers, this tiny kit will amaze you with is clarity, output and bass extension. A single Dayton Audio ND91-4 high excursion woofer handles bass and midrange frequencies. With a self-shielding Neo-Balanced motor structure and copper alloy shorting rings, this small woofer provides very low distortion and incredible excursion capabilities. Mated to a pair of ND90-PR passive radiators, this kit reaches lower than anyone would expect in an enclosure this size. The compact but accurate Dayton Audio ND20FB-4 tweeter fills out the top end with crystal clear highs that do not fatigue, even at higher volumes. These are all brought together with a custom designed second-order crossover for a nice smooth woofer-tweeter transition. The locally sourced 1/2" MDF enclosure panels are all CNC milled for tight tolerances ensuring easy enclosure assembly.

This kit includes parts to build a pair of speakers.

Features:

  • High excursion Dayton Audio ND91-4 driver delivers surprising output and extension
  • Dual passive radiators allow for a lower tuning frequency than possible with a port
  • A Dayton Audio ND20FB-4 tweeter provides crisp, clear highs and loads of detail
  • A tiny footprint means these will fit just about anywhere
  • A perfect match with any of our small Dayton desktop amplifiers

Customer Comments:

"The website talks about how you'll be surprised at how much bass you'll get from such a small driver in such a small enclosure. And it is surprising and impressive... I'm very impressed with the Dayton Audio ND20FB-4 tweeter. Balanced, neutral, without any glare, it's really nice.." -Salt L ⋆⋆⋆⋆⋆
"They truly sound a lot bigger than they are, that’s a lot of bass output for a tiny woofer so the passive radiators really work. Nice top end, too, and the combination really puts a shine on vocals." -Edward T ⋆⋆⋆⋆⋆
" These are absolutely outstanding little desktop speakers and a real joy to build. They have a warm, rich sound." -Brian B ⋆⋆⋆⋆⋆

Meet the Designer:

Matt Phillips

Customer Projects:

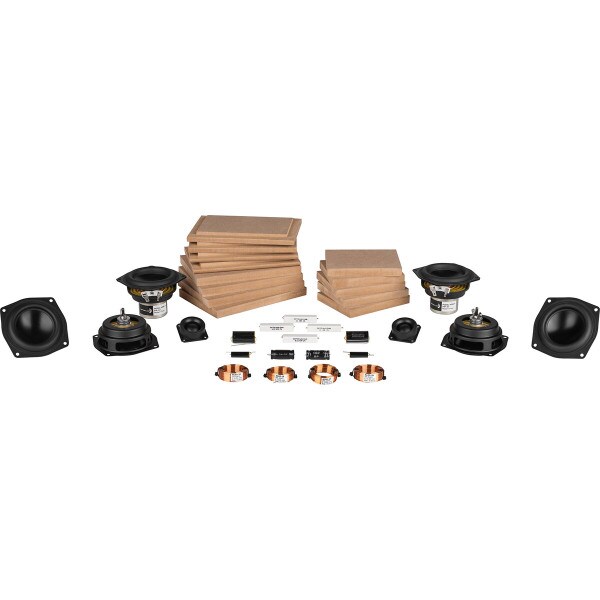

Kit Components:

Part #QTY.Description
027-4202Dayton Audio DMPC-3.3 3.3uF 250V Polypropylene Capacitor
027-406
2Dayton Audio DMPC-0.47 0.47uF 250V Polypropylene Capacitor
027-354250uF 100V Non-Polarized Capacitor
004-32Dayton Audio DNR-3.0 3 Ohm 10W Precision Audio Grade Resistor
004-9.12Dayton Audio DNR-9.1 9.1 Ohm 10W Precision Audio Grade Resistor
257-0222Dayton Audio AC20-15 0.15mH 20 AWG Air Core Inductor Coil
257-0362Dayton Audio AC20-50 0.50mH 20 AWG Air Core Inductor Coil
290-2242Dayton Audio ND91-4 3-1/2" Aluminum Cone Full-Range Driver 4
275-0352Dayton Audio ND20FB-4 Rear-Mount 3/4" Soft Dome Neodymium Tweeter
290-2094Dayton Audio ND90-PR 3-1/2" Aluminum Cone Passive Radiator
091-12452Dayton Audio BPA-38G HD Binding Post Pair Gold
081-423125-Pack #6 x 3/4" Pan Head Deep Thread Black Screws
101-7804Consolidated 16 AWG 2-conductor Power Speaker Wire 1 ft. (Red/Black)

Note: Screws, terminals, and speaker wire are included with this kit. Crossover components may be substituted with parts of equal or higher quality depending on available inventory.

Specifications:

  • Power: 40 watts RMS/80 watts max
  • Frequency response:  ±4 dB from 75-20,000 Hz
  • Impedance: 4 Ohm
  • Sensitivity: 82 dB 1W/1m
  • Dimensions: 6.5" H x 4.5" W x 5" D

Product Details

BrandParts Express
ModelPassive Aggressive
Part Number300-7148
UPC848864055718
Weight6.41

Product Specifications

Cabinet Dimensions (HxWxD)6.5" x 4.5" x 5"
Cabinet OptionsUnfinished/Unassembled
ColorUnfinished
Configuration2-way
Input Rating4 ohm
Speaker TypeBookshelf
Woofer Diameter3.5"
