NEW PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

PRV Audio
Part #267-8044

NEW PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

PRV Audio
Part #267-8044
Model: MT8SW800 D4

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT8SW800 D4 is a dual voice coil shallow mount subwoofer that offers high quality low-end while only needing a saddlebag or slingshot pod.

Key Features
  • Dual 4 ohm voice coil offers more optionality when wiring to your amplifier
  • A great fit for a saddlebag with a size of only about a cubic foot
  • Weather-resistant to survive getting caught in the rain
  • A mere 4.01" mounting depth means this sub can fit nearly anywhere

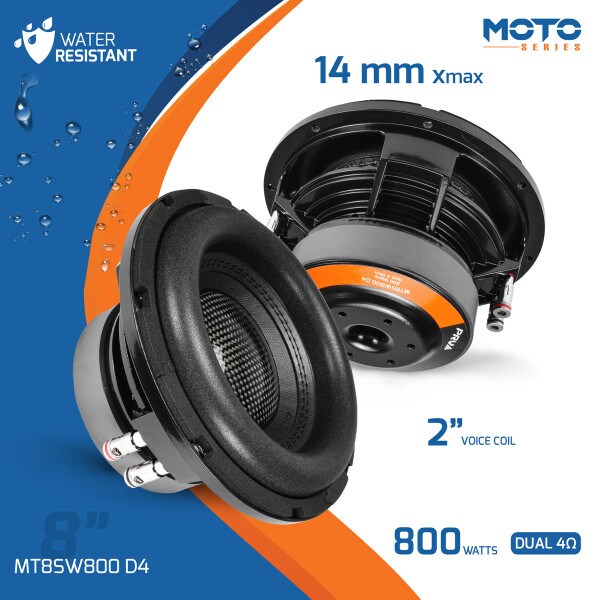

  • 14mm of Xmax offers deep bass reproduction without issue
  • Side Forced Cooling System will keep speaker cool as can be
  • Premium, durable craftmanship to withstand the open road
NEW $129.91
+ FREE SHIPPING
MSRP: $162.39
Save $32.48 (20%)
Bulk Pricing
Order in the next 3 hr 41 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MT8SW800 D4 Moto Series 8" Shallow Subwoofer DVC 4x4 Ohm

The PRV MOTO Series

PRV Audio is excited to introduce their MOTO Series, a high-performance line designed specifically for motorsports installations. This series features the latest innovative materials and components, engineered to withstand weather conditions while delivering top-tier sound quality. These components set a new standard for high output in outdoor applications, making them perfect for upgrading the sound system in your motorcycle, boat, side-by-side, or ATV.

  • Delivers deep, powerful bass on the open road without taking up all your saddlebag space
  • 4-layer high-temperature copper voice coil supports 800 watts RMS program power, producing high acoustic output
  • High-roll U surround with dual-stitched cone attachment allows a generous 14 mm Xmax, enabling deep bass reproduction without compromise
  • Premium-grade spider with woven copper tinsel leads ensures durability and power handling, even at high excursion
  • Side-forced cooling system and vented backplate design improve heat dissipation for better performance

The shallow profile occupies minimal space, making it an excellent fit for any compact enclosure. Compact design is perfect for saddlebags with approximately 1 cubic foot, delivering impressive sound quality.

Recommended Enclosures:

  • Compact Sealed Box: 0.9 cubic feet
  • Compact Ported Box: 1 cubic foot with a 3″ diameter by 6″ long port tube, tuned at 47 Hz
  • Optimal Ported Box: 1.25 cubic feet with a 3″ diameter by 9″ long port tube, tuned at 39 Hz

This subwoofer sets a new standard for low-frequency performance in outdoor applications, making it perfect for enhancing the sound system in your boat, UTV, ATV, boat, or motorcycle. This 8-inch subwoofer produces powerful bass you can truly feel in open environments—not just vibrations.

Explore the PRV MOTO Series

MT6MR400CF-NDY-4 SLIM 6.5" Carbon Fiber Neodymium Midrange Loudspeaker 4 Ohm

MT8MR400CF-NDY-4 SLIM 8" Carbon Fiber Neodymium Midrange Loudspeaker 4 Ohm

MT6MR600CF-NDY-2 6.5" Neodymium Midrange Loudspeaker 2 Ohm

MT6CX580-NDY-4 6.5" Coaxial Loudspeaker

MT8MR600-NDY-4 8" Neodymium Midrange Loudspeaker 4 Ohm

MT10W1200-NDY-4 10" Pro Low Frequency Woofer 4 Ohm

MT8SW800 D4 8" Shallow Subwoofer DVC 4x4 Ohm

MT10SW1000 D4 10" Shallow Subwoofer DVC 4x4 Ohm

MT2.2TWB-4 2.25" Short Horn Black Tweeter 4 Ohm

MT2.2TWC-4 2.25" Short Horn Chrome Tweeter 4 Ohm

MT2.7TWB-4 2.75" Short Horn Chrome Tweeter 4 Ohm

Product Details

BrandPRV Audio
ModelMT8SW800 D4
Part Number267-8044
UPC810075525779
Unit of MeasureEach
Weight9.92

Product Specifications

Nominal Diameter8"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Sensitivity81dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)45.15Hz
DC Resistance (Re)1.7Ω
Voice Coil Inductance (Le)1.18mH
Mechanical Q (Qms)10.35
Electromagnetic Q (Qes)1
Total Q (Qts)0.92
Compliance Equivalent Volume (Vas)0.29ft³
Mechanical Compliance of Suspension (Cms)0.129mm/N
BL Product (BL)6.78T·m
Diaphragm Mass Inc. Airload (Mms)96.23g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)213cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum

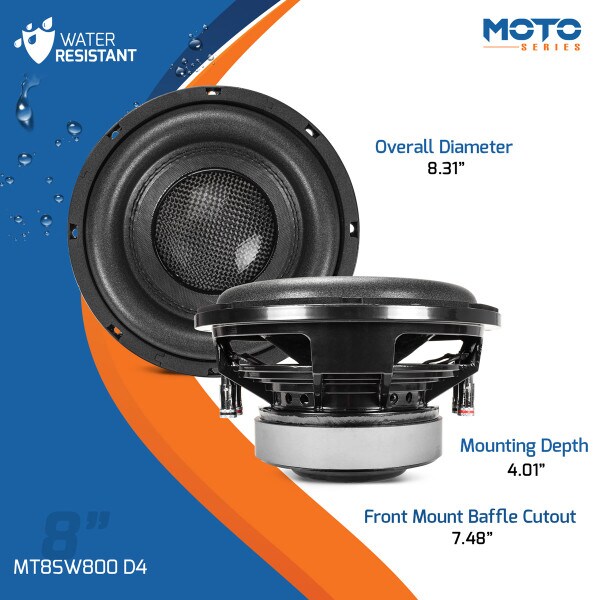

Mounting Information

Overall Outside Diameter8.31"
Baffle Cutout Diameter7.48"
Depth5"
# Mounting Holes4
