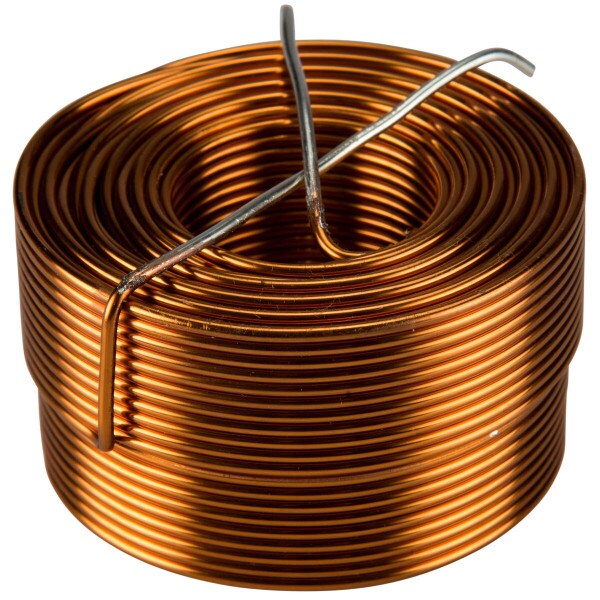

Jantzen Audio 1.0mH 15 AWG Air Core Inductor Crossover Coil

Jantzen Audio
Part #255-422

Jantzen Audio 1.0mH 15 AWG Air Core Inductor Crossover Coil

Jantzen Audio
Part #255-422
The Jantzen Audio 15 gauge air core inductors offer low DCR and top-quality construction. High purity copper wire and a special baking process ensure optimum performance.
Key Features
  • Inductance: 1.00 mH
  • Wire gauge: 15 AWG
  • DCR: .30 ohms
  • Power handling: 500 watts RMS
  • Dimensions: 2.15" Dia x 1.2" H
Similar items that may interest you:
See all items in Air Core Inductor Crossover Coils
Your Price: $22.44
MSRP: $29.99
Save $7.55 (25%)
Bulk Pricing
Quantity:Qty: 1-9 $22.44/ea
Quantity:Qty: 10+$20.57/ea
Ships next business day. Details

9In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 1.0mH 15 AWG Air Core Inductor Crossover Coil

The Jantzen Audio 15 gauge air core inductors offer a lower DCR alternative to the other Jantzen lines. They feature the same quality construction including high-purity copper wire wound to a ± 3% tolerance, and the special Jantzen high-temperature baking process that eliminates the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1898.

Specifications: • Tolerance: ± 3.0% • Inductance: 1.0 mH • Wire gauge: 15 AWG • DC resistance: 0.30 Ohms • Dimensions: 2.15" x 1.20" • Power handling: 500 watts RMS.

Product Details

BrandJantzen Audio
Model000-1898
Part Number255-422
UPC844632025129
Unit of MeasureEach
Weight0.79

Product Specifications

DCR0.3Ω
Inductance1mH
Inductor TypeAir Core
Wire Gauge15
