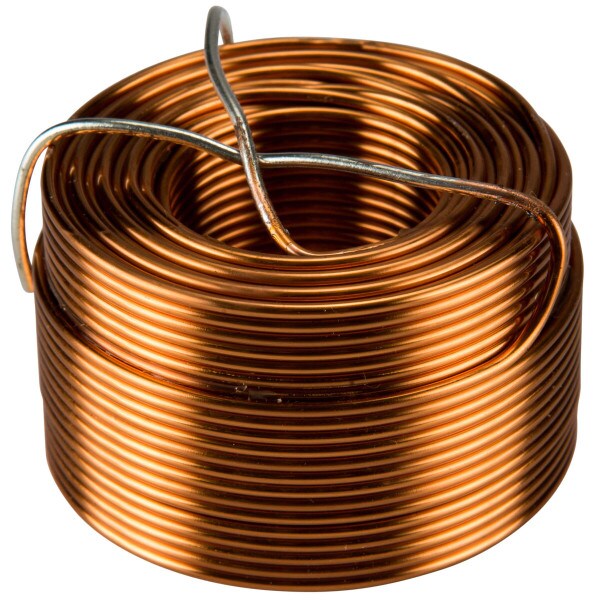

Jantzen Audio 0.82mH 15 AWG Air Core Inductor Crossover Coil

1 Question, 5 Answers or
Jantzen Audio
Part #255-418

Jantzen Audio 0.82mH 15 AWG Air Core Inductor Crossover Coil

Jantzen Audio
Part #255-418
Model: 000-1897
1 Question, 5 Answers or
The Jantzen Audio 15 gauge air core inductors offer low DCR and top-quality construction. High purity copper wire and a special baking process ensure optimum performance.
Key Features
  • Inductance: .82 mH
  • Wire gauge: 15 AWG
  • DCR: .27 ohms
  • Power handling: 500 watts RMS
  • Dimensions: 2.05" Dia x 1.2" H
Your Price: $20.92
MSRP: $31.99
Save $11.07 (35%)
Bulk Pricing
Quantity:Qty: 1-9 $20.92/ea
Quantity:Qty: 10+$18.83/ea
Ships next business day. Details

20In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Jantzen Audio 0.82mH 15 AWG Air Core Inductor Crossover Coil

The Jantzen Audio 15 gauge air core inductors offer a lower DCR alternative to the other Jantzen lines. They feature the same quality construction including high-purity copper wire wound to a ± 3% tolerance, and the special Jantzen high-temperature baking process that eliminates the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1897.

Specifications: • Tolerance: ± 3.0% • Inductance: 0.82 mH • Wire gauge: 15 AWG • DC resistance: 0.27 Ohms • Dimensions: 2.05" x 1.20" • Power handling: 500 watts RMS.

Product Details

BrandJantzen Audio
Model000-1897
Part Number255-418
UPC844632025105
Unit of MeasureEach
Weight0.71

Product Specifications

DCR0.27Ω
Inductance0.82mH
Inductor TypeAir Core
Wire Gauge15

Specifications
