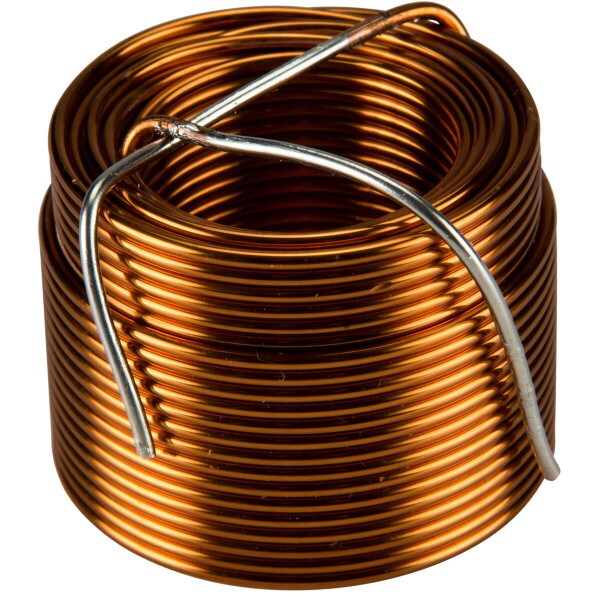

Jantzen Audio 0.25mH 15 AWG Air Core Inductor Crossover Coil
Overview
The Jantzen Audio 15 gauge air core inductors offer a lower DCR alternative to the other Jantzen lines. They feature the same quality construction including high-purity copper wire wound to a ± 3% tolerance, and the special Jantzen high-temperature baking process that eliminates the possibility of FM distortion. The perfect layer air core construction improves heat dissipation while eliminating hysteresis and any type of saturation distortion. Jantzen Audio p/n 000-1155.
Specifications: • Tolerance: ± 3.0% • Inductance: 0.25 mH • Wire gauge: 15 AWG • DC resistance: 0.14 Ohms • Dimensions: 1.65" x 1.20" • Power handling: 500 watts RMS.
