  • Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm

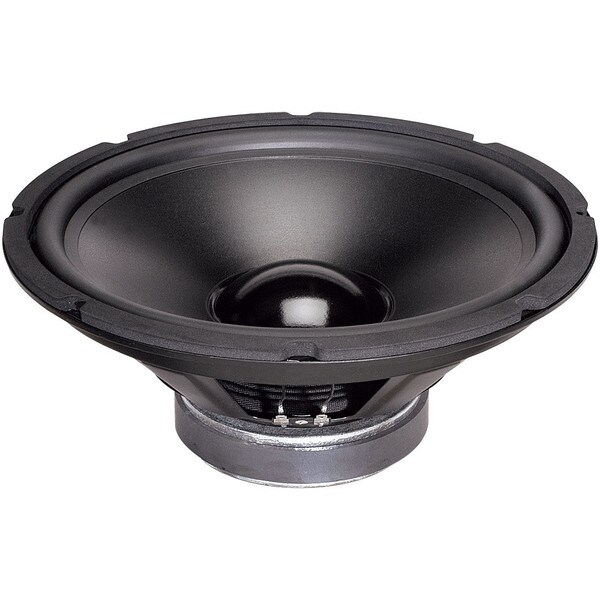

Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm

Read 53 Reviews | 144 Questions, 300 Answers or
Goldwood
Part #290-365

Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm

Goldwood
Part #290-365
Model: GW-1248
Read 53 Reviews | 144 Questions, 300 Answers or
6-1/2 in. 8 ohm6-1/2 in. 4 ohm8 in. 8 ohm8 in. 4 ohm10 in. 8 ohm10 in. 4 ohm12 in. 8 ohm12 in. 4 ohm
These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.
Key Features
  • Perfect replacement woofer for many old acoustic suspension speaker systems
  • With a vented 2" voice coil this driver can handle 150 watts RMS
  • The bumped back plate allows for short periods of over excursion
  • Capable of impressive low frequency response in larger sealed enclosures
See all items in Woofers
Your Price: $68.98
MSRP: $89.99
Save $21.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $68.98/ea
Quantity:Qty: 4-9 $65.53/ea
Quantity:Qty: 10+$62.08/ea
Order in the next 2 hr 43 min to ship today. Details

In Stock

Get Notified When Available

We'll send you an email when Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm is back in stock or available for preorder.
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy
Share
Share

Frequently Bought Together

Frequently Bought Together

$68.98
$15.98
$69.98
$32.98

Total Price: $187.92

This Product:Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm$68.98
Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material$15.98
BassBox Lite Software CD-ROM$69.98

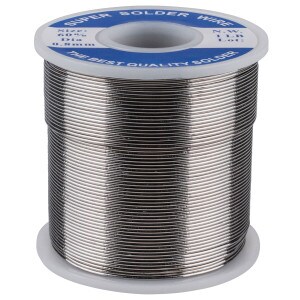

Electronic Solder 60/40 0.8mm (0.031") Diameter 1 lb. Spool$32.98
4 ItemsTotal Price: $187.92

Overview

Goldwood GW-1248 12" Butyl Surround Woofer 8 Ohm

Butyl rubber surrounds are superior to foam in two important ways. First, the butyl rubber resists moisture and will not dry rot, providing years of service. Second, the rubber surround, due to its superior damping characteristics will greatly reduce cone break up and ensure low distortion. These woofers are ideal for replacing and upgrading old, worn out drivers. They all feature a polypropylene cone, vented pole piece, foam gasket, soft poly dust cap, and stamped steel frame.

Product Details

BrandGoldwood
ModelGW-1248
Part Number290-365
UPC643420100341
Unit of MeasureEach
Weight7.8

Product Specifications

Nominal Diameter12"
Power Handling (RMS)150 Watts
Power Handling (MAX)290 Watts
Impedance8Ω
Frequency Response30 to 1,500Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)33.3Hz
DC Resistance (Re)7.1Ω
Voice Coil Inductance (Le)0.6mH
Mechanical Q (Qms)3.3
Electromagnetic Q (Qes)1.3
Total Q (Qts)1
Compliance Equivalent Volume (Vas)3.66ft³
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)10T·m
Diaphragm Mass Inc. Airload (Mms)88.2g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)525.9cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12"
Baffle Cutout Diameter11"
Depth5.1875"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F340.5Hz

Specifications

Q&A

Reviews

Manuals & Resources

  • Goldwood GW-1248 Graph
  • Goldwood GW-1248 Specifications
  • Goldwood Manufacturer Warranty
