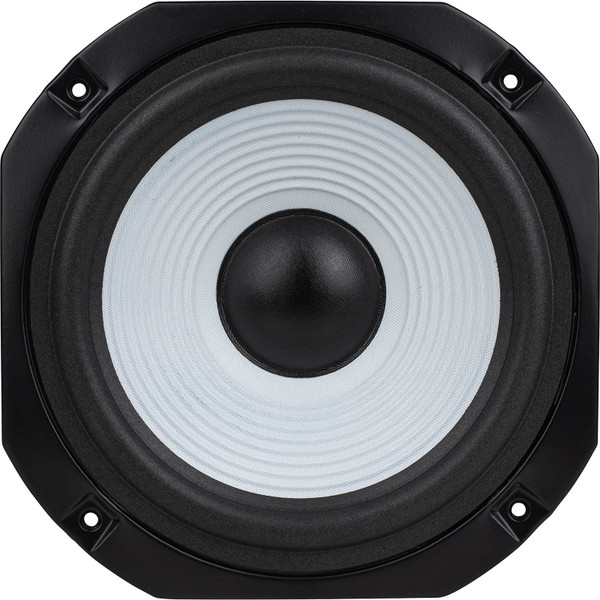

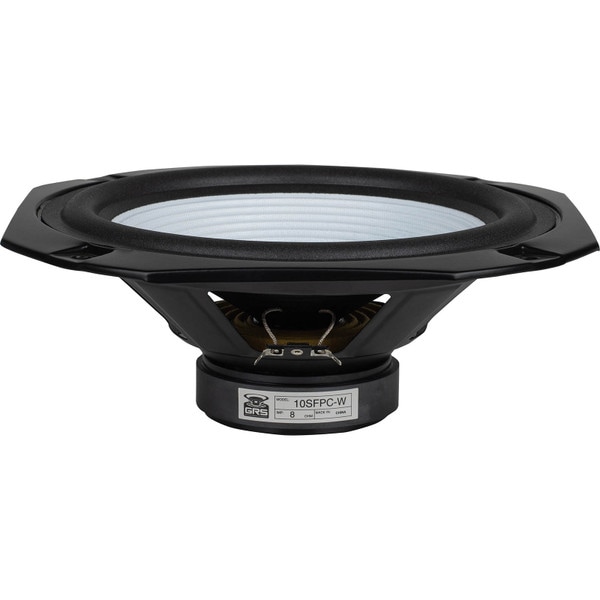

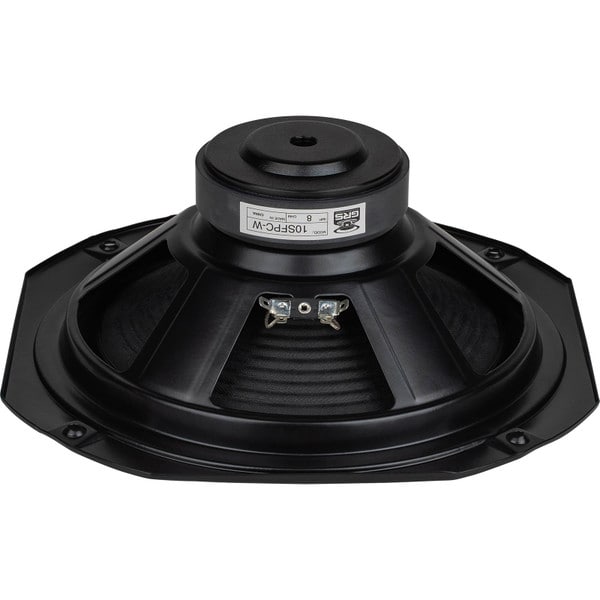

GRS 10SFPC-W 10" Square Frame Paper Cone Woofer White

GRS
Part #290-910

GRS 10SFPC-W 10" Square Frame Paper Cone Woofer White

GRS
Part #290-910
Model: 10SFPC-W
A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts.
Key Features
  • Attractive square stamped steel frame
  • Smooth response and hefty bass output
  • Treated paper cone
  • Foam half roll edge
  • Choice of white or black cone
Similar items that may interest you:
See all items in Woofers
Your Price: $19.98
MSRP: $49.99
Save $30.01 (60%)
Bulk Pricing
Quantity:Qty: 1-3 $19.98/ea
Quantity:Qty: 4+$17.98/ea
Order in the next 13 hr 48 min to ship today. Details

234In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

GRS 10SFPC-W 10" Square Frame Paper Cone Woofer White

A perfect replacement woofer for classic hi-fi loudspeakers! The oversized decorative squared-off frame accommodates a wide variety of OEM driver cutouts. Smooth response and generous Xmax ensure optimum performance, and the use of modern materials and adhesives means your "experienced" speaker system will serve for many more years to come. Also great for DIY projects. Available in white or black cone versions.

Product Details

BrandGRS
Model10SFPC-W
Part Number290-910
UPC844632077388
Unit of MeasureEach
Weight4.6

Product Specifications

Nominal Diameter10"
Power Handling (RMS)75 Watts
Power Handling (MAX)150 Watts
Impedance8Ω
Frequency Response30 to 4,000Hz
Sensitivity88.9dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)34.1Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.68mH
Mechanical Q (Qms)2.92
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.67
Compliance Equivalent Volume (Vas)2.92ft³
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)353.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12, across the flats 10.75"
Baffle Cutout Diameter9.125"
Depth4"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.5ft³
Sealed F343Hz
Vented Volume3ft³
Vented F331Hz
