  • Dayton Audio RSS265HO-4 10" Reference Series HO Subwoofer 4 Ohm

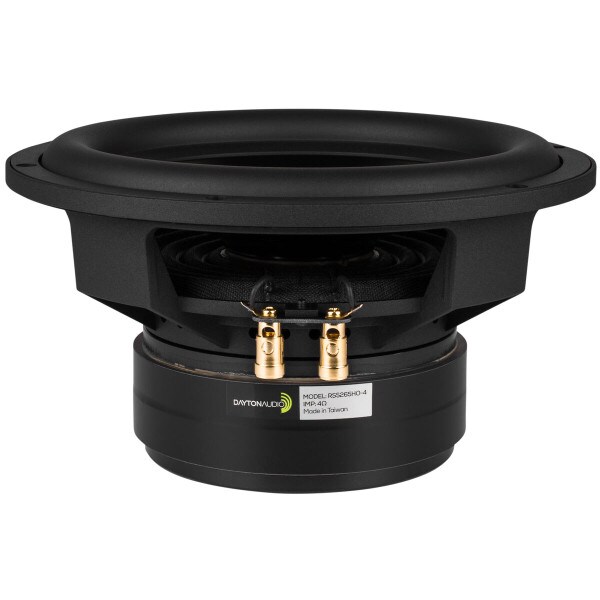

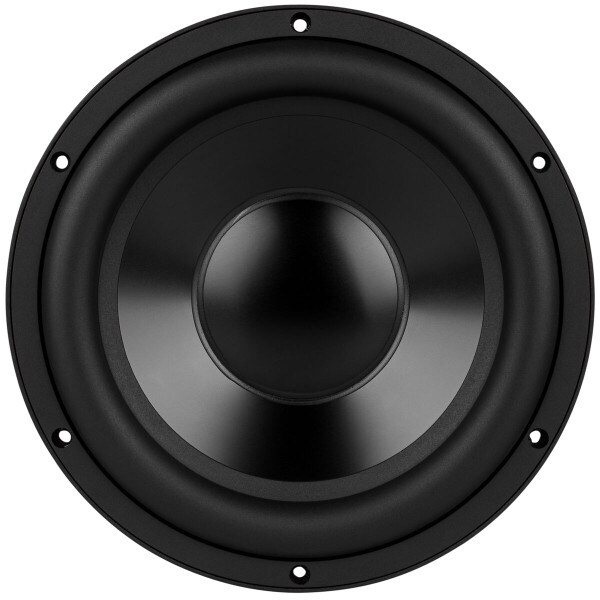

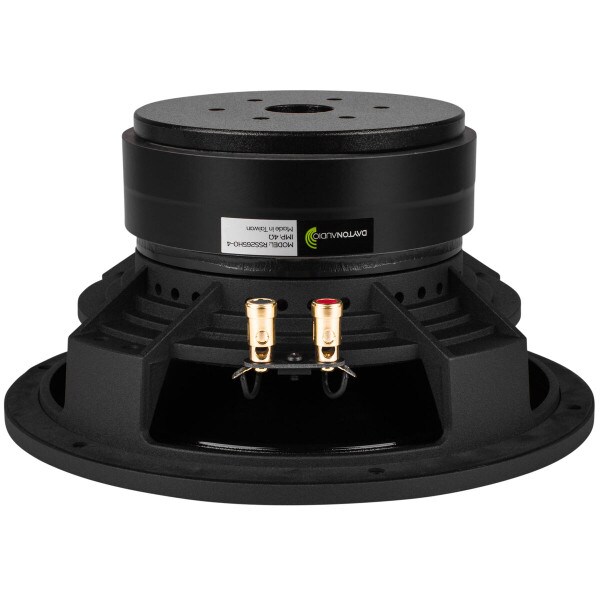

Dayton Audio RSS265HO-4 10" Reference Series HO Subwoofer 4 Ohm

Dayton Audio
Part #295-462

Dayton Audio RSS265HO-4 10" Reference Series HO Subwoofer 4 Ohm

Dayton Audio
Part #295-462
Built for extreme performance in the smallest 10" subwoofer speaker enclosures, the Dayton Audio Reference Series RSS265HO-4 features an anodized aluminum cone, 4-layer voice coil, and optimized distortion-reducing magnet system.
Key Features
  • Extensively vented motor eliminates compression and allows quiet excursion
  • Extra-thick black anodized aluminum cone for maximum rigidity
  • Triple shorting ring motor for ultra-low distortion
  • 4-layer coil for high power handling
  • Optimized parameters for small enclosures
  • Highest quality materials throughout for long-lasting performance
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $189.98
+ FREE SHIPPING
MSRP: $232.99
Save $43.01 (18%)
Bulk Pricing
Quantity:Qty: 1-3 $189.98/ea
Quantity:Qty: 4+$184.28/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RSS265HO-4 10" Reference Series HO Subwoofer 4 Ohm

As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HO-4 10" subwoofer is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this 10" driver a unique, high-end look. Choose the high output version for automotive applications or for equalized high-power home subwoofer speaker systems.

Product Details

BrandDayton Audio
ModelRSS265HO-4
Part Number295-462
UPC844632006920
Unit of MeasureEach
Weight17.1

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance4Ω
Frequency Response24 to 600Hz
Sensitivity87.2dB 2.83V/1m
Voice Coil Diameter2.52"

Thiele-Small Parameters

Resonant Frequency (Fs)26.9Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)1.74mH
Mechanical Q (Qms)4.02
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)1.04ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)17.6T·m
Diaphragm Mass Inc. Airload (Mms)201g
Maximum Linear Excursion (Xmax)12.3mm
Surface Area of Cone (Sd)349.7cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.47"
Baffle Cutout Diameter9.25"
Depth5.37"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.6ft³
Sealed F363Hz
Vented Volume1ft³
Vented F328Hz
